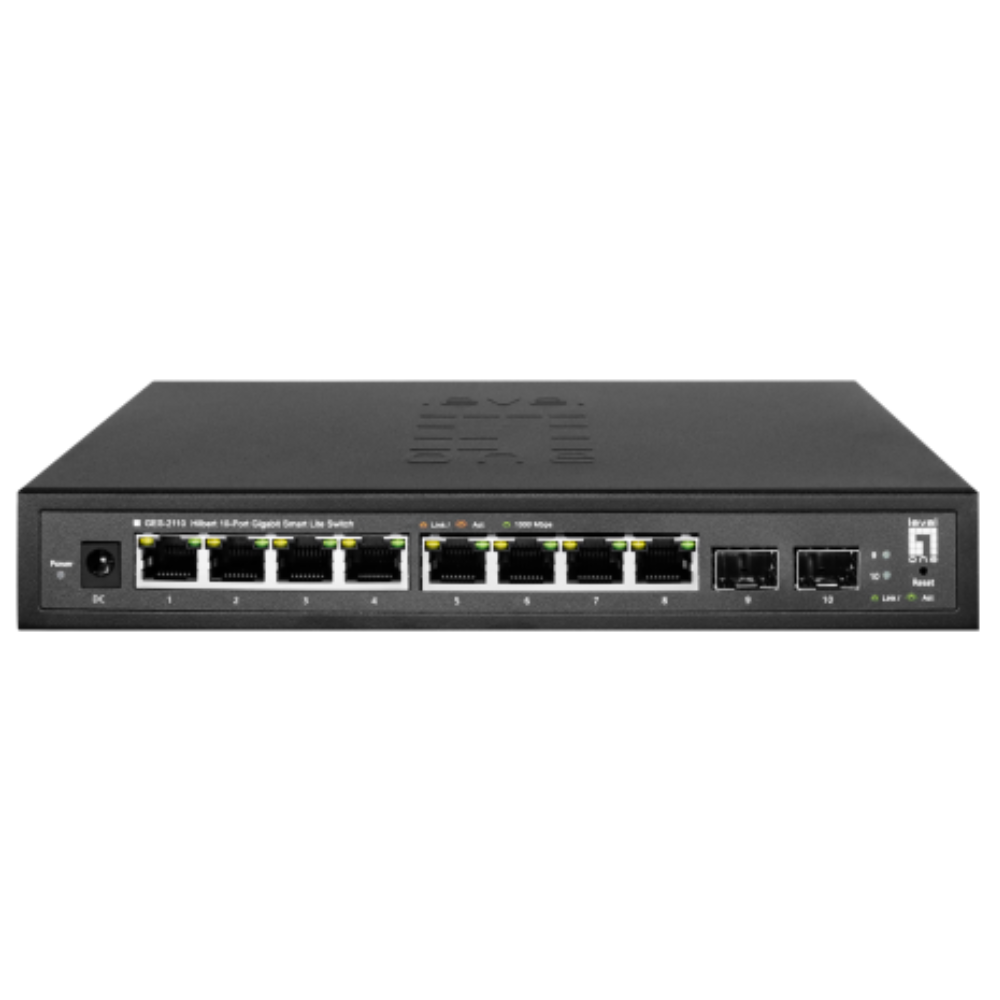

Level One (Germany) 10-Port Gigabit Smart Lite Switch with 2 SFP-GES-2110 (3Y)

Specification

Key Features

• 8 × 10/100/1000Mbps Gigabit RJ45 Ports
• 2 × 100/1000Mbps SFP Slots
• 20Gbps Switching Capacity
• 14.88 Mpps Packet Forwarding Rate
• 8K MAC Address Table
• 9K Jumbo Frame Support
• 1.5Mbit Packet Buffer
• Web-based Smart Lite Management
• IEEE 802.1Q VLAN
• Supports up to 32 VLANs
• MTU / Port-Based / 802.1Q VLAN
• IGMP Snooping V1/V2
• Static Link Aggregation
• Port Mirroring
• Cable Test Function
• IEEE 802.1p QoS
• Port-based and DSCP priority
• 4 Priority Queues
• Rate Limiting
• Unknown Unicast / Broadcast / Multicast Storm Control
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy Efficient Ethernet
• Auto-Negotiation
• Auto-MDI/MDIX
• LevelOne IP Locator Support
• 4kV Surge Protection
• 6kV Contact / 8kV Air ESD Protection
• Fanless Design – 0dB Operation
• Non-PoE Switch

Product Description

The Level One GES-2110 HILBERT 10-Port Gigabit Smart Lite Switch combines high-speed Gigabit Ethernet performance, fibre connectivity and essential Layer 2 management functions in a compact business-class network switch.

It provides 8 × 10/100/1000Mbps Gigabit RJ45 ports for copper Ethernet connections together with 2 × 100/1000Mbps SFP slots for compatible fibre-optic transceivers.

This combination makes the GES-2110 particularly suitable for offices, business networks, surveillance installations and other environments requiring both standard copper Ethernet connections and fibre uplinks.

20Gbps Gigabit Switching Performance

The GES-2110 provides a total switching capacity of 20Gbps with a packet forwarding rate of up to 14.88 million packets per second.

This allows the switch to efficiently handle simultaneous Gigabit network traffic for applications such as:

• Server connectivity
• Network Attached Storage
• Business file transfers
• IP surveillance
• Wireless access point backhaul
• Network backups
• Multimedia traffic
• High-bandwidth office applications

Dual Gigabit SFP Connectivity

The switch includes 2 × SFP slots supporting 100Mbps and 1000Mbps fibre connections.

By installing compatible SFP transceivers, the GES-2110 can provide fibre connectivity for longer-distance network links or connections between different buildings, floors or network cabinets.

The SFP interfaces provide greater deployment flexibility than an RJ45-only desktop switch.

SFP transceiver modules are sold separately and should be selected according to the required fibre type, wavelength and transmission distance.

Smart Lite Web Management

Unlike an unmanaged Ethernet switch, the GES-2110 provides a web-based Graphic User Interface (GUI) for network configuration and monitoring.

The Smart Lite management platform gives administrators access to essential Layer 2 functions without the additional complexity of a fully managed enterprise switch.

The switch also supports LevelOne IP Locator, helping users locate compatible HILBERT switches on the network and identify their IP configuration.

VLAN Network Segmentation

The GES-2110 provides flexible VLAN functionality including:

• IEEE 802.1Q Tagged VLAN
• Port-Based VLAN
• MTU VLAN
• Up to 32 configurable VLANs
• VLAN IDs selected from the standard 4K VLAN ID range

VLANs allow network administrators to logically separate connected devices and user groups while continuing to use the same physical network infrastructure.

Typical applications include separating:

• Office departments
• Guest networks
• IP surveillance equipment
• Servers
• Administration systems
• IoT devices

Quality of Service – QoS

The GES-2110 supports advanced traffic prioritisation through:

• Port-Based Priority
• IEEE 802.1p
• DSCP Priority
• 4 Priority Queues
• Rate Limiting

QoS helps prioritise important or latency-sensitive network traffic such as voice, video and business applications during periods of heavy network usage.

IGMP Snooping

IGMP Snooping V1/V2 helps intelligently manage multicast network traffic.

Instead of forwarding multicast streams to every port, the switch can direct traffic toward ports requiring the multicast stream.

This can improve network efficiency for:

• IPTV
• Video distribution
• IP surveillance
• Multicast-based applications

Static Link Aggregation

The GES-2110 supports static link aggregation, allowing compatible Ethernet connections to be grouped together.

When configured with compatible network equipment, link aggregation can increase aggregate bandwidth between switches, servers or other networking equipment.

Port Mirroring

The built-in Port Mirroring feature allows traffic from selected ports to be duplicated to a monitoring port.

This is useful for:

• Network diagnostics
• Traffic monitoring
• Security analysis
• Troubleshooting

Cable Test Function

The integrated Cable Test function assists network administrators in diagnosing Ethernet cable and connection issues directly through the management interface.

This can simplify network installation and troubleshooting.

Storm Control

The GES-2110 provides traffic storm control for:

• Unknown Unicast
• Broadcast
• Multicast

Storm control helps prevent excessive network traffic from consuming available bandwidth and negatively affecting other connected devices.

9K Jumbo Frames

Support for 9K jumbo frames improves efficiency when transferring large amounts of data between compatible Gigabit devices.

This is beneficial for applications including:

• NAS storage
• Server transfers
• Network backups
• Large multimedia files
• Business data transfers

8K MAC Address Table

The switch supports an 8K MAC address table with automatic MAC address learning and aging.

This allows the GES-2110 to efficiently identify connected devices and forward Ethernet traffic toward the correct network port.

Energy Efficient Ethernet

Support for IEEE 802.3az Energy Efficient Ethernet helps reduce unnecessary energy consumption according to network traffic and connection status.

The switch has a maximum listed power consumption of approximately 10W, making it suitable for continuous network operation.

Enhanced Electrical Protection

For improved reliability in commercial networking environments, the GES-2110 features:

• 4kV Surge Protection
• 6kV Contact ESD Protection
• 8kV Air ESD Protection

Silent Fanless Operation

The GES-2110 operates without an internal cooling fan, providing completely silent 0dB(A) operation.

The fanless design makes it suitable for offices, meeting rooms, workspaces and other environments where low noise is preferred.

Network Standards

• IEEE 802.3 – 10BASE-T Ethernet
• IEEE 802.3u – 100BASE-TX Fast Ethernet
• IEEE 802.3ab – 1000BASE-T Gigabit Ethernet
• IEEE 802.3z – 1000BASE-X Gigabit Ethernet
• IEEE 802.3x – Full-Duplex Flow Control
• IEEE 802.3az – Energy Efficient Ethernet
• IEEE 802.1Q – VLAN
• IEEE 802.1p – QoS Traffic Priority

Ideal For

The Level One GES-2110 is suitable for:

• Small and medium business networks
• Office network infrastructure
• Fibre uplink connections
• Network cabinet interconnection
• IP surveillance systems
• Servers and NAS storage
• Wireless access points
• Network printers
• Desktop computers
• Guest network segmentation
• IPTV and multicast applications
• Network monitoring
• Business network expansion
• Copper-to-fibre network integration

Package Contents

• 1 × Level One GES-2110 HILBERT Smart Lite Switch
• 1 × Power Adapter
• 1 × Quick Installation Guide
• 1 × Declaration of Conformity

Important Note

The GES-2110 is a non-PoE network switch and does not supply electrical power through its RJ45 ports.

For PoE applications, do not confuse the GES-2110 with the separate GES-2110P PoE model.

The two SFP interfaces require compatible SFP transceiver modules, which are selected separately according to the fibre network requirements
