Specifications
| Copper port | 1 × 10/100/1000BASE-T RJ45, auto MDI/MDI-X |
|---|---|
| Fiber interface | 1 × 1000BASE-X SFP slot; range and fiber type depend on separately selected transceiver |
| PoE output | IEEE 802.3af/at, up to 30 W on RJ45 |
| Jumbo frames | 9 KB |
| Forwarding | Store and forward |
| Management | Unmanaged |
| Power input | 52 V DC, 1.25 A; 65 W adapter included |
| Consumption | 33 W at full PoE load |
| Dimensions | 71 × 94 × 26 mm |
| Product weight | 0.182 kg |
| Operating environment | 0–40 °C; 5–90% RH |
| Mounting | Desktop |
| Included | Converter, adapter with power cord, quick installation guide, declaration of conformity |
| Optional | Compatible SFP transceiver, selected for the intended optical link |
Key Features
- Choose a compatible SFP optic to match the fiber type and required distance.
- Supply an IEEE 802.3af/at device with up to 30 W through the copper port.
- Connect copper Gigabit equipment with auto MDI/MDI-X support.
- Carry larger network frames through 9 KB jumbo-frame support.
- Use the supplied power adapter for a straightforward desktop installation.
Product Information

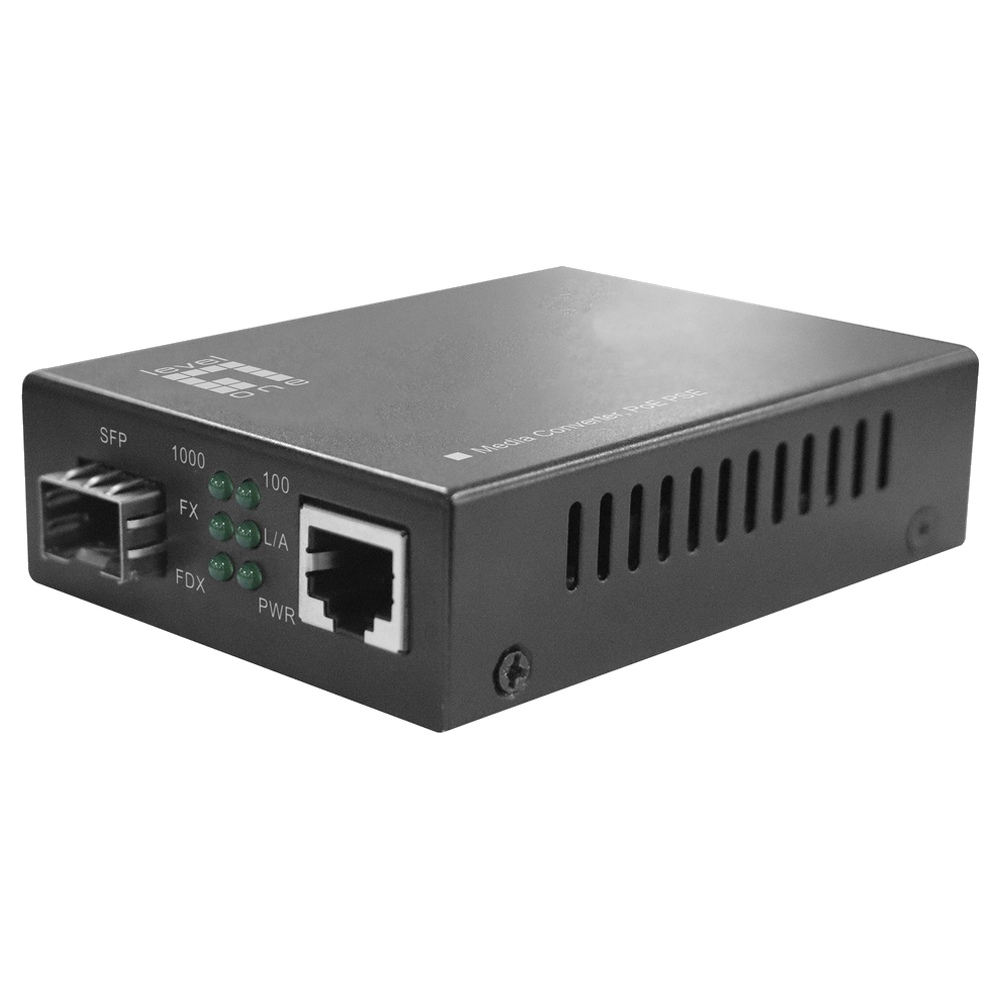

The converter bridges a Gigabit copper connection and a Gigabit SFP fiber interface, with PoE+ output on the RJ45 side for compatible devices. Select the SFP transceiver separately to match the fiber, wavelength and distance at the far end; no optic is specified in the included package. The included adapter powers the unmanaged unit.
