Specifications
| Copper port | 1 × 10/100/1000BASE-T RJ45, auto MDI/MDI-X |
|---|---|
| Fiber port | 1 × 1000BASE-LX SC single-mode, 1310 nm, up to 20 km |
| PoE output | IEEE 802.3af/at, up to 30 W on RJ45 |
| Jumbo frames | 9 KB |
| Forwarding | Store and forward |
| Management | Unmanaged |
| Power input | 52 V DC, 1.25 A; 65 W adapter included |
| Consumption | 33 W at full PoE load |
| Dimensions | 71 × 94 × 26 mm |
| Product weight | 0.182 kg |
| Operating environment | 0–45 °C; 5–90% RH |
| Mounting | Desktop |
| Included | Converter, adapter with power cord, quick installation guide, declaration of conformity |
Key Features
- Extend a Gigabit link over single-mode fiber up to 20 km with the SC interface.
- Supply an IEEE 802.3af/at endpoint with up to 30 W through the copper port.
- Connect Gigabit copper equipment without manual crossover cabling.
- Pass larger frames with 9 KB jumbo-frame support.
- Place the compact converter on a desk with the supplied power adapter.

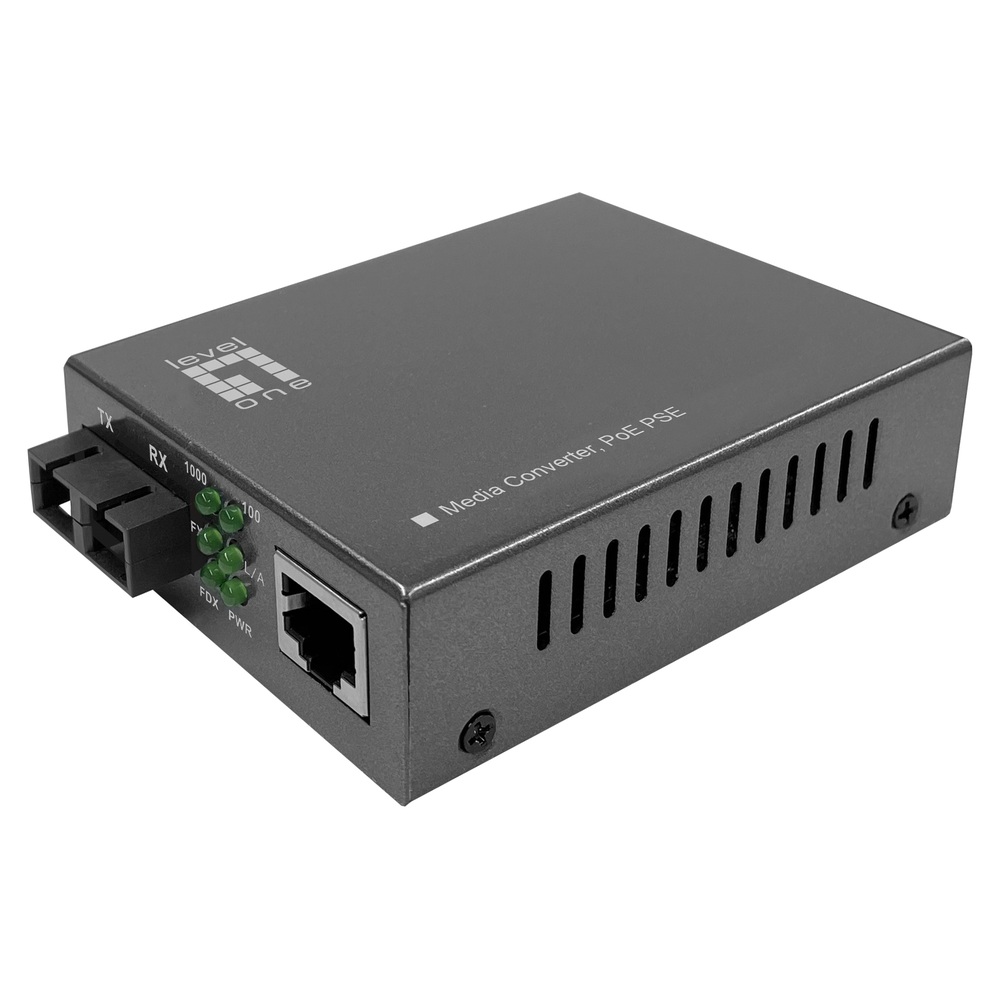

Product Information
This converter links a copper Gigabit Ethernet device to an SC single-mode fiber run while providing PoE+ power on its RJ45 port. The 20 km reach depends on suitable fiber and the matching optical link. The included external adapter powers the converter; the 30 W figure is the maximum PoE output budget, not a guarantee of endpoint compatibility. It is an unmanaged desktop unit.
