Specifications
| Brand | Level One |
|---|---|
| Brand headquarters | Germany |
| Model | GES-2118 |
| Series | HILBERT |
| Product type | Layer 2 Smart Lite managed Gigabit Ethernet switch |
| Copper ports | 16 × 10/100/1000 Mbps RJ45 |
| SFP slots | 2 × 100/1000 Mbps SFP |
| Total concurrent ports | 18 |
| PoE | Not supported |
| Switching capacity | 36 Gbps |
| Forwarding rate | 26.784 Mpps |
| MAC address table | 8K entries; automatic learning and aging |
| Jumbo frames | 9K |
| Packet buffer | 4.1 Mbits |
| Flash memory | 2 MB |
| VLAN | Up to 32 VLANs from 4K VLAN IDs; MTU, port-based and IEEE 802.1Q VLAN |
| QoS | Port-based, IEEE 802.1p and DSCP priority; 4 priority queues; rate limiting |
| Multicast | IGMP snooping V1/V2 |
| Traffic control | Unknown unicast, broadcast and multicast storm control |
| Layer 2 tools | Static link aggregation, port mirroring and cable test |
| Management | Web-based GUI; LevelOne IP Locator |
| Energy efficiency | IEEE 802.3az Energy Efficient Ethernet |
| Ethernet standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z and 802.3x |
| Input power | 100–240 V AC, 50–60 Hz |
| Power consumption | 15 W |
| Heat dissipation | 51.18 BTU/h |
| Cooling | Fanless; specified acoustic noise 0 dB(A) |
| Protection | 4 kV surge; 6 kV contact / 8 kV air ESD |
| Indicators | Power, System, Link/Act |
| Mounting | Desktop or 19-inch rack with included mounting kit |
| Colour | Black |
| Dimensions (W × D × H) | 271 × 181.5 × 44.5 mm |
| Product weight | 1.08 kg |
| Operating temperature | 0°C to 45°C |
| Storage temperature | −40°C to 70°C |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 95% RH |
| MTBF | 43,800 hours |
| Compliance | CE, UKCA, FCC Part 15 Subpart B Class B, RoHS |
| Package contents | GES-2118 switch, power cord, 19-inch rack mounting kit, quick installation guide and declaration of conformity |
| Warranty | 3 YEARS WARRANTY |
Key Features
- Connect more devices: 16 Gigabit RJ45 ports serve wired equipment, while two SFP slots provide flexible fibre uplinks using compatible modules.
- Organise your network: separate departments and device groups with VLANs and prioritise voice or video using four QoS queues.
- Keep shared traffic efficient: 36 Gbps switching capacity, 9K jumbo frames and IGMP snooping support busy local networks and multicast applications.
- Configure and troubleshoot easily: use the web interface, LevelOne IP Locator, port mirroring and cable-test functions for everyday administration.
- Install quietly and neatly: fanless cooling suits workspaces, while the supplied rack kit and energy-efficient Ethernet support practical business deployment.
Product Information

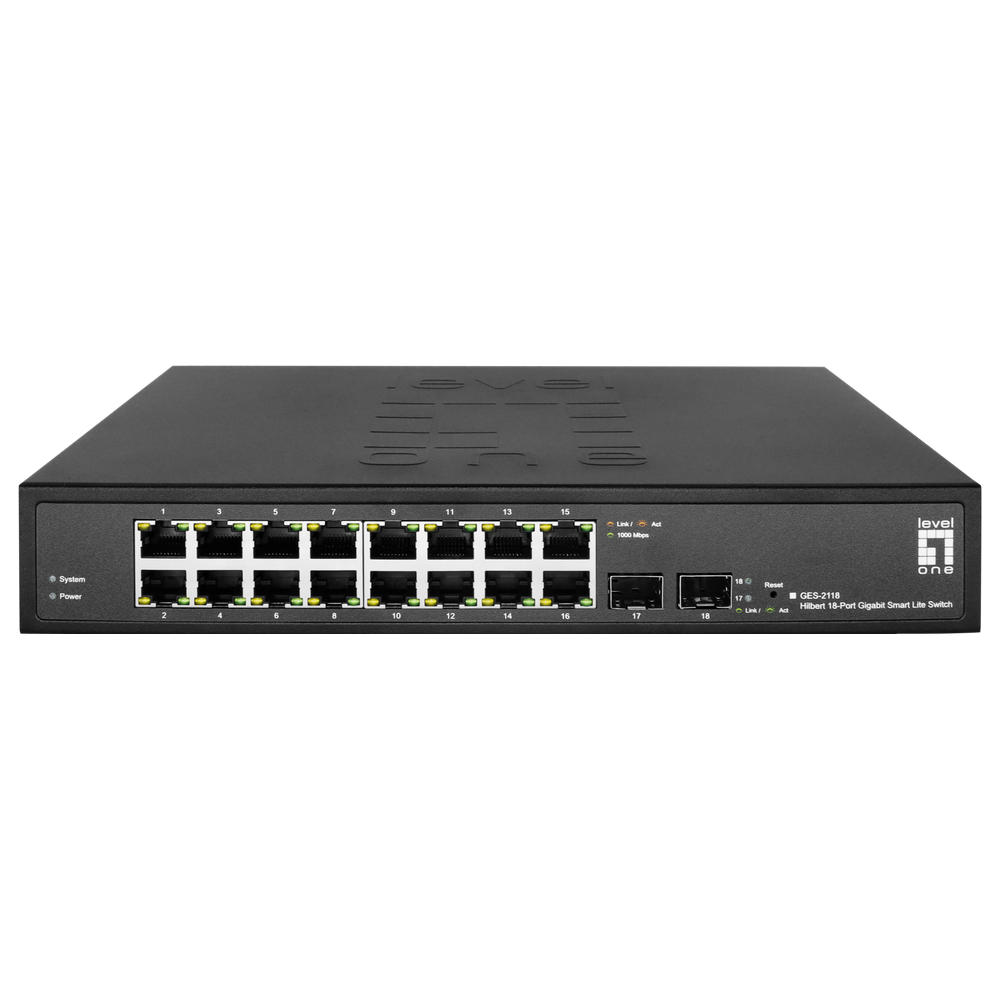

The Level One GES-2118 is a Gigabit Smart Lite managed switch for offices, retail premises, classrooms and business network expansion. Its 16 copper Ethernet ports connect computers, printers, network storage and other wired devices, while two SFP slots provide uplink flexibility when used with compatible transceivers. The switch supports desktop placement or installation in a 19-inch rack using the supplied mounting kit.
For businesses moving beyond an unmanaged switch, the web interface provides useful control over network organisation and traffic handling. VLANs let administrators separate device groups, QoS helps give time-sensitive traffic appropriate priority, and IGMP snooping controls multicast forwarding. Static link aggregation, port mirroring and cable testing add practical tools for configuration and troubleshooting.
Fanless cooling makes the unit suitable for occupied rooms where fan noise would be distracting. IEEE 802.3az Energy Efficient Ethernet helps reduce consumption during quieter network periods, while surge and ESD protection add resilience. The GES-2118 does not supply PoE power: connected phones, cameras or access points must use their own power supplies or suitable PoE injectors. SFP modules are not listed in the supplied package and should be selected separately for the required connection.
Choose this model when you need 16 Gigabit copper connections, dedicated SFP uplinks and straightforward Layer 2 management. Richcom supplies this listing with 3 years warranty.
Complete your network connections
Match cable performance to the installation and check the exact switch interfaces before choosing accessories.
