Specifications
| Brand headquarters / origin | Level One / Germany |
|---|---|
| Model | POR-1222 |
| Documented hardware revision | 3 (current manufacturer listing) |
| Color | Silver |
| Dimensions (W x D x H) | 200 x 270 x 70 mm |
| Indicators | Power, PoE In, PoE Out 1 |
| Mount | Pole mount |
| Pin assignment and polarity | 1/2 (+), 3/6 (-) |
| Port Configuration | RJ45 |
| Operating humidity | 5% RH ~ 95% RH |
| Operating temperature | 0°C ~ 50°C |
| Package Contents | POR-1222 Mounting Kit Quick Installation Guide |
| Enclosure | IP66 |
| PoE standards | IEEE 802.3af/at |
| Maximum added cable segment | 100m; subject to cable and power budget |
| Net product weight | 1.08 kg |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Extend a compatible PoE link to a more distant installation.
- Protect the repeater with its documented IP66 enclosure.
- Draw operating power from the upstream PoE connection.
- Use the mounting kit for a suitable pole installation.
- Support remote powered equipment within the available PoE budget.
Product Information

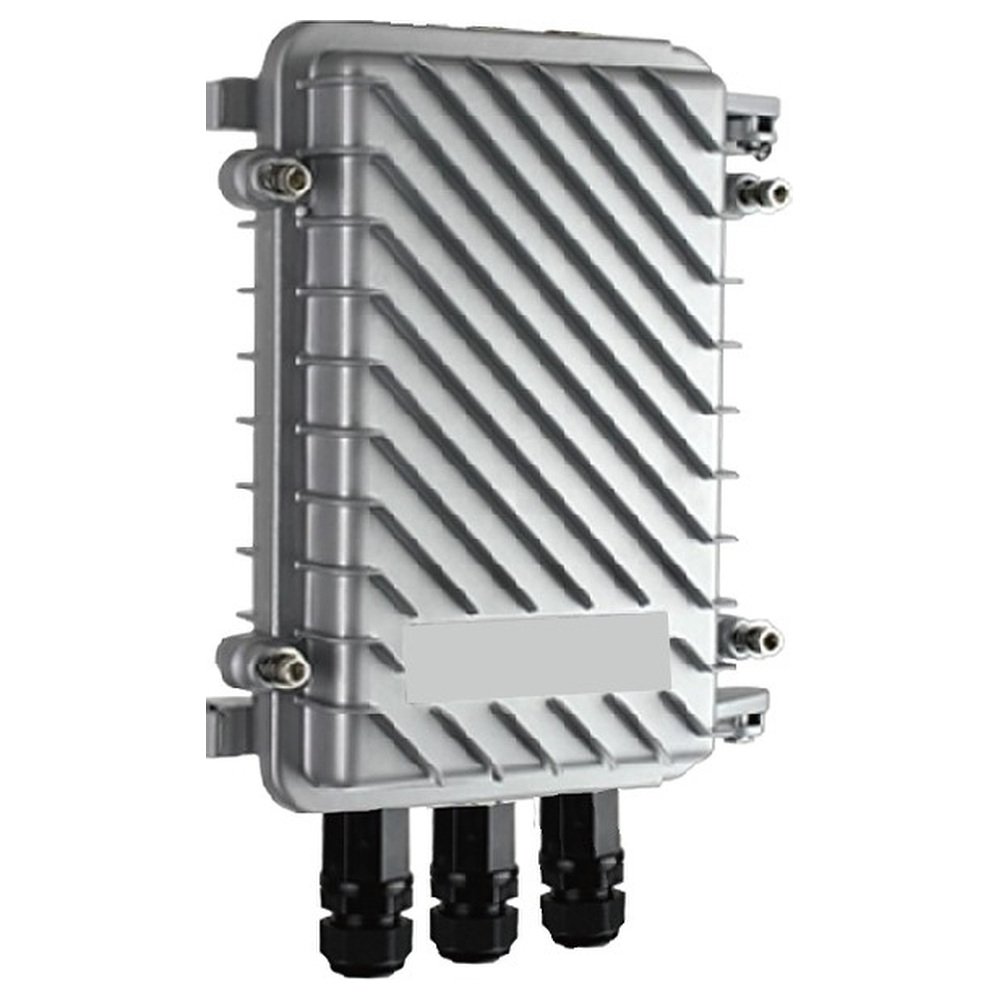

POR-1222 is an outdoor PoE repeater for extending a compatible Ethernet-and-power connection. Its weather-resistant enclosure and pole-mount arrangement suit remote camera or access-point cabling when the installation follows the sealing and grounding requirements. The manufacturer lists an additional 100m Ethernet segment and IEEE 802.3af/at support.
The power available at the far end depends on the upstream source, cable losses and connected load; do not treat the upstream PoE rating as guaranteed output power. The current official page disagrees with its technical table about Ethernet speed and cascading, and the linked guide gives its distance/power examples for POR-1100 rather than this exact model. Those disputed speed and cascading claims are omitted pending exact-revision confirmation.
