Specifications
| Specification | Details |
|---|---|
| Brand | Molex |
| Brand origin / headquarters | USA |
| Model | AFOUN012OS2 |
| Supplier item number | 36503 |
| Fibre count | 12 |
| Fibre type | Single Mode |
| Nominal fibre size | 9/125 µm |
| Intended environment | Outdoor |
| Outer jacket | PE |

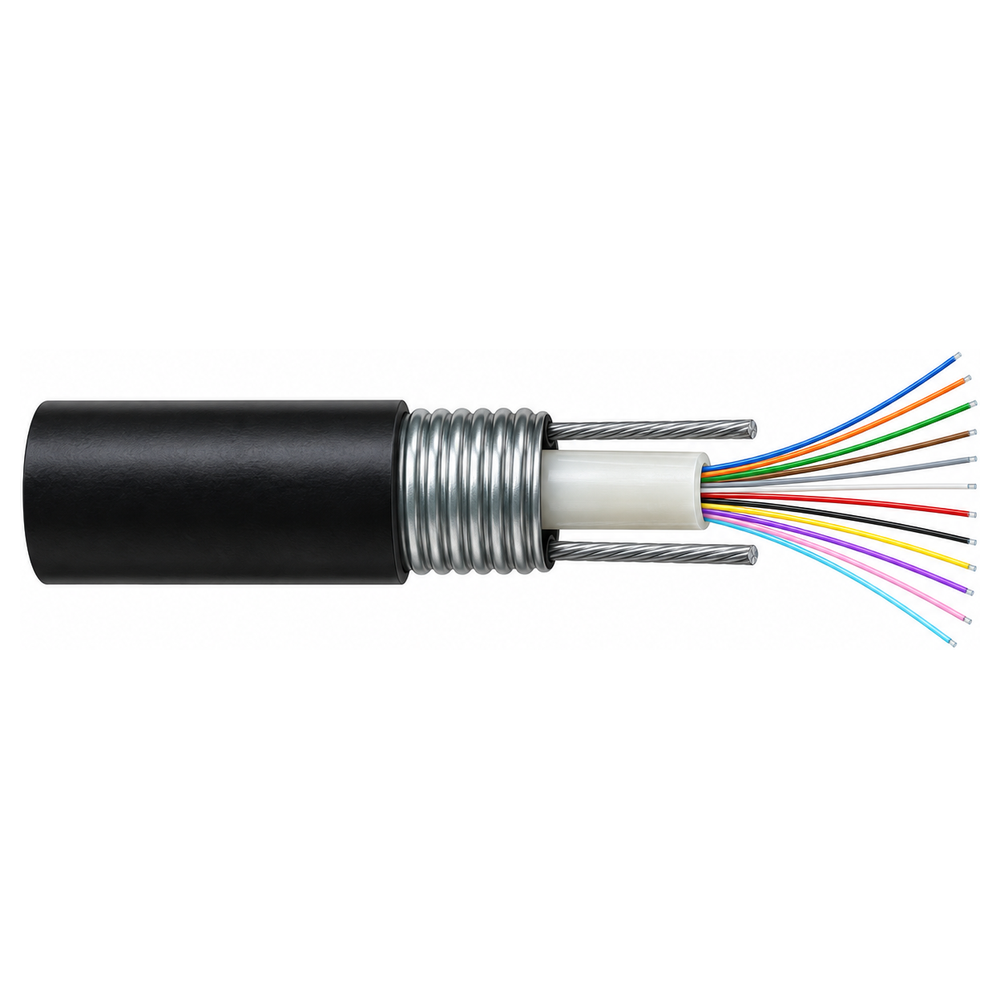

| Cable construction | Water-blocked central PBT loose tube; corrugated steel tape armour; two peripheral steel wires |
| Outer sheath | Black UV-stabilised HDPE, nominal 2.0 mm thickness |
| Overall diameter | 9 mm nominal |
| Nominal cable mass | 80 kg/km |
| Loose tube outer / inner diameter | 3.0 / 2.0 mm nominal |
| Peripheral steel wire diameter | 0.9 mm |
| Short-term tensile strength | 1500 N |
| Short-term crush resistance | 2000 N / 10 cm |
| Minimum bend radius (installation / full load) | 20 × D / 10 × D |
| Water blocking | Thixotropic gel in tube; petroleum jelly in interstices |
| Ripcord | Polyester yarn beneath armour |
| Maximum attenuation | 0.35 dB/km at 1310 nm; 0.22 dB/km at 1550 nm |
| Numerical aperture | 0.14 |
| Single-mode fibre standard | ITU-T G.652D |
Key Features
- 12 optical fibres: provides separate fibre paths for a structured cabling installation.
- Single Mode compatibility: choose matching 9/125 µm termination components and optical equipment.
- PE outer sheath: covers the cable assembly for its specified outdoor application.
- Armoured construction: adds mechanical protection around the optical fibre assembly.
- Application-specific selection: match the fibre count, optical grade and environment to the intended link.
Product Information
The Molex AFOUN012OS2 is a 12-fibre single mode cable for outdoor optical cabling. Its 9/125 µm fibre format should be matched to compatible pigtails, connectors and transceivers. Fibre count describes the individual optical paths inside the cable; it does not represent a choice of cable lengths.
The armoured construction is intended for outdoor cable routing where the optical assembly needs added physical protection. Select ducts, supports and termination enclosures to suit the installation. Armour alone does not establish suitability for every direct-burial or self-supporting aerial application.
This listing is for bulk cable. Pre-fitted connectors, optical modules, patch panels and installation hardware are not listed as included. Link speed and usable distance depend on the complete optical link, including the transceivers, terminations, splices and loss budget.
Delivery: Island wide Ultra Delivery.
