Molex (USA) 6C Outdoor Multimode OM3 50/125 Armoured Fiber Optic Cable PE - AFOUN006OM3 price in srilanka

Key features

6

Fibre count

Multimode OM3

Fibre mode

50/125 µm

Fibre size

Outdoor

Environment

Molex (USA) 6C Outdoor Multimode OM3 50/125 Armoured Fiber Optic Cable PE – AFOUN006OM3

The Molex (USA) AFOUN006OM3 is a 6-core outdoor fibre optic cable with Multimode OM3 50/125 µm fibres and a PE outer jacket. Its armoured construction supports outdoor optical cabling; select compatible termination components and optical equipment for the intended link.

රු 1,800.00

Need help completing your online order?We’re here to help you, step by step.

Not sure what to do next? Whether you need help choosing the right product, entering your delivery details or completing payment, our team is ready to help. Follow the steps below, or message us on WhatsApp and tell us where you’re stuck.

  1. Choose & add to cartCheck the model, specifications and warranty. Choose your options and quantity, then select Add to cart.
  2. Review your cartCheck items and quantities. Select Update cart after changes, then Proceed to checkout.
  3. Enter your detailsAdd your name, full address, town/city, postcode, phone and email. Untick Ship to a different address? if delivery is to your billing address.
  4. Review & payCheck delivery charges and your final total. Select Direct Pay, choose Place order and follow the payment instructions.
  5. Save your confirmationReturn to Richcom after payment. Keep your order number and check your confirmation email, including spam or junk. We will WhatsApp you the courier tracking code after your order has been dispatched.

Payment: Visa, MasterCard, Amex, Frimi, Ipay and Lanka-QR are listed via DirectPay. Options may vary on the payment screen. Cash on Delivery is not available.

If payment was deducted but confirmation is missing, contact us before retrying. Need installation? Use the separate appointment option on eligible products; fixing charges may apply.

Show me the checkout screens

These are real Richcom checkout screenshots, shown in black and white for easy reading and printing. Your product and total will be different.

1. Review your cartCheck your totals, then choose Proceed to checkout.
Real Richcom cart screen for online checkout
2. Add your delivery detailsComplete the required fields. Untick Ship to a different address? if we should deliver to your billing address.
Real Richcom billing screen for online checkout
3. Review and start paymentReview the total, then select Place order and follow DirectPay.
Real Richcom payment screen for online checkout
Download PDF guideHelp me complete my order

Specifications

Specification Details
Brand Molex
Brand origin / headquarters USA
Model AFOUN006OM3
Supplier item number 36511
Fibre count 6
Fibre type Multimode OM3
Nominal fibre size 50/125 µm
Intended environment Outdoor
Outer jacket PE

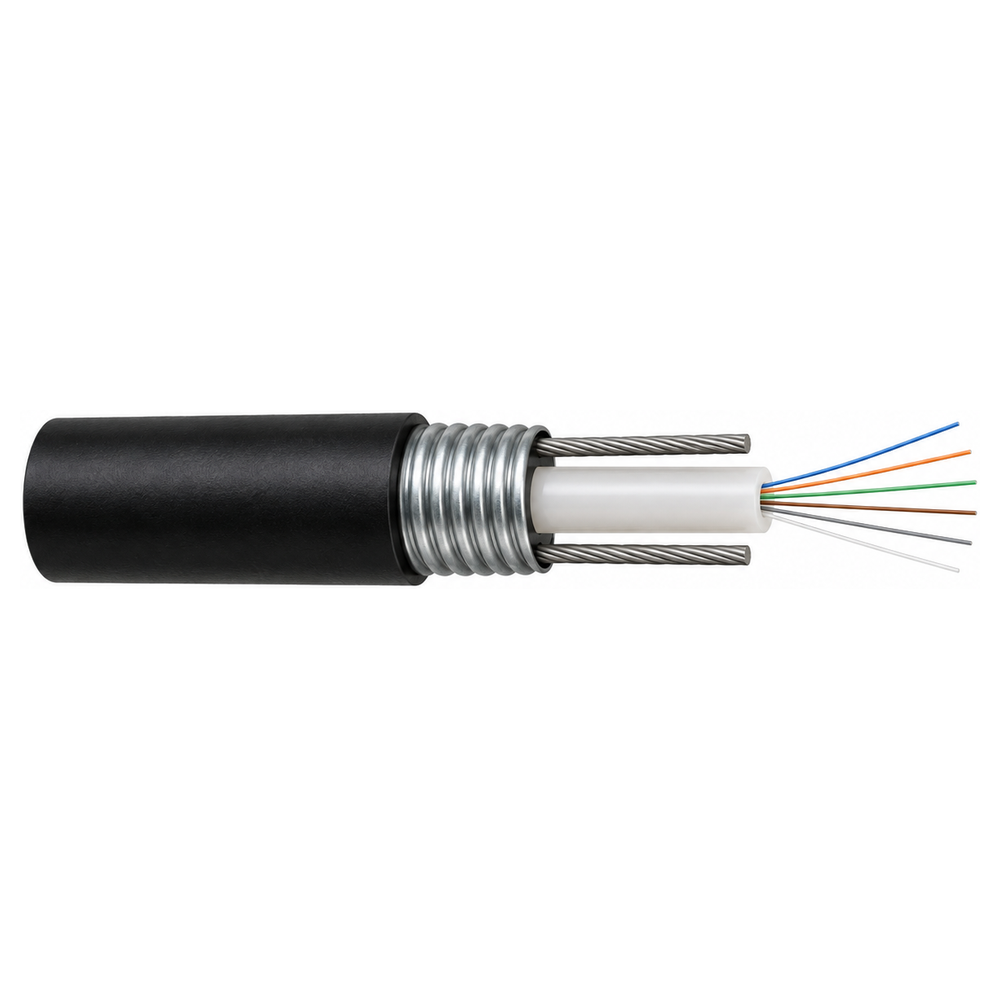

Cable construction Water-blocked central PBT loose tube; corrugated steel tape armour; two peripheral steel wires
Outer sheath Black UV-stabilised HDPE, nominal 2.0 mm thickness
Overall diameter 9 mm nominal
Nominal cable mass 80 kg/km
Loose tube outer / inner diameter 3.0 / 2.0 mm nominal
Peripheral steel wire diameter 0.9 mm
Short-term tensile strength 1500 N
Short-term crush resistance 2000 N / 10 cm
Minimum bend radius (installation / full load) 20 × D / 10 × D
Water blocking Thixotropic gel in tube; petroleum jelly in interstices
Ripcord Polyester yarn beneath armour
Maximum attenuation 3.0 dB/km at 850 nm; 1.0 dB/km at 1300 nm
Numerical aperture 0.2

Key Features

  • 6 optical fibres: provides separate fibre paths for a structured cabling installation.
  • Multimode OM3 compatibility: choose matching 50/125 µm termination components and optical equipment.
  • PE outer sheath: covers the cable assembly for its specified outdoor application.
  • Armoured construction: adds mechanical protection around the optical fibre assembly.
  • Application-specific selection: match the fibre count, optical grade and environment to the intended link.

Product Information

The Molex AFOUN006OM3 is a 6-fibre multimode om3 cable for outdoor optical cabling. Its 50/125 µm fibre format should be matched to compatible pigtails, connectors and transceivers. Fibre count describes the individual optical paths inside the cable; it does not represent a choice of cable lengths.

The armoured construction is intended for outdoor cable routing where the optical assembly needs added physical protection. Select ducts, supports and termination enclosures to suit the installation. Armour alone does not establish suitability for every direct-burial or self-supporting aerial application.

This listing is for bulk cable. Pre-fitted connectors, optical modules, patch panels and installation hardware are not listed as included. Link speed and usable distance depend on the complete optical link, including the transceivers, terminations, splices and loss budget.

Delivery: Island wide Ultra Delivery.

Explore The Definitive Guide to Fiber Optic Cables in Sri Lanka: Powering the Nation’s Digital Backbone.

Weight 0.1 kg
