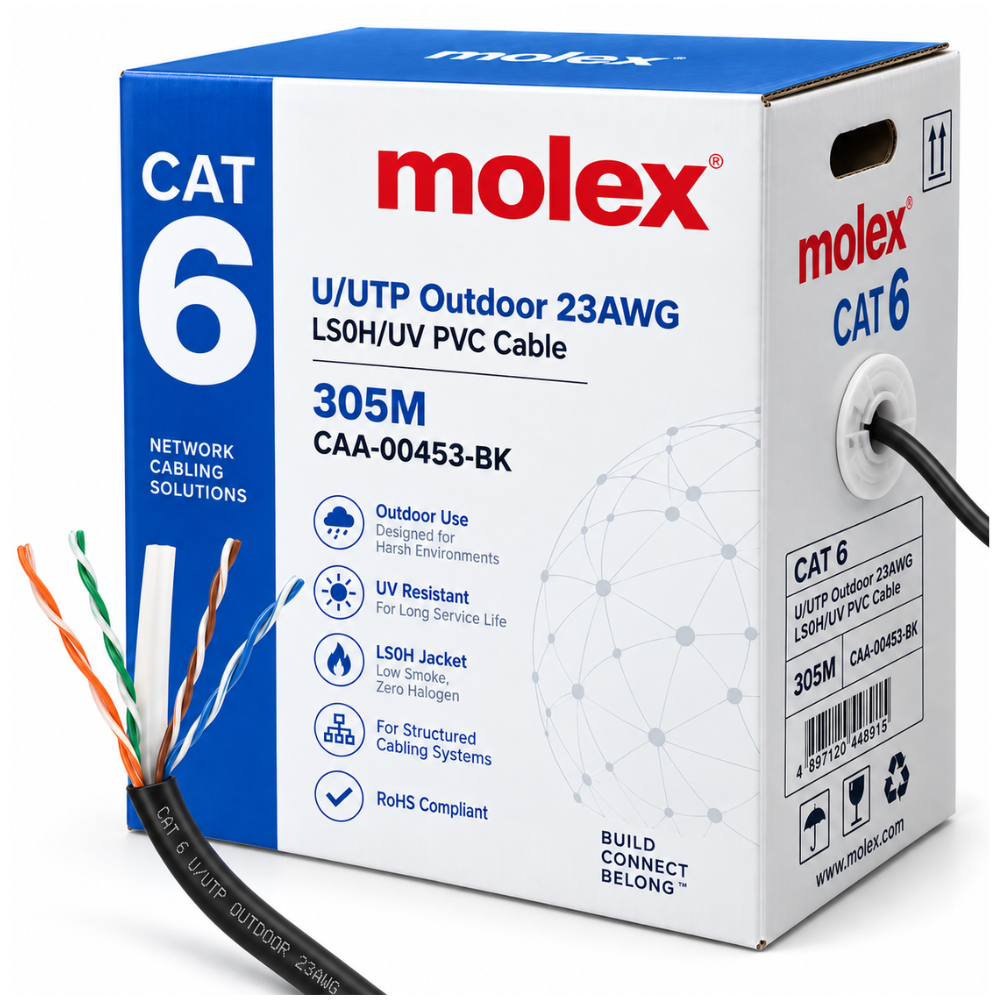

Technical Specifications
| Specification | Details |
|---|---|
| Brand | Molex |
| Product Range | PowerCat 6 |
| Part Number | CAA-00453-BK |
| SAP Number | 181740190 |
| Product Type | Outdoor Network Cable |
| Cable Category | Category 6 |
| Cable Construction | U/UTP |
| Number of Pairs | 4 Pair |
| Conductor Type | Solid Bare Annealed Copper |
| Conductor Size | 23AWG / 0.55 mm |
| Primary Insulation | Solid Polyolefin |
| Inner Sheath | LS0H |
| Outer Sheath | Heavy-Duty UV-Resistant PVC |
| Outer Jacket Colour | Black |
| Cable Length | 305 Metres |
| Nominal Overall Diameter | 7.3 ± 0.3 mm |
| Inner Sheath Thickness | 0.55 mm |
| Outer Sheath Thickness | 0.65 mm |
| Operating Temperature | -40°C to +75°C |
| NVP | 69% |
| Maximum Pulling Force | 100 N |
| Tensile Strength | 11.5 kg |
| UV Resistant | Yes |
| Outdoor Use | Yes |
| Commercial Standards | ANSI/TIA/EIA-568-C.2, ISO/IEC 11801, IEC 61156-5 |
Key Features
- Original Molex PowerCat 6 outdoor cable
- Category 6 U/UTP construction
- 4 Pair 23AWG solid copper
- 305-metre cable length
- LS0H protective inner sheath
- Heavy-duty UV-resistant PVC outer jacket
- Black outer jacket for outdoor applications
- Resistant to sunlight and outdoor weather exposure
- Suitable for installations exposed to rain
- Designed to withstand mild mechanical abuse
- Wide operating temperature range of -40°C to +75°C
- Category 6 compliant
- Suitable for professional structured cabling installations
Recommended Applications
Ideal for outdoor LAN cabling, IP CCTV installations, building exterior network cabling, outdoor wireless access points, commercial premises, factories, warehouses, campuses, security networks and other structured cabling applications requiring additional environmental protection.
Cable Construction
23AWG Solid Copper Conductors
↓
Solid Polyolefin Insulation
↓
4 Pair U/UTP Construction
↓
LS0H Inner Sheath
↓
Heavy-Duty UV-Resistant Black PVC Outer Jacket
