Specifications
| Brand headquarters / origin | ORing / Taiwan |
|---|---|
| Model | IGPS-C1042GP |
| 10/100/1000Base-T(X) ports in RJ45 | 4 |
| 100/1000Base-X with SFP port | 2 |
| Power Indicator (Power) | Green: Power LED x2 |
| 10/100/1000Base-T(X) RJ45 port indicator | Upper LED for Link/Act indicator: Green for port Link/Act Lower LED for POE indicator: Green for POE output |
| 100/1000Base-X SFP Port Indicator | Green for port Link/Act |
| Power consumption (Typ.) | Less than 6W typical, excluding PoE output (matching October 2023 datasheet) |
| Redundant Input power | Dual 48~57VDC on 4-pin terminal block |
| Overload current protection | Present |
| Enclosure | IP-40 Metal |
| Dimensions (mm) | 28(W) x 88(D) x 130(H)mm |
| Weight (g) | 426 g |
| Ethernet Standards | IEEE 802.3 for 10Base-TIEEE 802.3u for 100Base-TX and 100Base-FXIEEE 802.3ab for 1000Base-TIEEE 802.3z for 1000Base-XEEE 802.3x for Flow controlIEEE 802.3af/at PoE specification |
| MAC Table | 4K |
| Processing | Store-and-Forward |
| Switch Properties | Switching latency: 9 µsSwitching bandwidth: 12Gbps |
| Jumbo frame | 9K Bytes |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Operating Humidity | 5% to 95% Non-condensing |
| EMC | CE EMC (EN 55035, EN 55032), FCC Part 15B |
| EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A |
| EMS | EN 55035 (IEC/EN 61000-4-2(ESD), IEC/EN 61000-4-3(RS), IEC/EN 61000-4-4(EFT), IEC/EN 61000-4-5(Surge), IEC/EN 61000-4-6(CS), IEC/EN 61000-4-8(PFMF) |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-31 |
| Vibration | IEC60068-2-6 |
| Safety | EN 62368-1 (LVD) |
| Management | Unmanaged |
| PoE budget | 120W total; up to 30W per port; IEEE 802.3af/at |
| Included | Switch, DIN-rail kit and quick installation guide |
| Optional | Compatible 100Mbps/1Gbps SFP modules and DIN-rail power supply |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Power four compatible PoE+ endpoints through Gigabit copper ports.
- Use two dual-speed SFP slots for fiber uplinks.
- Plan device loads within the 120W total PoE budget.
- Support a dual 48–57V DC power arrangement.
- Mount the compact IP40 metal enclosure on a DIN rail.
Product Information

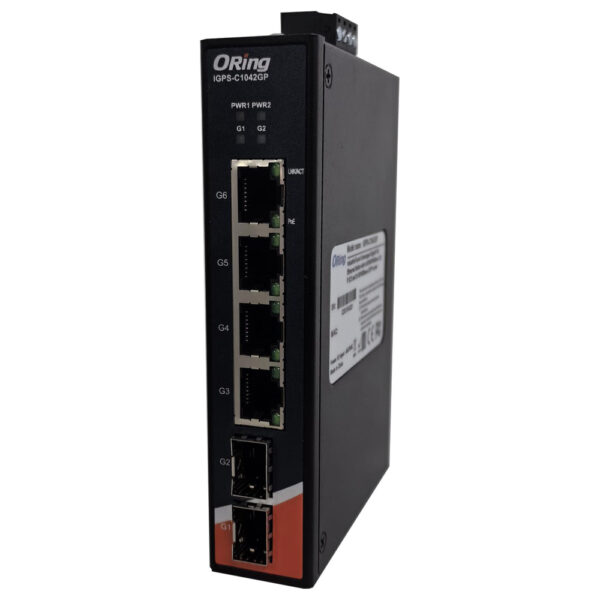

IGPS-C1042GP distributes data and PoE power to four compatible Ethernet devices and provides two SFP uplinks. Its unmanaged design needs no software configuration for basic switching. The 12Gbps switching bandwidth, 4K MAC table and 9K jumbo-frame support serve industrial Gigabit links.
A correctly rated external 48–57V DC supply must support the switch and its connected loads. Each PSE port allows up to 30W within the total 120W budget, with less power reaching the endpoint after cable loss. Choose optical modules and a power supply separately. The matching datasheet lists less than 6W typical switch consumption excluding delivered PoE power.
