Specifications
| Brand headquarters / origin | PLANET / Taiwan |
|---|---|
| Model | WGS-818HP |
| Network Connector | 8-Port RJ45 for 10/100/1000BASE-T |
| PoE Inject Port | 8-Port with 802.3at PoE+ injector function (Port-1 to Port-8) |
| Switch Architecture | Store and forward |
| MAC Address Table | 4K MAC address table with auto learning function |
| Switch Fabric | 16Gbps / non-blocking |
| Switch Throughput | 11.9Mpps@64Bytes |
| Jumbo Frame | 9Kbytes |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| LED Indicators | Power LED: Power ( Green ) PoE Power Usage LED: 30W, 60W, 90W, 120W ( Amber ) PoE Port: PoE-in-Use ( Amber ) LNK/ACT ( Green ) |
| ESD Protection | 4KV DC |
| DIP Switch | Selectable operation modes: ■ Standard: IEEE 802.3at PoE+ transmission distance of 100m ■ VLAN: Port-based VLAN ■ Extend: 25-watt PoE transmission distance of 250m at speed of 10Mbps |
| Connector | DC power jack with 2.0mm central pole |
| Power Requirements | 48~56V DC, 3A (max.) |
| Power Consumption | 137 watts / 467BTU |
| Enclosure | IP30 metal |
| Dimensions (W x D x H) | 148 x 24.2 x 134 mm |
| Weight | 474g |
| Installation | Fixed wall mounting, magnetic wall mounting and DIN-rail mounting |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | IEEE 802.3af Standard – Per port 48V~56V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard – Per port 50V~56V DC (depending on the power supply), max. 30 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 120 watts (depending on power input) |
| Max. Number of Class 2 PDs | 8 |
| Max. Number of Class 3 PDs | 8 |
| Max. Number of Class 4 PDs | 4 |
| Standard Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet plus |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (Free fall) IEC 60068-2-27 (Shock) IEC 60068-2-6 (Vibration) |
| Operating | Temperature: -20 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -20 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Management | Unmanaged; hardware mode selection |
| Included power adapter | 54V DC, 2.4A, as listed for WGS-818HP in the matching manual |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Connect and power compatible devices through eight PoE+ ports.
- Fit shallow wall installations with the flat enclosure.
- Choose Standard, port-isolation VLAN or Extend mode by DIP switch.
- Monitor total PoE use through the dedicated indicators.
- Use the documented 120W total budget for a planned mix of devices.
Product Information

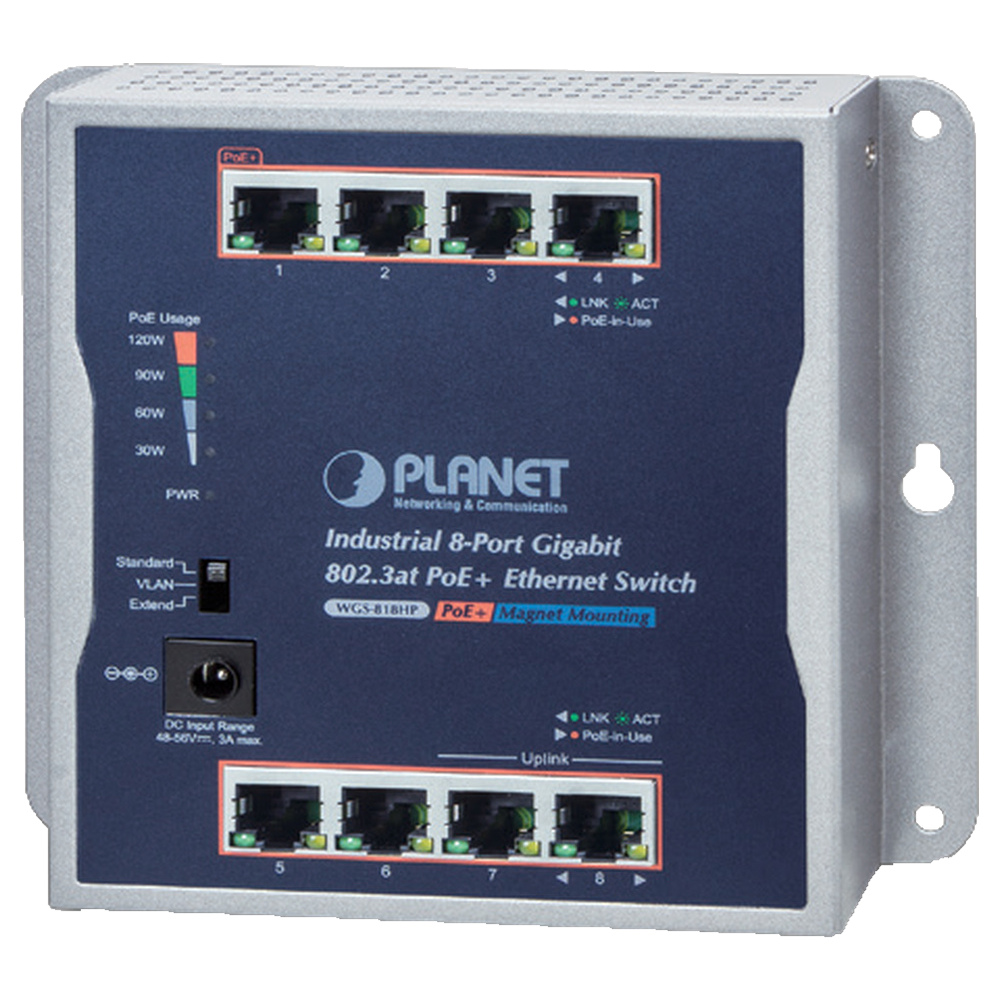

WGS-818HP combines a flat wall-mount enclosure with eight Gigabit PoE+ ports. It is useful for local camera or access-point distribution where cabinet depth is limited. Each port supports up to 30W, with a total maximum budget of 120W depending on the input supply; eight devices cannot all draw 30W simultaneously.
The DIP switch selects normal operation, port-based VLAN separation or extended transmission. Extend mode trades speed for distance, supporting up to 250m at 10Mbps and the documented reduced power. The matching manual lists a 54V, 2.4A adapter for WGS-818HP. The switch remains unmanaged; its hardware VLAN mode does not provide a configurable managed VLAN interface.
