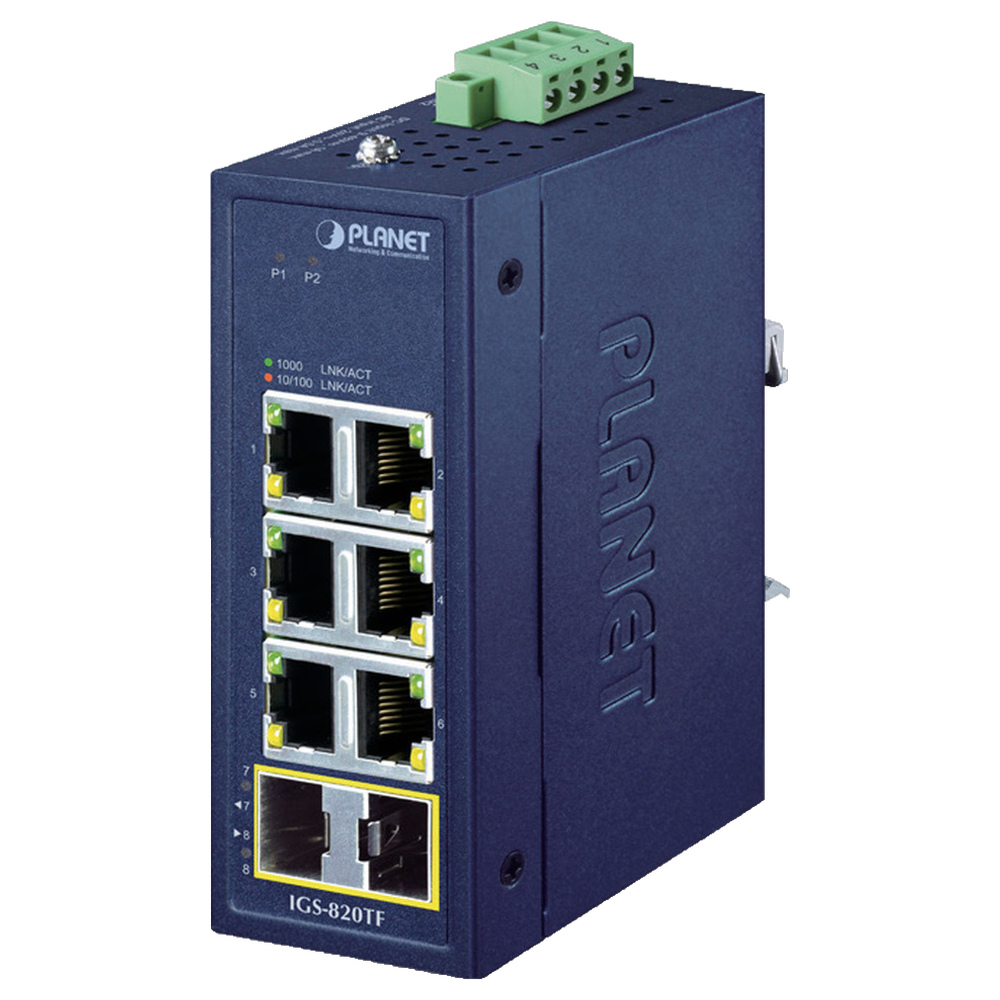

PLANET (Taiwan) 8-Port Industrial Unmanaged Gigabit Switch with 2 SFP Slots – IGS-820TF (3Y)

The PLANET (Taiwan) IGS-820TF is a 8-port industrial unmanaged gigabit switch with 2 sfp slots featuring 6 × 10/100/1000Mbps RJ45 ports and 2 × 100/1000BASE-X SFP slots. It delivers 16Gbps switching capacity, with 4K MAC entries, 4M-bit buffer, 9K jumbo frames, IEEE 802.1p, flow control and redundant power.

3 YEARS WARRANTY

රු 118,500.00

Optional 1Gbps SFP Transceivers

Product price:රු 118,500.00
Total options:
Order total:
Need help completing your online order?We’re here to help you, step by step.

Not sure what to do next? Whether you need help choosing the right product, entering your delivery details or completing payment, our team is ready to help. Follow the steps below, or message us on WhatsApp and tell us where you’re stuck.

  1. Choose & add to cartCheck the model, specifications and warranty. Choose your options and quantity, then select Add to cart.
  2. Review your cartCheck items and quantities. Select Update cart after changes, then Proceed to checkout.
  3. Enter your detailsAdd your name, full address, town/city, postcode, phone and email. Untick Ship to a different address? if delivery is to your billing address.
  4. Review & payCheck delivery charges and your final total. Select Direct Pay, choose Place order and follow the payment instructions.
  5. Save your confirmationReturn to Richcom after payment. Keep your order number and check your confirmation email, including spam or junk. We will WhatsApp you the courier tracking code after your order has been dispatched.

Payment: Visa, MasterCard, Amex, Frimi, Ipay and Lanka-QR are listed via DirectPay. Options may vary on the payment screen. Cash on Delivery is not available.

If payment was deducted but confirmation is missing, contact us before retrying. Need installation? Use the separate appointment option on eligible products; fixing charges may apply.

Show me the checkout screens

These are real Richcom checkout screenshots, shown in black and white for easy reading and printing. Your product and total will be different.

1. Review your cartCheck your totals, then choose Proceed to checkout.
Real Richcom cart screen for online checkout
2. Add your delivery detailsComplete the required fields. Untick Ship to a different address? if we should deliver to your billing address.
Real Richcom billing screen for online checkout
3. Review and start paymentReview the total, then select Place order and follow DirectPay.
Real Richcom payment screen for online checkout

Specifications

Brand headquarters / originPLANET / Taiwan
ModelIGS-820TF
Copper Ports6 x 10/100/1000BASE-T RJ45 TP auto-MDI/MDI-X, auto negotiation ports (Ports 1 to 6)
SFP Slots2 x 1000BASE-X SFP interfaces (Ports 7 to 8) Backward compatible with 100BASE-FX transceiver
ConnectorRemovable 4-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for Power 2
ESD Protection6KV
EFT Protection6KV
Power Requirements9~48V DC redundant power with polarity reverse protection function, 24V AC power support
Power Consumption / DissipationSystem on: Max. 1.44 watts/4.9BTU Ethernet Full Loading: Max. 2.88 watts/9.8BTU
InstallationDIN-rail kit and wall-mount ear
EnclosureIP30 metal case
Dimensions (W x D x H)41 x 70 x 115 mm
Weight345g
LED2 x LED for system and power: Green : Power 1 Green : Power 2 2 x LED for each port: 10/100/1000T RJ45 Ports: Green : 1000Mbps LNK/ACT Amber :10/100Mbps LNK/ACT 100/1000BASE-X SFP Interfaces: Green : 1000Mbps LNK/ACT Amber : 100Mbps LNK/ACT
Switch Processing SchemeStore-and-Forward
Address Table4K entries
Buffer Memory4M bits on-chip buffer memory
Flow ControlBack pressure for half duplex IEEE 802.3x pause frame for full duplex
Switch Fabric16Gbps
Throughput (packet per second)11.9Mpps@64bytes
Jumbo Frame9Kbytes
Network Cables10/100/1000BASE-T Cat. 3, 4, 5, 5e, 6 UTP cable (max. 100 meters) EIA/TIA-568 100-ohm STP (max. 100 meters)
Standards ComplianceIEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service
Regulatory ComplianceFCC Part 15 Class A, CE
Stability TestingIEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
TemperatureOperating: -40~75 degrees C Storage: -40~75 degrees C
HumidityOperating: 5~90%, Storage: 5~90% (non-condensing)
ManagementUnmanaged
PoENo PoE output
IncludedSwitch, QR manual sheet, DIN-rail kit, wall-mount kit, six RJ45 dust caps and two SFP dust caps
OptionalCompatible SFP modules and external power supply
Store warranty3 YEARS WARRANTY

Key Features

  • Connect six copper Gigabit devices with two flexible fiber uplinks.
  • Choose 100Mbps or Gigabit SFP modules to suit the fiber link.
  • Support dual power inputs for supply redundancy.
  • Fit a compact IP30 industrial cabinet installation.
  • Operate across the documented −40–75°C temperature range.

Product Information

IGS-820TF provides six auto-negotiating copper ports and two dual-speed SFP slots for an industrial Ethernet network. The unmanaged design starts forwarding without a management configuration, making it suitable for cabinet distribution where advanced VLAN or routing control is supplied elsewhere.

Choose 100BASE-FX or 1000BASE-X transceivers supported by the slots and match the far-end optics. SFP modules and an external power source are separate items. The input accepts 9–48V DC or 24V AC, with redundant DC inputs and reverse-polarity protection. This model does not supply PoE to connected devices.

Weight0.345 kg
