| Specification | Details |
|---|

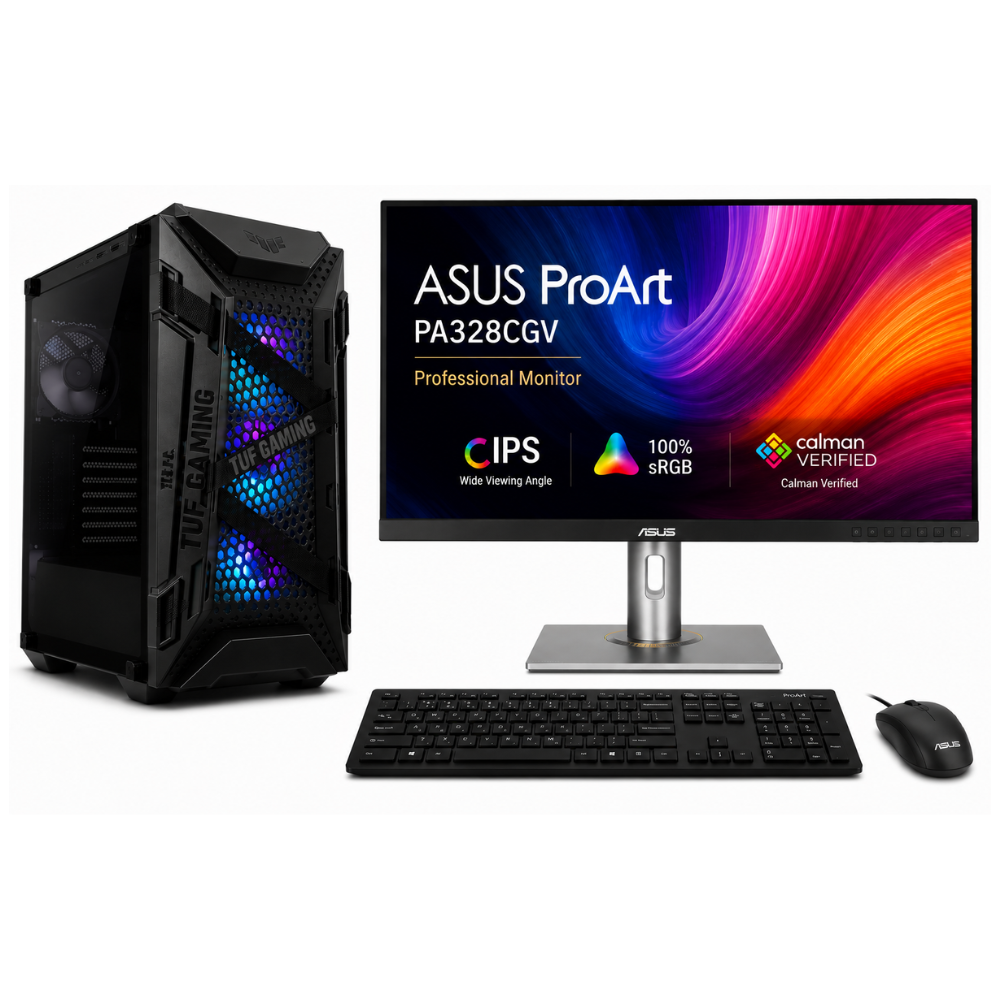

| Product Name | Studio Video Editing Desktop PC |
| Processor | Intel Core Ultra 9 285K Desktop Processor |
| Processor Full Model | Intel Core Ultra 9 285K, 36M Cache, up to 5.70GHz |
| Processor Cores / Threads | 24 Cores / 24 Threads |
| Processor Core Configuration | 8 Performance Cores + 16 Efficient Cores |
| Processor Speed | 3.7GHz Performance-core Base Frequency, up to 5.70GHz Max Turbo Frequency |
| Processor Cache | 36MB Intel Smart Cache |
| Total L2 Cache | 40MB |
| Processor Base Power | 125W |
| Maximum Turbo Power | 250W |
| Integrated Graphics | Intel Graphics |
| Integrated Graphics Xe-Cores | 4 Xe-Cores |
| Graphics Max Dynamic Frequency | Up to 2.0GHz |
| Intel Quick Sync Video | Supported |
| Intel AI Boost NPU | Supported |
| NPU AI Performance | Up to 13 TOPS |
| Overall Processor AI Performance | Up to 36 TOPS |
| CPU Socket | Intel LGA1851 |
| CPU Cooler | ASUS PRIME LC 360 ARGB Liquid Cooler |
| Cooler Type | All-in-One Liquid CPU Cooler |
| Cooler Radiator Size | 360mm |
| Cooler Fan Setup | 3 × 120mm Integrated ARGB Fans |
| Cooler Fan Speed | 600 – 2200 RPM ±10% |
| Cooler Air Flow | 75.7 CFM |
| Cooler Static Pressure | 3.2 mmH₂O |
| Cooler Noise Level | 34 dB(A) |
| Cooler Control Mode | PWM / DC |
| Cooler Lighting | ARGB Lighting with Aura Sync Support |
| Cooler Socket Support | Intel LGA 1851 / 1700 / 1200 / 115X, AMD AM5 / AM4 |
| Dedicated Graphics Card | ASUS PRIME GeForce RTX 5070 Ti 16GB GDDR7 OC Graphics Card |
| Graphics Engine | NVIDIA GeForce RTX 5070 Ti |
| Graphics Memory | 16GB GDDR7 |
| Graphics CUDA Cores | 8960 CUDA Cores |
| Graphics AI Performance | 1406 TOPS |
| Graphics Memory Speed | 28Gbps |
| Graphics Memory Interface | 256-bit |
| Graphics Bus Standard | PCI Express 5.0 |
| Graphics OC Mode Clock | 2482MHz |
| Graphics Default Boost Clock | 2452MHz |
| Graphics Max Digital Resolution | Up to 7680 × 4320 |
| Graphics Output Ports | 1 × HDMI 2.1b, 3 × DisplayPort 2.1b |
| Graphics Maximum Display Support | Up to 4 Displays |
| Motherboard | ASUS PRIME Z890-P WIFI |
| Motherboard Form Factor | ATX |
| Chipset | Intel Z890 Chipset |
| Motherboard CPU Socket | Intel LGA1851 |
| Supported Processor Generation | Intel Core Ultra Processors Series 2 |
| Supported Memory Type | DDR5 Memory |
| Memory Slots | 4 × DDR5 DIMM Slots |
| Maximum Memory Support | Up to 256GB DDR5 |
| Memory Features | Dual Channel Memory Architecture, Intel XMP Support, ASUS AEMP III |
| Installed Memory / RAM | Kingston 96GB DDR5 RAM |
| Primary Storage | 4TB NVMe SSD |
| Secondary Storage | 2TB Hard Disk |
| Total Installed Storage | 6TB Total Storage |
| Storage Configuration | 4TB NVMe SSD for operating system, software, editing projects, and cache performance + 2TB Hard Disk for additional file storage, backups, and media archives |
| Motherboard Storage Connectors | 4 × M.2 Slots, 4 × SATA 6Gb/s Ports |
| M.2 Slot 1 | PCIe 5.0 x4, Type 2280 / 22110 |
| M.2 Slot 2 | PCIe 4.0 x4, Type 2280 |
| M.2 Slot 3 | PCIe 4.0 x4, Type 2280 / 22110 |
| M.2 Slot 4 | PCIe 4.0 x4 & SATA Mode, Type 2242 / 2260 / 2280 |
| Motherboard Expansion Slots | 1 × PCIe 5.0 x16 Slot, 3 × PCIe 4.0 x16 Slots |
| Onboard WiFi | WiFi 7, 2×2, 2.4GHz / 5GHz / 6GHz Band Support |
| Onboard Bluetooth | Bluetooth 5.4 |
| Motherboard Rear USB Ports | 1 × Thunderbolt 4 USB Type-C, 1 × USB 10Gbps Type-A, 2 × USB 5Gbps Type-A, 4 × USB 2.0 Type-A |
| Motherboard Rear Display Ports | 1 × DisplayPort, 1 × HDMI Port, Thunderbolt 4 Display Output Support |
| Motherboard Rear Network Port | 1 × Realtek 2.5Gb Ethernet LAN Port |
| Motherboard Rear Audio Ports | 3 × Audio Jacks |
| Motherboard Rear Wireless Module | 1 × WiFi Module |
| Motherboard Special Rear Button | BIOS FlashBack Button |
| Motherboard Internal USB Headers | 1 × USB 10Gbps Type-C Header, 2 × USB 5Gbps Headers, 2 × USB 2.0 Headers |
| Motherboard Internal Cooling Headers | CPU Fan Header, CPU OPT Fan Header, AIO Pump Header, Chassis Fan Headers |
| Motherboard RGB Headers | Addressable Gen 2 Headers and Aura RGB Headers |
| Motherboard Internal Audio Header | 1 × Front Panel Audio Header |
| Casing | ASUS TUF Gaming GT301 ARGB Casing |
| Casing Type | ATX Mid Tower Gaming Case |
| Casing Motherboard Support | ATX Motherboard Support |
| Casing Drive Bays | 2 × 2.5-inch / 3.5-inch Combo Bays, 4 × 2.5-inch Bays |
| Casing Front Ports | 2 × USB 3.1 Gen 1, 1 × Microphone Jack, 1 × Headphone Jack |
| Casing Side Panel | Tempered Glass Left Side Panel |
| Casing Expansion Slots | 7 Expansion Slots |
| Casing Radiator Support | Front Radiator Support |
| Power Supply | ASUS TUF Gaming 1200W Gold PSU |
| PSU Output Power | 1200W |
| PSU Efficiency Rating | 80 PLUS Gold |
| PSU Form Factor | ATX12V |
| PSU ATX Standard | ATX 3.1 |
| PSU PFC Type | Active PFC |
| PSU Protection Features | OPP, OVP, UVP, SCP, OCP, OTP |
| PSU MTBF | More than 120,000 Hours at 40°C |
| PSU PCIe Connectors | 2 × PCIe 16-pin, 3 × PCIe 8-pin |
| PSU SATA Connectors | 5 × SATA Connectors |
| Monitor | ASUS ProArt PA328CGV 32-inch Professional Monitor |
| Monitor Screen Size | 32-inch |
| Monitor Resolution | QHD / 2K 2560 × 1440 |
| Monitor Refresh Rate | Up to 165Hz |
| Monitor Panel Type | IPS Panel |
| Monitor Viewing Angle | 178° Horizontal / 178° Vertical |
| Monitor Color Accuracy | Factory Calibrated, Calman Verified, Delta E < 2 |
| Monitor Color Gamut | 100% sRGB / Rec.709, 95% DCI-P3 |
| Monitor HDR Support | HDR10 |
| Monitor Display Colors | 1.07 Billion Colors / 10-bit |
| Monitor Response Time | 5ms GTG |
| Monitor Adaptive Sync | Adaptive-Sync / Variable Refresh Rate Support |
| Monitor USB-C Support | USB-C with 90W Power Delivery |
| Monitor Connectivity | 1 × USB-C, 1 × DisplayPort 1.4, 2 × HDMI 2.0, 4 × USB 3.2 Gen 1 Type-A, Earphone Jack |
| Monitor Built-in Speakers | 2W × 2 Speakers |
| Monitor Ergonomics | Height Adjust, Tilt, Swivel, Pivot, VESA Mount Support |
| Keyboard & Mouse | Wired Keyboard and Mouse Included |
| Operating System | Windows 11 Professional |
| Office Software | Microsoft Office 2024 Pro Plus License |
| Recommended Usage | Studio video editing, 4K video editing, Adobe Premiere Pro, After Effects, DaVinci Resolve, Photoshop, Illustrator, Blender, 3D rendering, animation, motion graphics, AI creative tools, color grading, content creation, studio workflows, professional design work, business productivity, presentations, Microsoft Office work, and high-performance multitasking |
