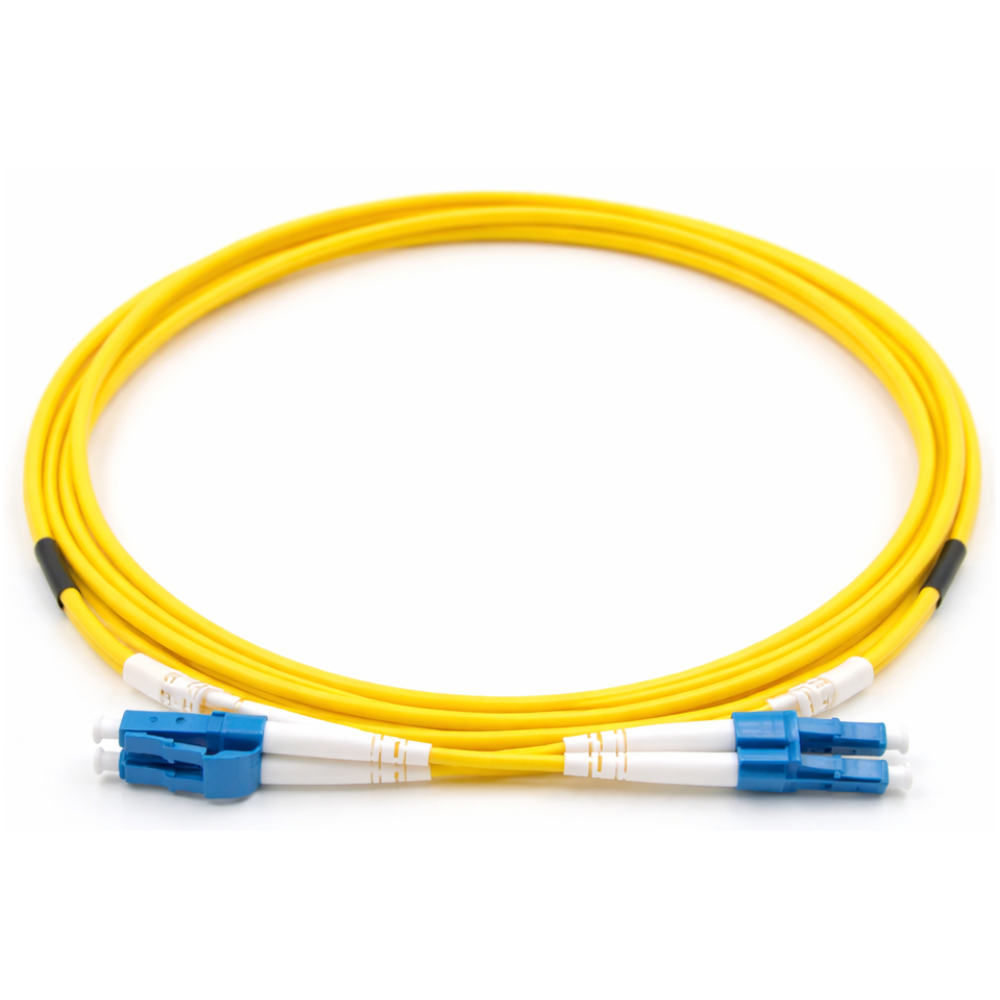

A&G (France) LC-LC Duplex Fiber Optic Patch Cord 9/125 SM 1M 2M 3M 5M 10M price in srilanka

Key features

9/125 µm

Fibre size

LC-LC Duplex

Connector

Single-mode

Fibre mode

Blue

Colour

A&G (France) LC-LC Duplex Fiber Optic Patch Cord 9/125 SM

  • High-Density Single Mode Solution: LC-LC duplex configuration maximizes port density in modern data centers and network equipment, perfect for space-constrained environments.

  • Precision UPC Polish: Features UPC polish connectors providing high return loss (≥50 dB) and low reflectance for superior signal quality in sensitive optical systems.

  • Excellent Low-Loss Performance: Guarantees maximum insertion loss of ≤0.30 dB with typical performance of ≤0.20 dB for reliable data transmission.

  • Robust Mechanical Design: Rated for >1000 mating cycles with excellent repeatability and exchangeability, ensuring long-term reliability.

Bulk Orders only

PLEASE SELECT YOUR LENGTH

Price range: රු 3,850.00 through රු 11,850.00

Need help completing your online order?We’re here to help you, step by step.

Not sure what to do next? Whether you need help choosing the right product, entering your delivery details or completing payment, our team is ready to help. Follow the steps below, or message us on WhatsApp and tell us where you’re stuck.

  1. Choose & add to cartCheck the model, specifications and warranty. Choose your options and quantity, then select Add to cart.
  2. Review your cartCheck items and quantities. Select Update cart after changes, then Proceed to checkout.
  3. Enter your detailsAdd your name, full address, town/city, postcode, phone and email. Untick Ship to a different address? if delivery is to your billing address.
  4. Review & payCheck delivery charges and your final total. Select Direct Pay, choose Place order and follow the payment instructions.
  5. Save your confirmationReturn to Richcom after payment. Keep your order number and check your confirmation email, including spam or junk. We will WhatsApp you the courier tracking code after your order has been dispatched.

Payment: Visa, MasterCard, Amex, Frimi, Ipay and Lanka-QR are listed via DirectPay. Options may vary on the payment screen. Cash on Delivery is not available.

If payment was deducted but confirmation is missing, contact us before retrying. Need installation? Use the separate appointment option on eligible products; fixing charges may apply.

Show me the checkout screens

These are real Richcom checkout screenshots, shown in black and white for easy reading and printing. Your product and total will be different.

1. Review your cartCheck your totals, then choose Proceed to checkout.
Real Richcom cart screen for online checkout
2. Add your delivery detailsComplete the required fields. Untick Ship to a different address? if we should deliver to your billing address.
Real Richcom billing screen for online checkout
3. Review and start paymentReview the total, then select Place order and follow DirectPay.
Real Richcom payment screen for online checkout
Download PDF guideHelp me complete my order

Technical Specifications

General Information

  • Product Series: LC-LC Duplex Single Mode Fiber Optical Patch Cord

  • Available Part Numbers & Lengths:

    • 118-03211: 1 Meter

    • 118-03212: 2 Meters

    • 118-03213: 3 Meters

    • 118-03215: 5 Meters

    • 118-03210: 10 Meters

  • Connector Type: LC-LC Duplex

  • Polish Type: UPC

  • Connector Color: Blue

  • Fiber Type: Single Mode

  • Core/Cladding: 9/125 µm

  • Cable Jacket Color: Yellow

  • Sheath Material: PVC/LSZH available

  • Overall Color: Blue

Optical Performance

  • Insertion Loss (Typical): ≤ 0.20 dB

  • Insertion Loss (Maximum): ≤ 0.30 dB

  • Return Loss: ≥ 50 dB

  • Repeatability: ≤ 0.10 dB

  • Changeability: ≤ 0.20 dB

Mechanical & Environmental

  • Durability: > 1000 mating cycles

  • Operating Temperature: -40°C to +75°C

  • Storage Temperature: -40°C to +70°C

  • Tensile Strength: 100N to 1000N

  • Lateral Pressure: 100N/100mm to 1000N/100mm

Certifications & Compliance

  • RoHS Compliant

  • UL Certified

  • CE Marked

  • ISO 9001 Certified

  • Telcordia GR-326-CORE Compliant

  • UL94V-0 Rated

Applications

  • High-Density Data Center Patches

  • Telecommunications Equipment

  • Network Switch Interconnections

  • Server and Storage Connectivity

  • FTTx (Fiber to the x) Deployments

  • Enterprise Network Backbones

  • Cloud Computing Infrastructure

Explore The Definitive Guide to Fiber Optic Cables in Sri Lanka: Powering the Nation’s Digital Backbone.

Weight0.3 kg
Length

10M, 1M, 2M, 3M, 5M
