Specifications
| Brand headquarters | ATEN — Taiwan |
|---|---|
| Model | CL1316N |
| Computer Connections — Direct | 16 |
| Computer Connections — Maximum | 256 (via Cascade) |
| Port Selection | OSD, Hotkey, Pushbutton |
| Connectors — KVM Ports | 16 x SPHD Female (Yellow) |
| Connectors — Firmware Upgrade | 1 x RJ-11 Female |
| Connectors — Power | 1 x IEC 60320/C14 |
| Port Selection | 16 x Pushbutton |
| Switches — Reset | 1 x Semi-recessed Pushbutton |
| Switches — Firmware Upgrade | 1 x Slide Switch |
| Switches — Power | 1 x Rocker Switch |
| Switches — LCD Control | 4 x Pushbutton |
| Switches — LCD Power | 1 x LED Pushbutton |
| LEDs — Online | 16 (Orange) |
| LEDs — Selected | 16 (Green) |
| LEDs — Power | 1 (Dark Green); 1 (Orange) |
| LEDs — Lock | 1 x Num Lock (Green); 1 x Caps Lock (Green); 1 x Scroll Lock (Green) |
| LEDs — LED Illumination Light | 1 x LED Illumination Light |
| Panel Spec — LCD Module | 19″ TFT-LCD |
| Panel Spec — Resolution | 1280 × 1024 @ 75 Hz |
| Panel Spec — Response time | 5 ms |
| Panel Spec — Viewing Angle | 170° (H), 160° (V) |
| Panel Spec — Pixel Pitch | 0.294 mm x 0.294 mm |
| Panel Spec — Support Color | 16.77M colors |
| Panel Spec — Contrast Ratio | 1000:1 |
| Panel Spec — Luminance | 250 cd/m² |
| Input Video Resolution | up to 1920 × 1200 @ 60 Hz; 1280 × 1024 @ 75 Hz, DDC2B |
| Scan Interval | 1 – 255 seconds |
| Emulation — Keyboard / Mouse | PS/2, USB |
| Maximum Input Power Rating | 100-240 V AC; 50-60 Hz; 1A |
| Power Consumption | AC110V:25.9W:121BTU/h; AC220V:26.1W:122BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental — Operating Temperature | 0-50°C |
| Environmental — Storage Temperature | -20-60°C |
| Environmental — Humidity | 0 – 80% RH, Non-condensing |
| Physical Properties — Housing | Metal + Plastic |
| Physical Properties — Rail Type | Single Rail |
| Physical Properties — Weight | 12.77 kg ( 28.13 lb ) |
| Physical Properties — Dimensions (L x W x H) | 48.30 x 68.92 x 4.40 cm ; (19.02 x 27.13 x 1.73 in.) |
| Supplied accessories | 1x CL1316 LCD KVM Switch with Rack Mount Kit; 2x Custom KVM Cable (VGA, USB; 1.8m/6ft); 1x Firmware Upgrade Cable; 1x Power Cord; 1x User Instructions |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Combine 16-port switching and a 19-inch display in one console.
- Save working space with a sliding 1U rack drawer.
- Select systems through the OSD, hotkeys or front-panel controls.
- Support compatible PS/2 and USB computers.
- Expand through a supported cascade to 256 computers.
Product Information

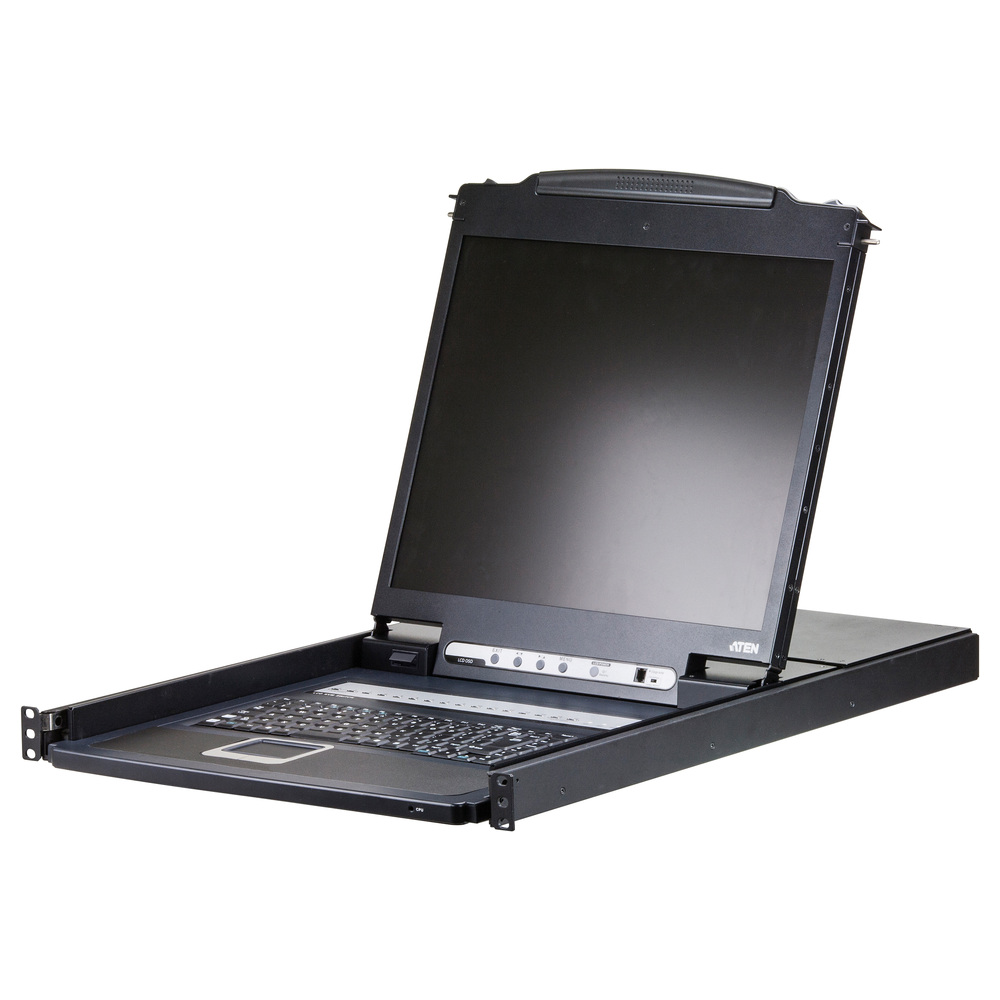

Administer 16 computers from a 19-inch LCD, keyboard and touchpad built into one rack drawer. The on-screen selection menu and hotkeys make it practical to move between systems during maintenance. A supported cascade can increase the installation to 256 computers when the necessary additional switches and cables are installed.
The LCD panel remains 1280 x 1024 when higher input resolutions are accepted and scaled. Only two computer KVM cables are supplied; additional cables and expansion switches are separate. Check the standard rack kit against the intended mounting depth.
Included: 1x CL1316 LCD KVM Switch with Rack Mount Kit; 2x Custom KVM Cable (VGA, USB; 1.8m/6ft); 1x Firmware Upgrade Cable; 1x Power Cord; 1x User Instructions.
