Specifications
| Bundle contents | 1 × VK1100 Compact Control Box; 1 × VK108US 8-button keypad (US, 1 Gang); 1 × 0AD4-3705-10EG power adapter |
|---|---|
| Brand headquarters | Taiwan |
| Store warranty | 3 YEARS WARRANTY |
| VK1100 — Interfaces / IR/Serial | • 2 x Programmable IR / Uni-directional RS-232 Port(1 x 3-Pole Terminal Block Connector);IR: – Carrier Frequency: 10KHz~455KHz;Serial: – Baud Rate: 300 to 115200 (default: 9600); – Data Bit: 8 (default) or 7; – Stop Bit: 1 (default) or 2; – Parity: None (default), Even or Odd |
| VK1100 — Interfaces / Serial | • 2 x Programmable Bi-directional RS-232/422/485 Port (2 x DB9 Male Connector, configurable via pin assignments); – Baud Rate: 300 to 115200 (default: 9600); – Data Bit: 8 (default) or 7; – Stop Bit: 1 (default) or 2; – Parity: None (default), Even or Odd; – Flow Control: None (default) RTS/CTS |
| VK1100 — Interfaces / Relay | • 4 x Relay Channel (2 x 4-Pole Terminal Block Connector); • Normally open, isolated Relays; • Contact Rating: Max 24 VDC, 2A |
| VK1100 — Interfaces / VDC | • 1 x 12 VDC Output Port (1 x 2-Pole Terminal Block Connector); • Power Supply: 12 VDC, 1A Max |
| VK1100 — Interfaces / Ethernet | • 1 x RJ-45 Female, 10/100Base-T • Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH • DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds: IP: 192.168.0.60 Subnet Mask: 255.255.255.0 |
| VK1100 — Interfaces / USB | 1 x USB Type A |
| VK1100 — Switches / Controller ID | 1 x 16-segment Switch |
| VK1100 — Switches / Power | 1 x On/Off Switch |
| VK1100 — Switches / IR Learning | 1 x IR Receiver LED |
| VK1100 — Switches / Reset Button | 1 x Semi-recessed Pushbutton |
| VK1100 — Switches / Power Consumption | AC110V:5.4W:87BTU/hAC220V:5.4W:87BTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| VK1100 — Power / Maximum Input Power Rating | Internal Power: 100-240 VAC, 50-60 Hz |
| VK1100 — Environmental / Operating Temperature | 0 – 50°C |
| VK1100 — Environmental / Storage Temperature | –20 – 60°C |
| VK1100 — Environmental / Humidity | 0 – 80% RH, Non-Condensing |
| VK1100 — Physical Properties / Housing | Metal |
| VK1100 — Physical Properties / Weight | 1.19 kg ( 2.62 lb ) |
| VK1100 — Physical Properties / Dimensions (L x W x H) | 21.50 x 16.23 x 4.18 cm (8.46 x 6.39 x 1.65 in.) |
| VK1100 — License / Basic (free) | 2 free licenses |
| VK1100 — License / Max. No. Allowed | 16 licenses |
| VK1100 supplied accessories | 1x Power Cord; 4x Terminal Blocks; 1x User Instructions |
| VK108US — Interfaces / Ethernet | • 1 x RJ-45 Female, 10/100Base-T • Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS • DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds: IP: 192.168.0.60 Subnet Mask: 255.255.255.0 |
| VK108US — Interfaces / Keypad Layout | 4~8 buttons customizable in 14 keypad layouts |
| VK108US — Switches / Controller ID | 1 x 16-segment Switch |
| VK108US — Switches / Keypad ID | 1 x 8-segment Switch |
| VK108US — Switches / Reset Button | 1 x Semi-recessed Pushbutton |
| VK108US — Switches / Power Consumption | DC5V:1.25W:6BTU/hDC48V:1.58W:7BTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| VK108US — Environmental / Operating Temperature | 0 – 50°C |
| VK108US — Environmental / Storage Temperature | –20 – 60°C |
| VK108US — Environmental / Humidity | 0 – 80% RH, Non-Condensing |
| VK108US — Physical Properties / Housing | Plastic |
| VK108US — Physical Properties / Weight | 0.13 kg ( 0.29 lb ) |
| VK108US — Physical Properties / Dimensions (L x W x H) | 11.63 x 7.06 x 3.89 cm (4.58 x 2.78 x 1.53 in.) |
| VK108US — Physical Properties / Faceplate Dimensions (L x W x H) | 11.92 x 7.42 x 0.92 cm (4.69 x 2.92 x 0.36 in.) |
| VK108US supplied accessories | 1x Button Pack; 1x Terminal Block; 1x Faceplate; 1x User Instructions |
Key Features
- Bring room equipment under the VK1100 controller through serial, IR, relay and Ethernet interfaces.
- Operate programmed room functions from a physical keypad with four to eight configurable buttons.
- Adapt the keypad to the room using fourteen button-layout combinations.
- Configure control profiles with ATEN VK6000 and use the controller’s two included mobile-control licenses.
- Combine the requested control box, keypad and separately listed power adapter in one purchase.
Product Information

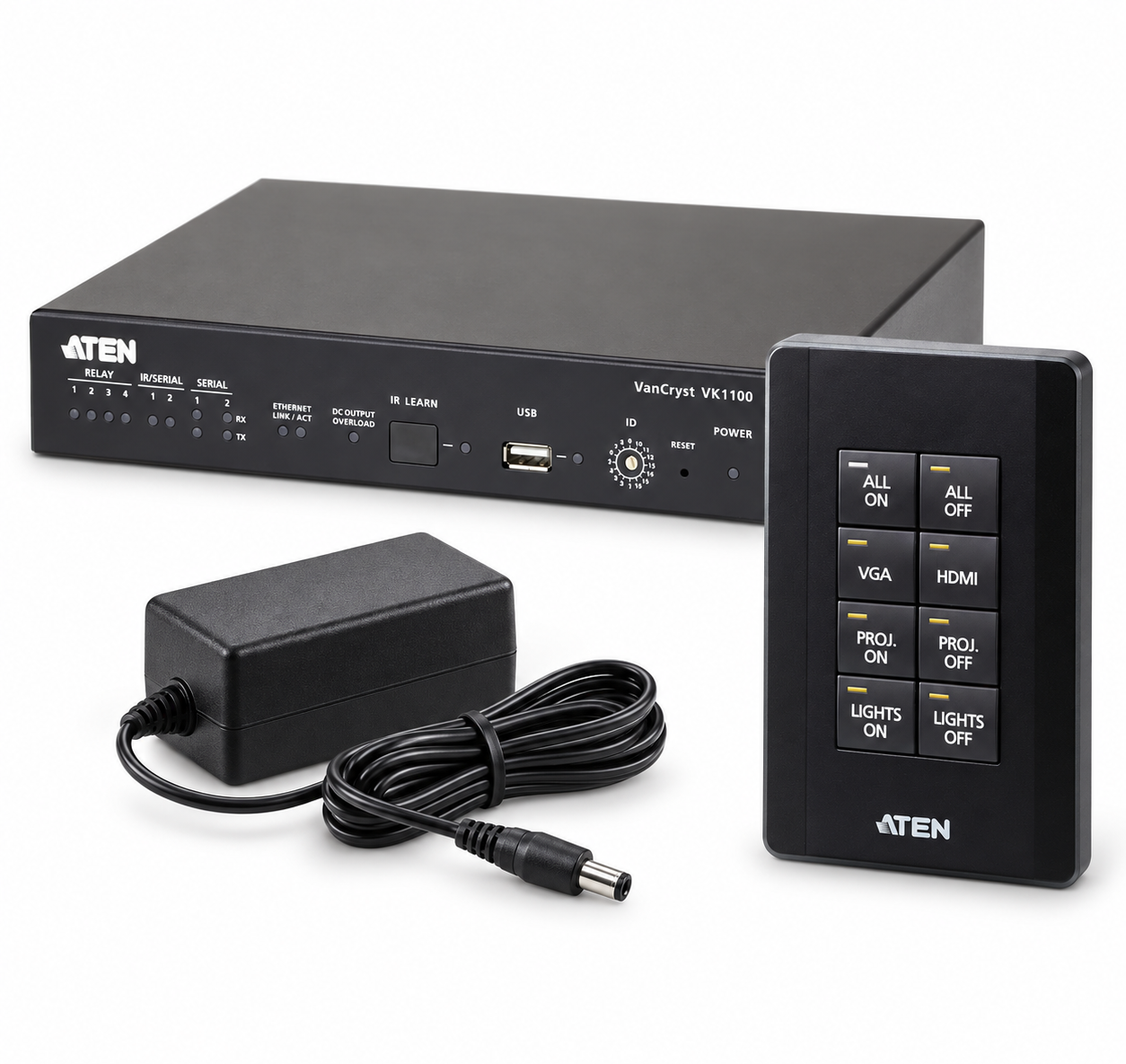

This room-control bundle combines the original ATEN VK1100 Compact Control Box, VK108US keypad and 0AD4-3705-10EG power adapter. It is intended for meeting rooms, classrooms and installed AV systems where several devices need a shared, programmed control interface.
The VK1100 supplies two bidirectional RS-232/422/485 ports, two programmable IR or unidirectional serial channels, four relay channels, a 12 V DC output and 10/100 Ethernet. The VK108US provides a wall-mounted physical interface with customisable button layouts and status lighting. Control profiles must be configured for the connected equipment through the ATEN control-system software.
The control box uses its internal 100–240 V AC supply. The keypad supports DC 5 V or PoE. The separately named adapter is included in this requested bundle; its exact electrical rating and connector must be checked against the supplied unit during installation. Device-control cables, a network switch, mobile devices, programming labour and the optional VK101 tabletop kit are not listed as included. Additional mobile-control licenses beyond the two supplied with VK1100 are optional.
