ATEN (Taiwan) HDMI HDBaseT Extender (4K@100m) (HDBaseT Class A) - VE811 price in srilanka

Key features

HDMI

Video interface

HDBaseT

Extension technology

3 years

Warranty

Great Customer Service

Richcom Technology

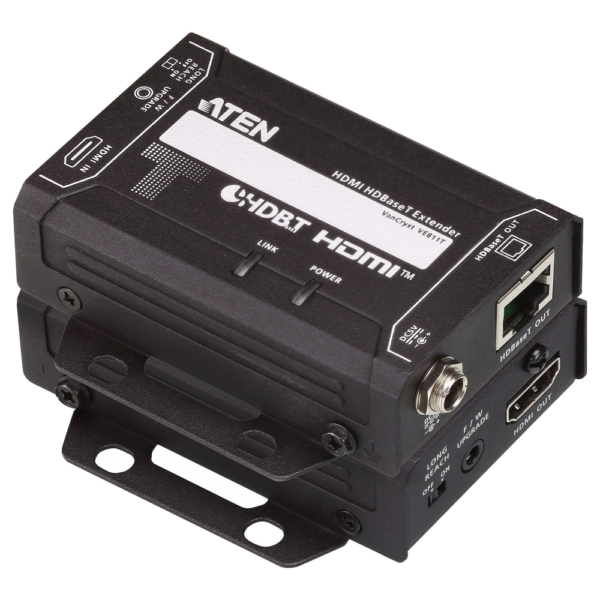

ATEN (Taiwan) HDMI HDBaseT Extender (4K@100m) (HDBaseT Class A) – VE811 (3Y)

The ATEN (Taiwan) VE811 is an HDMI HDBaseT Extender (4K@100m) (HDBaseT Class A) with video input: VE811R: N/A; VE811T: 1 x HDMI Type A Female (Black); video output: VE811R: 1 x HDMI Type A Female (Black); VE811T: N/A. With documented performance of VE811R: 10.2Gbps (3.4Gbps per lane); VE811T: 10.2Gbps (3.4Gbps per lane), it helps you retain compatible HDMI audio and CEC communication and install without additional source-device software.

3 YEARS WARRANTY

රු 308,500.00

Need help completing your online order?We’re here to help you, step by step.

Not sure what to do next? Whether you need help choosing the right product, entering your delivery details or completing payment, our team is ready to help. Follow the steps below, or message us on WhatsApp and tell us where you’re stuck.

  1. Choose & add to cartCheck the model, specifications and warranty. Choose your options and quantity, then select Add to cart.
  2. Review your cartCheck items and quantities. Select Update cart after changes, then Proceed to checkout.
  3. Enter your detailsAdd your name, full address, town/city, postcode, phone and email. Untick Ship to a different address? if delivery is to your billing address.
  4. Review & payCheck delivery charges and your final total. Select Direct Pay, choose Place order and follow the payment instructions.
  5. Save your confirmationReturn to Richcom after payment. Keep your order number and check your confirmation email, including spam or junk. We will WhatsApp you the courier tracking code after your order has been dispatched.

Payment: Visa, MasterCard, Amex, Frimi, Ipay and Lanka-QR are listed via DirectPay. Options may vary on the payment screen. Cash on Delivery is not available.

If payment was deducted but confirmation is missing, contact us before retrying. Need installation? Use the separate appointment option on eligible products; fixing charges may apply.

Show me the checkout screens

These are real Richcom checkout screenshots, shown in black and white for easy reading and printing. Your product and total will be different.

1. Review your cartCheck your totals, then choose Proceed to checkout.
Real Richcom cart screen for online checkout
2. Add your delivery detailsComplete the required fields. Untick Ship to a different address? if we should deliver to your billing address.
Real Richcom billing screen for online checkout
3. Review and start paymentReview the total, then select Place order and follow DirectPay.
Real Richcom payment screen for online checkout
Download PDF guideHelp me complete my order

Specifications

Video Input / InterfacesVE811R: N/A; VE811T: 1 x HDMI Type A Female (Black)
Video Input / ImpedanceVE811R: N/A; VE811T: 100 Ω
Video Input / Max. DistanceVE811R: N/A; VE811T: 3 m
Video Output / InterfacesVE811R: 1 x HDMI Type A Female (Black); VE811T: N/A
Video Output / ImpedanceVE811R: 100 Ω; VE811T: N/A
Video Output / Max. DistanceVE811R: 3 m; VE811T: N/A
Video / Max. Data RateVE811R: 10.2Gbps (3.4Gbps per lane); VE811T: 10.2Gbps (3.4Gbps per lane)
Video / Max. Pixel ClockVE811R: 340 MHz; VE811T: 340 MHz
Video / ComplianceVE811R: HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC); VE811T: HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC)
Video / Max. Resolutions / DistanceVE811R: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4); VE811T: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio / InputVE811R: N/A; VE811T: 1 x HDMI Type A Female (Black)
Audio / OutputVE811R: 1 x HDMI Type A Female (Black); VE811T: N/A
Connectors / Unit To UnitVE811R: 1 x RJ-45 Female; VE811T: 1 x RJ-45 Female
Connectors / Firmware UpgradeVE811R: 1 x Mini Stereo Jack Female (Black); VE811T: 1 x Mini Stereo Jack Female (Black)
Connectors / PowerVE811R: 1 x DC Jack (Black) with locking; VE811T: 1 x DC Jack (Black) with locking
Switches / Long Reach Mode SwitchVE811R: 1 x Slide Switch – ON/OFF; VE811T: 1 x Slide Switch – ON/OFF
Switches / Power ConsumptionVE811R: DC5V:3.84W:18BTUNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.; VE811T: DC5V:3.77W:18BTUNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental / Operating TemperatureVE811R: 0 – 40°C; VE811T: 0 – 40°C
Environmental / Storage TemperatureVE811R: -20 – 60°C; VE811T: -20 – 60°C
Environmental / HumidityVE811R: 0 – 80% RH, Non-Condensing; VE811T: 0 – 80% RH, Non-Condensing
Physical Properties / HousingVE811R: Metal; VE811T: Metal
Physical Properties / WeightVE811R: 0.17 kg ( 0.37 lb ); VE811T: 0.16 kg ( 0.35 lb )
Physical Properties / Dimensions (L x W x H) with bracketVE811R: 8.64 x 7.30 x 2.47 cm (3.4 x 2.87 x 0.97 in.); VE811T: 8.64 x 7.30 x 2.47 cm (3.4 x 2.87 x 0.97 in.)
Physical Properties / Dimensions (L x W x H) without bracketVE811R: 8.20 x 5.20 x 2.37 cm (3.23 x 2.05 x 0.93 in.); VE811T: 8.20 x 5.20 x 2.37 cm (3.23 x 2.05 x 0.93 in.)
Brand headquartersTaiwan (ATEN International; headquarters country, not a claim of manufacturing origin)
Store warranty3 YEARS WARRANTY
Included accessories1x VE811T HDMI HDBaseT Transmitter; 1x VE811R HDMI HDBaseT Receiver; 2x Power Adapters; 1x User Instructions

Key Features

  • Deploy with both transmitter and receiver included.
  • Carry supported 4K HDMI content over HDBaseT.
  • Reach up to 100 m with the specified cable and video format.
  • Retain compatible HDMI audio and CEC communication.
  • Install without additional source-device software.

Product Information

Extend an HDMI source to a remote display over a single HDBaseT cable using the included transmitter and receiver. This is a point-to-point AV link suited to installed presentation, signage and display systems.

4K reaches up to 70 m with Cat 5e/6 and 100 m with Cat 6a under the documented conditions. Each unit requires its own power adapter. Follow the exact resolution, chroma and cable specifications below. Long Reach Mode additionally supports up to 1080p over 150 m. Confirm the source, display, cable type and supported signal timing before installation. Use the power arrangement and operating environment stated in the specifications.

Included in the manufacturer package: 1x VE811T HDMI HDBaseT Transmitter; 1x VE811R HDMI HDBaseT Receiver; 2x Power Adapters; 1x User Instructions.

Explore Video Extenders in Sri Lanka: Buying Guide; KVM Switches in Sri Lanka: Buying Guide.

Weight0.33 kg
