Specifications
| Video Input / Interfaces | 1 x RJ-45 Female (Silver) |
|---|---|
| Video Input / Impedance | 100 Ω |
| Video Output / Interfaces | 1 x HDMI Type A Female (Black) |
| Video Output / Impedance | 100 Ω |
| Video Output / Max. Distance | 3 m |
| Video / Max. Data Rate | 6.75 Gpbs (2.25 Gbps per lane) |
| Video / Max. Pixel Clock | 225 MHz |
| Video / Compliance | HDMI (3D, Deep Color) HDCP 1.4 CompatibleHDBaseT Compatible |
| Video / Max. Resolutions / Distance | Up to 1080p @60m (Cat 5e/6); 70m (Cat 6a) |
| Control / RS-232 | 1 x Captive Screw Connector, 3 Pole |
| Control / IR | 1 x Mini Stereo Jack Female (Black) |
| Connectors / Power | 1 x DC Jack (Sliver) |
| Switches / Firmware Upgrade | 1 x Slide Switch |
| Switches / Power Consumption | DC5V:8.36W:39BTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental / Operating Temperature | 0 – 50°C |
| Environmental / Storage Temperature | -20 – 60°C |
| Environmental / Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties / Housing | Metal |
| Physical Properties / Weight | 0.81 kg ( 1.78 lb ) |
| Physical Properties / Dimensions (L x W x H) | 17.74 x 16.92 x 4.20 cm (6.98 x 6.66 x 1.65 in.) |
| Physical Properties / Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Brand headquarters | Taiwan (ATEN International; headquarters country, not a claim of manufacturing origin) |
| Store warranty | 3 YEARS WARRANTY |
| Included accessories | 1x VE805R HDMI HDBaseT-Lite Receiver with Scaler; 1x Power Adapter; 1x IR Transmitter; 1x IR Receiver; 1x Terminal Block; 1x User Instructions |
Key Features
- Scale received video to suit the connected display.
- Extend compatible 1080p feeds up to 70 m.
- Use a single Cat cable for the HDBaseT-Lite video connection.
- Enable video-wall layouts with the compatible VM8514 system.
- Integrate IR and supported serial control into the AV installation.
Product Information

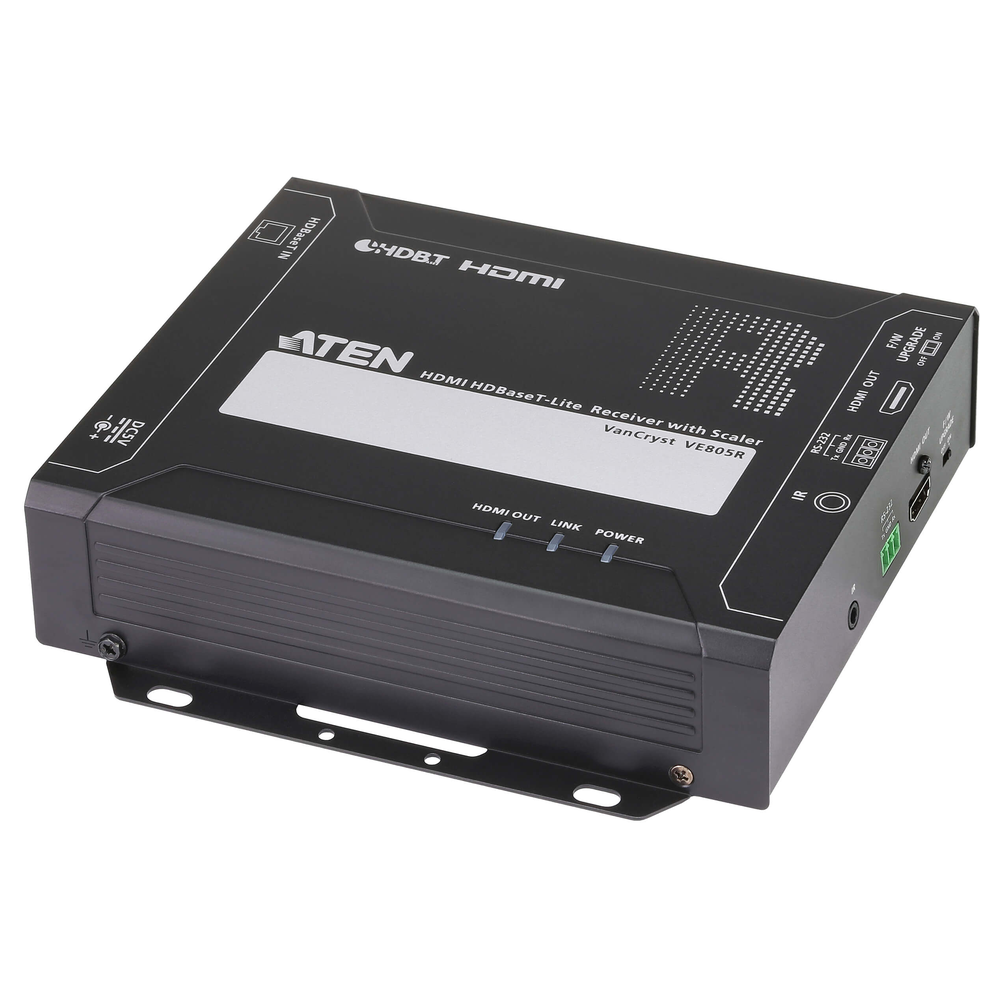

Receive an HDBaseT-Lite HDMI feed and scale it for a display in a compatible matrix installation. This receiver is intended for systems that need integrated scaling and, with the specified matrix board, seamless switching or video-wall control.
This is a receiver only. Seamless Switch, video-wall functions and bidirectional RS-232 require use with the VM8514. The supplied IR receiver cable covers 30–56 kHz although the unit supports 30–60 kHz signals. Confirm the source, display, cable type and supported signal timing before installation. Use the power arrangement and operating environment stated in the specifications.
Included in the manufacturer package: 1x VE805R HDMI HDBaseT-Lite Receiver with Scaler; 1x Power Adapter; 1x IR Transmitter; 1x IR Receiver; 1x Terminal Block; 1x User Instructions.
