ATEN (Taiwan) USB True 4K HDMI HDBaseT 3.0 KVM Extender - CE840 price in srilanka

Key features

4K 60Hz 4:4:4

Video support

100 m

Extension distance

3 years

Warranty

Great Customer Service

Richcom Technology

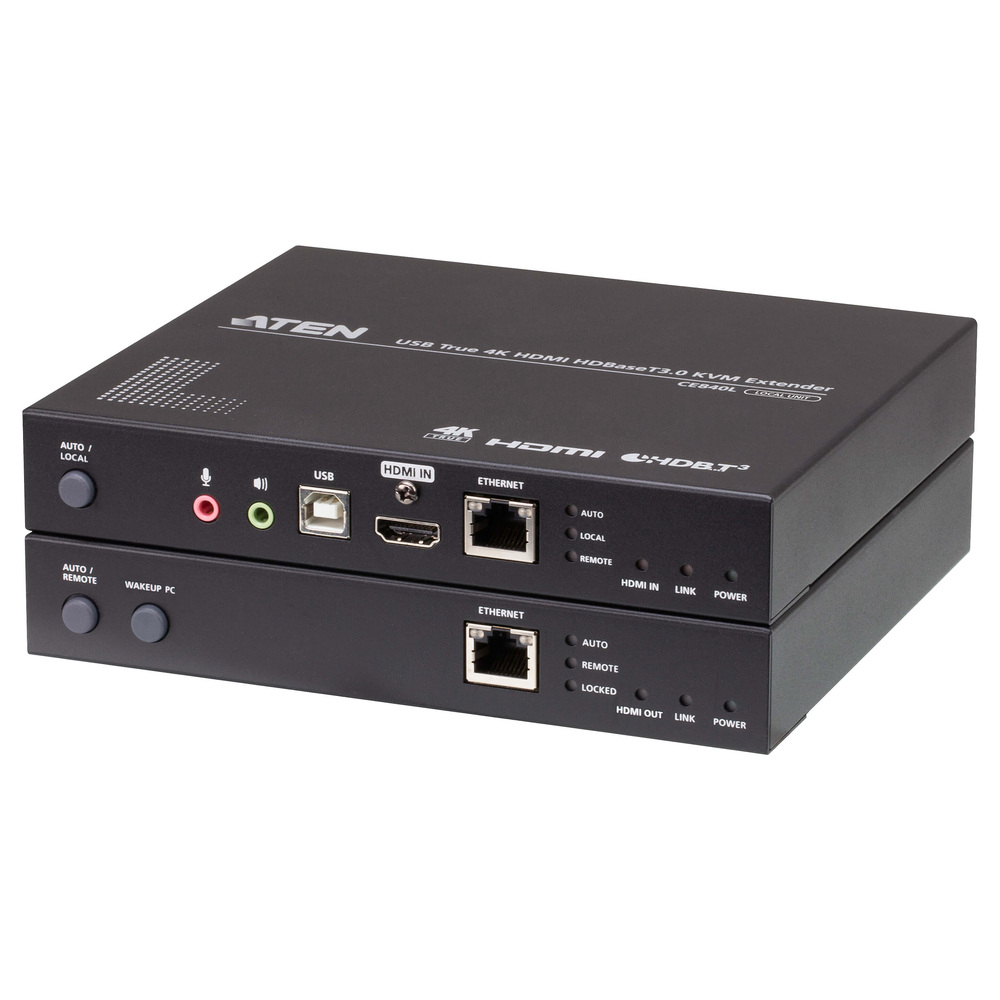

ATEN (Taiwan) USB True 4K HDMI HDBaseT 3.0 KVM Extender – CE840 (3Y)

The ATEN (Taiwan) CE840 is a USB True 4K HDMI HDBaseT 3.0 KVM Extender offering 4096/3840 x 2160 at 60 Hz, 4:4:4, over 100 m. It provides dual consoles, USB 2.0, Gigabit Ethernet, RS-232 and audio transport.

3 YEARS WARRANTY

රු 987,500.00

Need help completing your online order?We’re here to help you, step by step.

Not sure what to do next? Whether you need help choosing the right product, entering your delivery details or completing payment, our team is ready to help. Follow the steps below, or message us on WhatsApp and tell us where you’re stuck.

  1. Choose & add to cartCheck the model, specifications and warranty. Choose your options and quantity, then select Add to cart.
  2. Review your cartCheck items and quantities. Select Update cart after changes, then Proceed to checkout.
  3. Enter your detailsAdd your name, full address, town/city, postcode, phone and email. Untick Ship to a different address? if delivery is to your billing address.
  4. Review & payCheck delivery charges and your final total. Select Direct Pay, choose Place order and follow the payment instructions.
  5. Save your confirmationReturn to Richcom after payment. Keep your order number and check your confirmation email, including spam or junk. We will WhatsApp you the courier tracking code after your order has been dispatched.

Payment: Visa, MasterCard, Amex, Frimi, Ipay and Lanka-QR are listed via DirectPay. Options may vary on the payment screen. Cash on Delivery is not available.

If payment was deducted but confirmation is missing, contact us before retrying. Need installation? Use the separate appointment option on eligible products; fixing charges may apply.

Show me the checkout screens

These are real Richcom checkout screenshots, shown in black and white for easy reading and printing. Your product and total will be different.

1. Review your cartCheck your totals, then choose Proceed to checkout.
Real Richcom cart screen for online checkout
2. Add your delivery detailsComplete the required fields. Untick Ship to a different address? if we should deliver to your billing address.
Real Richcom billing screen for online checkout
3. Review and start paymentReview the total, then select Place order and follow DirectPay.
Real Richcom payment screen for online checkout
Download PDF guideHelp me complete my order

Specifications

Brand headquarters ATEN — Taiwan
Model CE840
Connectors — Console Ports CE840L: 1 x HDMI (Female, Black); 4 x USB Type A (Female, White) *; 1 x Mini Stereo Jack (Female, Green); 1 x Mini Stereo Jack (Female, Pink); * 2 ports x USB for Keyboard & Mouse use, 2 ports x USB for other USB2.0 peripherals, DO NOT mix and match; CE840R: 1 x HDMI (Female, Black); 4 x USB Type A (Female, White) *; 1 x Mini Stereo Jack (Female, Green); 1 x Mini Stereo Jack (Female, Pink); 1 x GbE (RJ-45 Female, Black); * 2 ports x USB for Keyboard & Mouse use, 2 ports x USB for other USB2.0 peripherals, DO NOT mix and match
Connectors — KVM Ports CE840L: 1 x HDMI (Female, Black); 1 x USB Type B (Female, White); 1 x Mini Stereo Jack (Female, Green); 1 x Mini Stereo Jack (Female, Pink); 1 x GbE (RJ-45 Female, Black); CE840R: N/A
Connectors — RS-232 CE840L: 1 x DB-9 Female (Black); CE840R: 1 x DB-9 Male (Black)
Connectors — Power CE840L: 1 x DC Jack (Black); CE840R: 1 x DC Jack (Black)
Connectors — Unit To Unit CE840L: 1 x RJ-45 Female (Black, HDBaseT); CE840R: 1 x RJ-45 Female (Black, HDBaseT)
Video — Max. Data Rate CE840L: 18Gbps (6Gbps per lane); CE840R: 18Gbps (6Gbps per lane)
Video — Max. Pixel Clock CE840L: 600 MHz; CE840R: 600 MHz
Video — Compliance CE840L: HDMI (Deep Color, 4K/60Hz); 4K HDR+; HDCP2.3 Compatible; Consumer Electronics Control (CEC)*; *The CEC signals are only bypassed from the Local unit to the remote unit and do not support local HDMI console output.; CE840R: HDMI (Deep Color, 4K/60Hz); 4K HDR+; HDCP2.3 Compatible; Consumer Electronics Control (CEC)
Video — Max. Resolution CE840L: 4096 x 2160 @ 60Hz (4:4:4); 3840 x 2160 @ 60Hz (4:4:4); CE840R: 4096 x 2160 @ 60Hz (4:4:4); 3840 x 2160 @ 60Hz (4:4:4)
Video — Max. Resolutions / Distance CE840L: 4K x 2K @ 60Hz (4:4:4) up to 100m (HDBaseT 3.0 Certified Cat 6a U/FTP cable or above / ATEN 2L-29330 Cat 6a cable); CE840R: 4K x 2K @ 60Hz (4:4:4) up to 100m (HDBaseT 3.0 Certified Cat 6a U/FTP cable or above / ATEN 2L-29330 Cat 6a cable)
LEDs — Power CE840L: 1 (Green); CE840R: 1 (Green)
LEDs — Link CE840L: 1 (Orange); CE840R: 1 (Orange)
LEDs — Video CE840L: 1 x HDMI IN (Orange); CE840R: 1 x HDMI OUT (Orange)
LEDs — Console Status CE840L: 3 x Local USB Keyboard/Mouse Authority Indicator (Green); CE840R: 3 x Remote USB Keyboard/Mouse Authority Indicator (Green)
Switches — Long Reach Mode Switch CE840L: 1 x Slide Switch; CE840R: 1 x Slide Switch
Switches — Firmware Upgrade CE840L: 1 x Slide Switch; CE840R: 1 x Slide Switch
Pushbuttons — Wakeup button CE840L: N/A; CE840R: 1 x Pushbutton
Pushbuttons — Operating Mode Selection CE840L: 1 x Local USB Keyboard/Mouse Authority switch; CE840R: 1 x Remote USB Keyboard/Mouse Authority switch
Power Consumption CE840L: DC12V:7.36W:60BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.; CE840R: DC12V:7.37W:60BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental — Operating Temperature CE840L: 0-40˚C; CE840R: 0-40˚C
Environmental — Storage Temperature CE840L: -20-60˚C; CE840R: -20-60˚C
Environmental — Humidity CE840L: 0-80% RH, Non-condensing; CE840R: 0-80% RH, Non-condensing
Physical Properties — Housing CE840L: Metal; CE840R: Metal
Physical Properties — Weight CE840L: 0.82 kg ( 1.81 lb ); CE840R: 0.81 kg ( 1.78 lb )
Physical Properties — Dimensions (L x W x H) CE840L: 17.82 x 15.60 x 2.88 cm ; (7.02 x 6.14 x 1.13 in.); CE840R: 17.82 x 15.60 x 2.88 cm ; (7.02 x 6.14 x 1.13 in.)
Supported video timing Input Resolutions; 640 x 480 @ 60/67/72/75 Hz; 720p 60 Hz
Supported video timing Input Resolutions; 800 x 600 @ 56/60/72/75 Hz; 1080i 60 Hz
Supported video timing Input Resolutions; 1024 x 768 @ 60/70/75 Hz; 640 x 480 60Hz (4:3)
Supported video timing Input Resolutions; 1280 x 800 @ 60 Hz; 576p 50 Hz (4:3)/(16:9)
Supported video timing Input Resolutions; 1280 x 1024 @ 60/75 Hz; 720p 50 Hz
Supported video timing Input Resolutions; 1400 x 1050 @ 60 Hz; 1080i 50 Hz
Supported video timing Input Resolutions; 1440 x 900 @ 60 Hz; 1080p 24/25/30/50 Hz
Supported video timing Input Resolutions; 1600 x 1200 @ 60 Hz; 3840 x 2160p 24/25/30/50/60 Hz
Supported video timing Input Resolutions; 1680 x 1050 @ 60 Hz; 4096 x 2160p 24/25/30/50/60 Hz
Supported video timing Input Resolutions; 1920 x 1080 @ 60/120 Hz; 3840 x 2160p 50 Hz 4:2:0/60 Hz 4:2:0
Supported video timing Input Resolutions; 1920 x 1200 @ 60 Hz; 4096 x 2160p 50 Hz 4:2:0/60 Hz 4:2:0
Supported video timing Input Resolutions; 1920 x 1200 @ 60 Hz (Reduced Blanking); 1920 x 1080 @ 144 Hz
Supported video timing Input Resolutions; 1080p 60 Hz; 2560 x 1440 @ 144 Hz
Supported video timing Input Resolutions; 480p 60 Hz (4:3) / (16:9);
Supplied accessories 1x CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender (Local Unit); 1x CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender (Remote Unit); 1x HDMI cable; 1x microphone cable; 1x speaker cable; 1x USB Type-A to USB Type-B cable; 2x mounting kits; 8x foot pads; 2x power adapters and power cords; 1x user instructions
Store warranty 3 YEARS WARRANTY

Key Features

  • Retain detailed 4K 60 Hz 4:4:4 video over a 100 m link.
  • Operate through consoles at both local and remote positions.
  • Carry USB peripherals, audio, serial and Gigabit Ethernet signals.
  • Select console control authority with the hardware buttons.
  • Support compatible HDR10+ and multichannel HDMI audio sources.

Product Information

Place a true 4K HDMI console away from its computer while retaining an operating position at the local end. HDBaseT 3.0 transports the supported signals without video compression over a qualified cable link. Local and remote controls select console authority, and the separate keyboard/mouse and peripheral USB connections help organize the installation.

Use HDBaseT 3.0 certified Cat 6a U/FTP or higher cable, or the recommended ATEN 2L-29330. Keep keyboard/mouse USB ports separate from the two peripheral ports. Long Reach 1080p at 150 m requires firmware v1.0.064m or later. The inter-unit cable is separate.

Included: 1x CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender (Local Unit); 1x CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender (Remote Unit); 1x HDMI cable; 1x microphone cable; 1x speaker cable; 1x USB Type-A to USB Type-B cable; 2x mounting kits; 8x foot pads; 2x power adapters and power cords; 1x user instructions.

Explore KVM Extenders in Sri Lanka: Buying Guide; KVM Switches in Sri Lanka: Buying Guide.

Weight 1.63 kg
