Specifications
| Brand headquarters | ATEN — Taiwan |
|---|---|
| Model | CE-700A |
| Connectors — Console Ports | CE700AL: 2 x USB Type-A female; 1 x HDB-15 female; CE700AR: 2 x USB Type-A female; 1 x HDB-15 female |
| Connectors — KVM Ports | CE700AL: 1 x SPHD-17 female; CE700AR: N/A |
| Connectors — Unit To Unit | CE700AL: 1 x RJ-45 female; CE700AR: 1 x RJ-45 female |
| Connectors — Power | CE700AL: 1 x DC jack; CE700AR: 1 x DC jack |
| Pushbuttons — Operating Mode Selection | CE700AL: 1 x pushbutton; CE700AR: N/A |
| LEDs — Local | CE700AL: 1 (green); CE700AR: N/A |
| LEDs — Remote | CE700AL: 1 (green); CE700AR: 1 (green) |
| LEDs — Link | CE700AL: N/A; CE700AR: 1 (green) |
| Emulation — Keyboard / Mouse | CE700AL: USB; CE700AR: USB |
| Power Consumption | CE700AL: DC5.3V:2.17W:14BTU/h; CE700AR: DC5.3V:1.59W:12BTU/h |
| Emulation — Power Measurement Note | Watts indicate typical consumption without external loading; BTU/h indicates fully loaded consumption. |
| Video | CE700AL: 1920 x 1200 @ 60Hz at 30 m; 1600 x 1200 @ 60Hz at 100 m; 1280 x 1024 @ 60Hz at 150 m; CE700AR: 1920 x 1200 @ 60Hz at 30 m; 1600 x 1200 @ 60Hz at 100 m; 1280 x 1024 @ 60Hz at 150 m |
| Environmental — Operating Temperature | CE700AL: 0–50°C; CE700AR: 0–50°C |
| Environmental — Storage Temperature | CE700AL: -20–60°C; CE700AR: -20–60°C |
| Environmental — Humidity | CE700AL: 0–80% RH, non-condensing; CE700AR: 0–80% RH, non-condensing |
| Physical Properties — Housing | CE700AL: Metal; CE700AR: Metal |
| Physical Properties — Weight | CE700AL: 0.33 kg; CE700AR: 0.32 kg |
| Physical Properties — Dimensions (L x W x H) | CE700AL: 12.70 x 8.65 x 2.50 cm; CE700AR: 12.70 x 8.14 x 2.50 cm |
| Supplied accessories | 1 x CE700AL local unit; 1 x CE700AR remote unit; 2 x power adapters; 1 x VGA/USB KVM cable, 1.8 m; 1 x rack mount kit; 1 x user manual; 1 x quick start guide |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Place the operator console up to 150 m from the computer.
- Carry supported KVM signals over a single Cat 5e link.
- Use the supplied local and remote units as a matched pair.
- Adjust the installation to the documented video and distance limits.
- Keep the computer in an equipment area while retaining console access.
Product Information

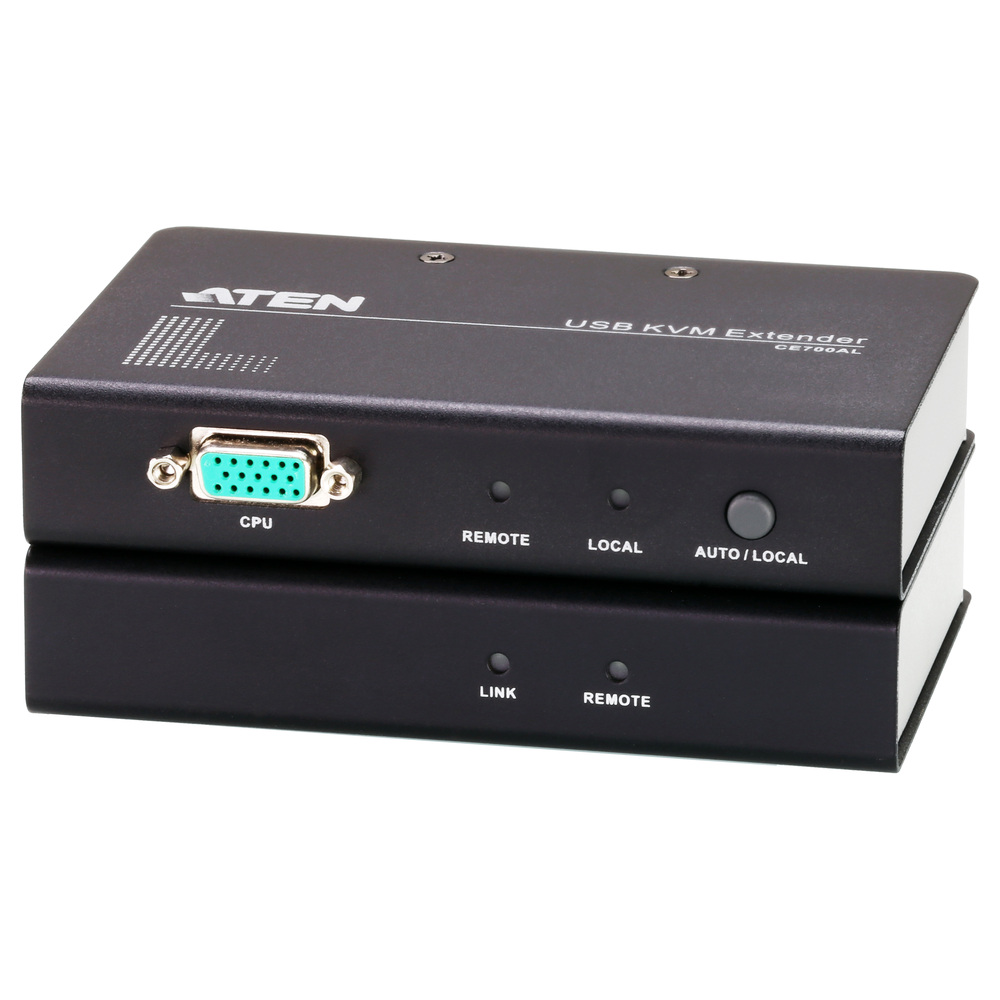

Move a compatible computer console up to 150 m away using the local and remote units with a suitable Cat 5e cable. Keeping the computer in a rack or secure equipment area can free the operator position from equipment noise and clutter. Select the cable route and video mode together, since the supported resolution is tied to the link distance.
For widescreen EDID, connect a suitable local monitor or use an optional ATEN EDID emulator. USB connections are for keyboard and mouse use. The inter-unit Cat 5e cable is not listed in the supplied package and must be purchased separately. This is a dedicated KVM link, not an Ethernet network connection.
Included: 1 x CE700AL local unit; 1 x CE700AR remote unit; 2 x power adapters; 1 x VGA/USB KVM cable, 1.8 m; 1 x rack mount kit; 1 x user manual; 1 x quick start guide.
