Specifications
| Video Input / Interfaces | VE170R: N/A; VE170T: 1 x HDB-15 Male (Blue) |
|---|---|
| Video Input / Impedance | VE170R: N/A; VE170T: 75 Ω |
| Video Input / Max. Distance | VE170R: N/A; VE170T: 1.8 m |
| Video Output / Interfaces | VE170R: 1 x HDB-15 Female (Blue); VE170T: 1 x HDB-15 Female (Blue) |
| Video Output / Impedance | VE170R: 75 Ω; VE170T: 75 Ω |
| Video / Max. Bandwidth | VE170R: 300 MHz; VE170T: 300 MHz |
| Video / Max. Resolutions / Distance | VE170R: Up to 1920 x 1200@30m; 1024 x 768@300m; VE170T: Up to 1920 x 1200@30m; 1024 x 768@300m |
| Audio / Output | VE170R: 1 x Mini Stereo Jack Female (Green); VE170T: 1 x Mini Stereo Jack Female (Green) |
| Audio / Input | VE170R: N/A; VE170T: 1 x Mini Stereo Jack Female (Green) |
| Connectors / Power | VE170R: 1 x DC Jack; VE170T: 1 x DC Jack |
| Environmental / Operating Temperature | VE170R: 0-50°C; VE170T: 0-50°C |
| Environmental / Storage Temperature | VE170R: -20 – 60°C; VE170T: -20 – 60°C |
| Environmental / Humidity | VE170R: 0 – 80% RH, Non-Condensing; VE170T: 0 – 80% RH, Non-Condensing |
| Physical Properties / Housing | VE170R: Metal; VE170T: Metal |
| Physical Properties / Weight | VE170R: 0.24 kg ( 0.53 lb ); VE170T: 0.25 kg ( 0.55 lb ) |
| Physical Properties / Dimensions (L x W x H) | VE170R: 12.77 x 9.04 x 2.26 cm (5.03 x 3.56 x 0.89 in.); VE170T: 12.77 x 9.04 x 2.26 cm (5.03 x 3.56 x 0.89 in.) |
| Physical Properties / Carton Lot | 01 pcs |
| Physical Properties / Power Consumption | VE170R: DC5.3V:3.32W:16BTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.; VE170T: DC5.3V:2.42W:11BTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Physical Properties / Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Brand headquarters | Taiwan (ATEN International; headquarters country, not a claim of manufacturing origin) |
| Store warranty | 3 YEARS WARRANTY |
| Included accessories | 1x VE170T + VE170R VGA/Audio Cat 5 Extender; 1x VGA/Audio Cable (1.8 m); 2x Power Adapters; 1x Mounting Kit; 1x User instructions |
Key Features
- Deploy with both transmitter and receiver included.
- Retain one local and one remote VGA display connection.
- Reach 300 m at 1024 × 768 or 30 m at 1920 × 1200.
- Tune the picture with gain and compensation controls.
- Carry mono audio over the extension link.
Product Information

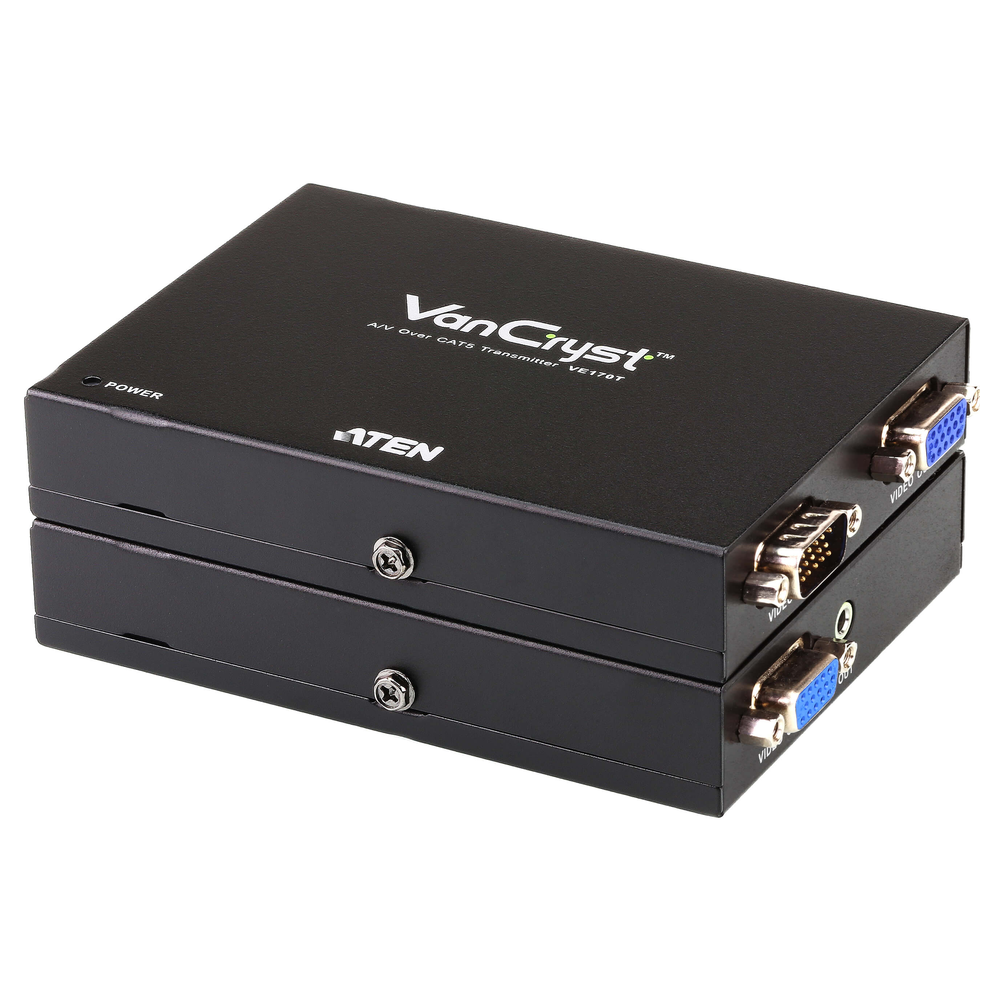

Extend VGA video and mono audio between a source location and a remote display over Cat 5e. The supplied transmitter and receiver create a point-to-point connection, with a local display output available at the source end.
This kit contains the VE170T and VE170R, not the deskew VE170RQ receiver. The Cat 5e link carries AV signals and must follow the documented point-to-point installation. Confirm the source, display, cable type and supported signal timing before installation. Use the power arrangement and operating environment stated in the specifications.
Included in the manufacturer package: 1x VE170T + VE170R VGA/Audio Cat 5 Extender; 1x VGA/Audio Cable (1.8 m); 2x Power Adapters; 1x Mounting Kit; 1x User instructions.
