Specifications
| Specification | Details |
|---|---|
| Brand | IKCOM |
| Brand origin / headquarters | Canada |
| Model | IK-FOC-GJFJV-04-09R |
| Supplier item number | 31201 |
| Fibre count | 4 |
| Fibre type | Single Mode |
| Nominal fibre size | 9/125 µm |
| Intended environment | Indoor |
| Outer jacket | PVC |
| Cable construction | Tight-buffered fibres with aramid yarn |
| Outer diameter | 4.5 mm |
| Nominal cable mass | 18 kg/km |
| Operating temperature | −40°C to +60°C |
| Tensile load (short / long term) | 1500 / 600 N |
| Crush load (short / long term) | 1000 / 300 N |
| Minimum bend radius (short / long term) | 20 × D / 10 × D, where D is the cable diameter |
| Tight buffer diameter | 0.9 mm |
| Net cable weight per meter | 0.018 kg (packaging excluded) |
| Price basis | Per meter |
Key Features
- 4 optical fibres: provides separate fibre paths for a structured cabling installation.
- Single Mode compatibility: choose matching 9/125 µm termination components and optical equipment.
- PVC jacket: suits the source-listed indoor cable construction.
- Tight-buffer format: supports controlled routing and preparation for fibre termination.
- Per-meter pricing: makes the cable cost basis clear when planning a run.
Product Information
The IKCOM IK-FOC-GJFJV-04-09R is a 4-fibre single mode cable for indoor optical cabling. Its 9/125 µm fibre format should be matched to compatible pigtails, connectors and transceivers. Fibre count describes the individual optical paths inside the cable; it does not represent a choice of cable lengths.
The tight-buffer construction is intended for organised indoor distribution and termination. Plan the route, termination enclosure and bend control before installation. The jacket designation alone does not establish a specific building fire classification; use only approvals documented for the supplied cable.
This listing is for bulk cable. Pre-fitted connectors, optical modules, patch panels and installation hardware are not listed as included. Link speed and usable distance depend on the complete optical link, including the transceivers, terminations, splices and loss budget.

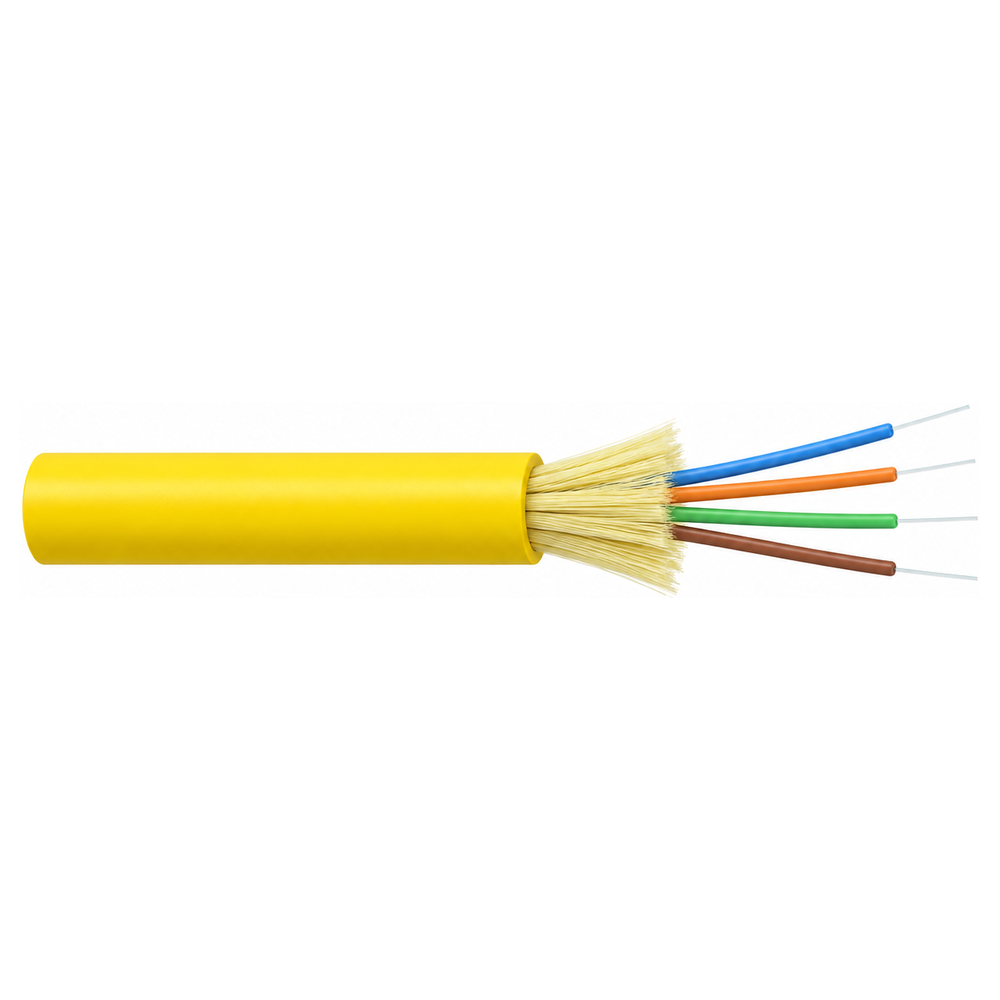

The displayed price is for one meter of cable. The illustration shows cable construction and does not indicate a supplied cut length.
Delivery: Island wide Ultra Delivery.
