Specifications
| Specification | Details |
|---|---|
| Brand | IKCOM |
| Brand origin / headquarters | Canada |
| Model | IK-FOC-GYXTC8S-06-M3P-BK |
| Supplier item number | 31395 |
| Fibre count | 6 |
| Fibre type | Multimode OM3 |
| Nominal fibre size | 50/125 µm |
| Intended environment | Aerial |
| Outer jacket | PE |
| Cable construction | Central loose tube, steel tape armour and messenger wire |
| Overall cross-section | 6.5 × 12 mm |
| Nominal cable mass | 46 kg/km |
| Operating temperature | −40°C to +60°C |
| Tensile load (short / long term) | 1500 / 600 N |
| Crush load (short / long term) | 1000 / 300 N |
| Minimum bend radius (short / long term) | 20 × D / 10 × D, where D is the cable diameter |
| Net cable weight per meter | 0.046 kg (packaging excluded) |
| Price basis | Per meter |
Key Features
- 6 optical fibres: provides separate fibre paths for a structured cabling installation.
- Multimode OM3 compatibility: choose matching 50/125 µm termination components and optical equipment.
- PE outer sheath: covers the cable assembly for its specified outdoor application.
- Figure-8 aerial construction: integrates a messenger section for supported overhead routing.
- Per-meter pricing: makes the cable cost basis clear when planning a run.
Product Information
The IKCOM IK-FOC-GYXTC8S-06-M3P-BK is a 6-fibre multimode om3 cable for aerial optical cabling. Its 50/125 µm fibre format should be matched to compatible pigtails, connectors and transceivers. Fibre count describes the individual optical paths inside the cable; it does not represent a choice of cable lengths.
The figure-8 construction separates the support messenger from the fibre-carrying section. Support hardware and span design must suit the actual cable, installation loading and route. A maximum span is not stated here because it has not been verified for this listing.
This listing is for bulk cable. Pre-fitted connectors, optical modules, patch panels and installation hardware are not listed as included. Link speed and usable distance depend on the complete optical link, including the transceivers, terminations, splices and loss budget.

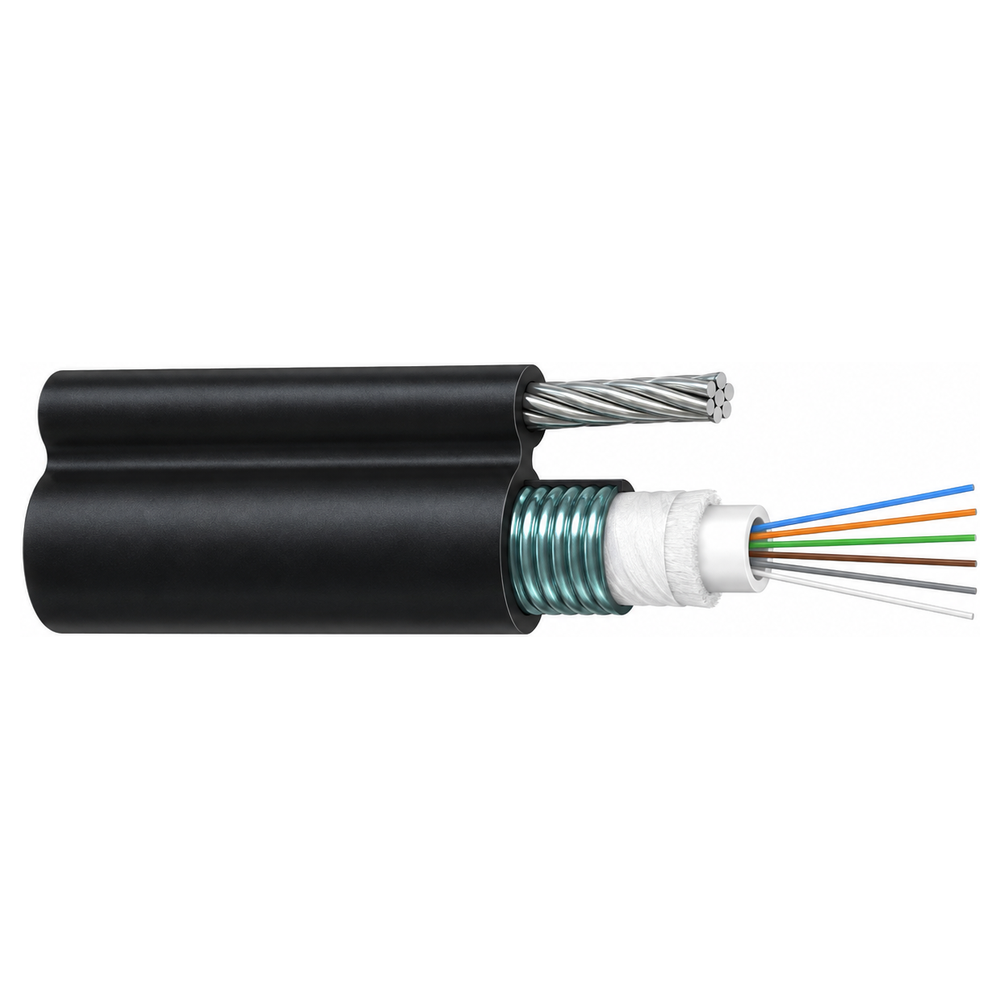

The displayed price is for one meter of cable. The illustration shows cable construction and does not indicate a supplied cut length.
Delivery: Island wide Ultra Delivery.
