Specifications
| Brand | Level One |
|---|---|
| Brand headquarters | Germany |
| Model | GEP-1061 |
| Product type | 10-Port Gigabit PoE L2 Managed Switch |
| Port configuration | 8 × 10/100/1000Mbps RJ45 PoE+ ports and 2 × 1000Mbps SFP slots |
| Concurrent network ports | 10 |
| Switching capacity | 20Gbps |
| PoE | 8 outputs; IEEE 802.3af/at/bt; 180W shared budget; ports 1–2 support up to 90W each; remaining ports up to 30W |
| MAC address table | 8 K entries |
| Jumbo frames | 10KB |
| Packet buffer | 4.1 Mbit |
| VLAN | Port-based and IEEE 802.1Q VLAN; up to 4096 VLANs/IDs; port isolation |
| QoS | Eight priority queues; IEEE 802.1p CoS; IPv4/IPv6 ToS/DSCP; ingress/egress rate control |
| Network resilience | STP, RSTP and MSTP |
| Link aggregation | IEEE 802.3ad LACP |
| Diagnostics | Local/remote port mirroring; event/error logs; RMON and Syslog |
| Management | Console, SNMP, web, Telnet and SSH; NTP/SNTP |
| Security | IEEE 802.1X, ACLs, port security, MAC filtering, DHCP v4/v6 Snooping and storm control |
| Flash memory | 16 MB |
| RAM size | 128 MB |
| Power supply | 100-240 VAC, 50-60 Hz |
| Power consumption | Less than 20W (switch only; excludes PoE output) |
| Dimensions (W x D x H) | 270 x 181 x 44 mm |
| Operating temperature | -10°C ~ 50°C |
| Operating humidity | 0% RH ~ 95% RH |
| Storage temperature | -40°C ~ 85°C |
| Mounting | 19″ rack mount, Desk mount |
| Included accessories | GEP-1061; Power Cord; 19″ Rack Mount Kit; Quick Installation Guide; EU Declaration of Conformity |
| Cooling | Fan-cooled |
| Product weight | 0.8kg (net product weight) |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Connect more equipment with 10 concurrent network ports and 20Gbps switching capacity for busy workgroups.
- Connect to fibre backbones through dedicated SFP slots while keeping the documented port speeds and transceiver compatibility in view.
- Power compatible cameras, access points and IP phones over Ethernet using a 180W shared PoE budget; size the connected load to stay within port and total limits.
- Control traffic with 802.1Q VLAN, eight-queue QoS, STP/RSTP/MSTP, ACLs, port mirroring, DHCP Snooping and PoE management to suit your office or surveillance network.
- Deploy in a ventilated network cabinet or equipment area using the documented mounting arrangement.
Product Information

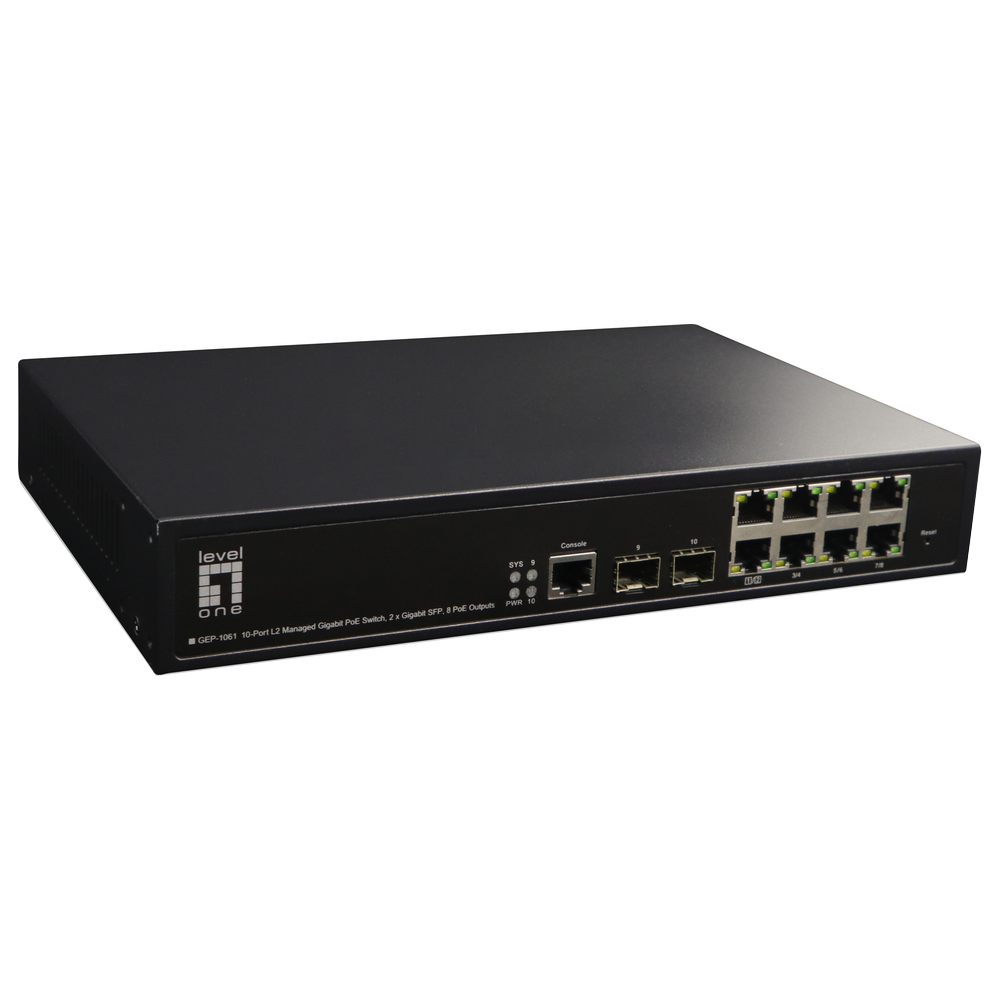

The Level One (Germany) 10-Port Gigabit PoE L2 Managed Switch with 2 SFP Slots – GEP-1061 brings IP surveillance, wireless access points and business telephony together on a single Gigabit switching platform. Its 10-port configuration gives installers a clear basis for planning endpoint connections and fibre uplinks. The management features let administrators organise traffic and monitor the network as it grows.
802.1Q VLAN, eight-queue QoS, STP/RSTP/MSTP, ACLs, port mirroring, DHCP Snooping and PoE management are supported. VLANs can separate network traffic and QoS can prioritise time-sensitive services when correctly configured. Select optical modules that match the documented slot speed, fibre type, distance and far-end equipment. Transceivers and fibre cables are optional and are not listed as supplied accessories.
The 180W PoE budget is shared across all powered ports; the per-port maximum does not mean every port can supply that maximum simultaneously. Check each powered device’s standard and maximum demand before installation. Leave ventilation clearance around the chassis and install it in an appropriately ventilated location. Use the documented power input, mounting method and operating environment. The supplied items are listed in the specifications; additional cabling, optical modules and other accessories should be selected separately for the installation.
Complete your network connections
Match cable performance to the installation and check the exact switch interfaces before choosing accessories.
