Specifications
| Brand | Level One |
|---|---|
| Brand headquarters | Germany |
| Model | GEP-1011 |
| Product type | 10-Port Gigabit PoE Unmanaged Switch |
| Port configuration | 8 × 10/100/1000Mbps RJ45 PoE+ ports, 1 × 10/100/1000Mbps RJ45 uplink port and 1 × 1000Mbps SFP slot |
| Concurrent network ports | 10 |
| Switching capacity | 20Gbps |
| PoE | 8 PoE outputs; IEEE 802.3af/at; 120W total budget; up to 30W per port, subject to the shared budget |
| MAC address table | 4K entries |
| Packet buffer | 1.5 Mbits |
| Packet forwarding rate | 14.88 Mpps |
| Management | Unmanaged; plug-and-play operation |
| Ethernet functions | Auto-negotiation, auto-MDI/MDIX and IEEE 802.3x flow control |
| Power consumption | 10W Without PoE |
| Dimensions (W x D x H) | 217.6 × 27.8 × 108.55 mm |
| Operating temperature | 0°C ~ 40°C |
| Operating humidity | 5% RH ~ 95% RH |
| Storage temperature | -45°C ~ 85°C |
| Storage humidity | 5% RH ~ 95% RH |
| Mounting | Wall mount |
| Included accessories | Power Cord; Power adapter; Quick Installation Guide; Declaration of Conformity |
| Cooling | Fanless |
| Product weight | 0.6kg (net product weight) |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Connect more equipment with 10 concurrent network ports and 20Gbps switching capacity for busy workgroups.
- Connect to fibre backbones through dedicated SFP slots while keeping the documented port speeds and transceiver compatibility in view.
- Power compatible cameras, access points and IP phones over Ethernet using a 120W shared PoE budget; size the connected load to stay within port and total limits.
- Set up quickly with automatic speed negotiation and automatic cable-pair detection, reducing manual configuration at the access layer.
- Keep workspaces quiet with a fanless design.
Product Information

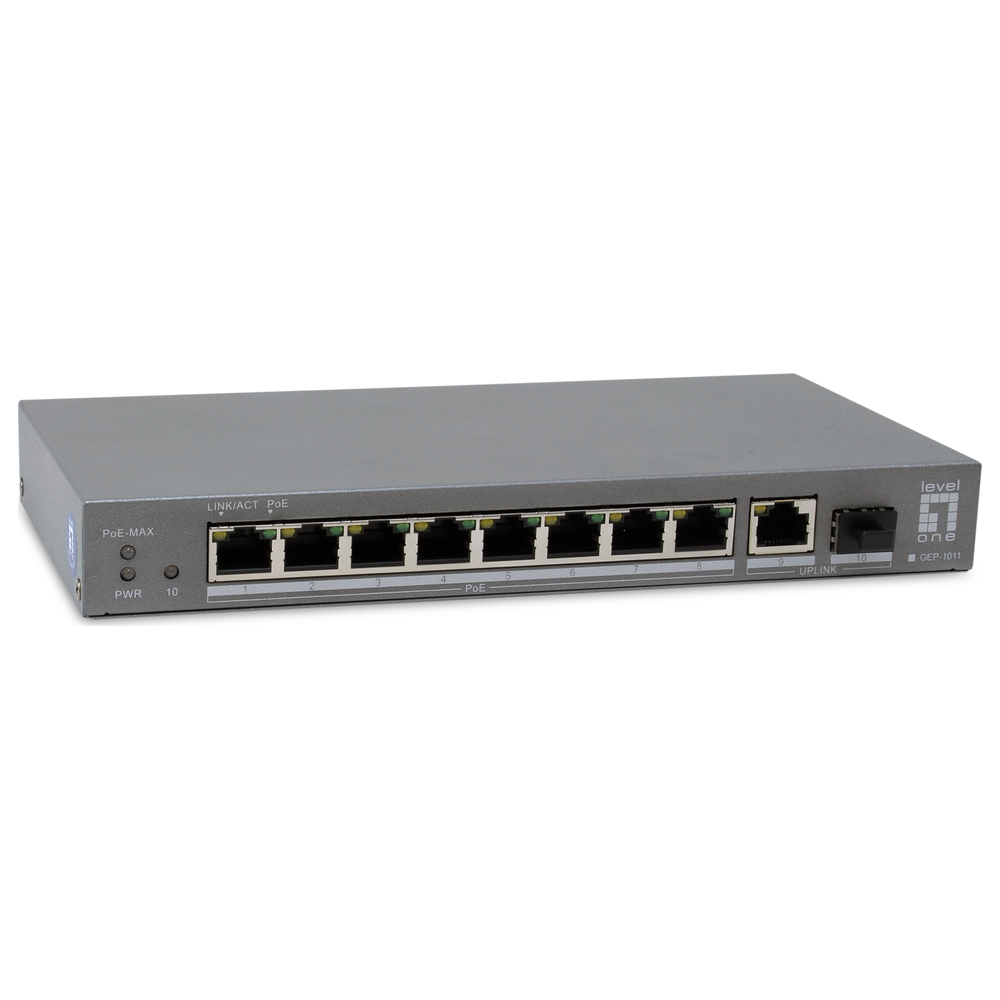

The Level One (Germany) 10-Port Gigabit PoE Unmanaged Switch with 1 SFP Slot – GEP-1011 brings IP surveillance, wireless access points and business telephony together on a single Gigabit switching platform. Its 10-port configuration gives installers a clear basis for planning endpoint connections and fibre uplinks. Its unmanaged design is suited to installations that need dependable wired connectivity with minimal setup.
Auto-negotiation, auto-MDI/MDIX, IEEE 802.3x flow control and front-panel status indicators are supported. Automatic Ethernet negotiation helps connect devices running at different supported link speeds. Select optical modules that match the documented slot speed, fibre type, distance and far-end equipment. Transceivers and fibre cables are optional and are not listed as supplied accessories.
The 120W PoE budget is shared across all powered ports; the per-port maximum does not mean every port can supply that maximum simultaneously. Check each powered device’s standard and maximum demand before installation. Fanless cooling suits quiet spaces, but ventilation openings must remain clear. Use the documented power input, mounting method and operating environment. The supplied items are listed in the specifications; additional cabling, optical modules and other accessories should be selected separately for the installation.
Complete your network connections
Match cable performance to the installation and check the exact switch interfaces before choosing accessories.
