Specifications
| Brand / headquarters | Level One / Germany |
|---|---|
| Model | OSW-1031 |
| Product type | 10-Port Outdoor Gigabit Unmanaged PoE Switch with 2 SFP Uplinks |
| Ports | 8 × 10/100/1000Mbps PoE RJ45 ports and 2 × Gigabit SFP slots |
| Performance | 20Gbps switching capacity |
| Management | Unmanaged |
| PoE supported | Yes |
| Net product weight | 8 kg |
| Power consumption | 120 Watt |
| Color | White |
| Fanless | No |
| Grade | Industrial |
| Enclosure rating | IP55 |
| Indicators | Power/ Link Act |
| Jumbo frames | 9K bytes |
| MAC address table | 4K |
| Mount | Pole mount |
| Packet buffer | 12KB |
| Power input | VAC100-240V, 50/60Hz |
| Power supply | Industrial Power included |
| Power supply included | Yes |
| Operating humidity | 0% RH ~ 90% RH |
| Operating temperature | -20°C ~ 65°C |
| Storage humidity | 0% RH ~ 90% RH |
| Storage temperature | -40°C ~ 75°C |
| Included accessories | Quick Installation Guide EC Declaration of Conformity Pole Mount Ring 7″ Waterproof Pad x 2 Box Key |
| EAN | 4015867236437 |
| PoE output | 8 × IEEE 802.3af/at; up to 30W per port; 115W shared budget |
| Fibre organisation | 4 SC fibre-tray positions |
| Electrical protection | 6kV surge; 6kV contact / 8kV air ESD |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Connect with confidence: 8 × 10/100/1000Mbps PoE RJ45 ports and 2 × Gigabit SFP slots provide the verified interfaces for this model.
- Support daily network traffic with 20Gbps switching capacity.
- Power compatible devices using the documented shared PoE budget of 115W.
- Reduce setup steps with unmanaged operation and the model’s documented hardware controls.
- Choose practical installation options: Pole mount.
Product Information

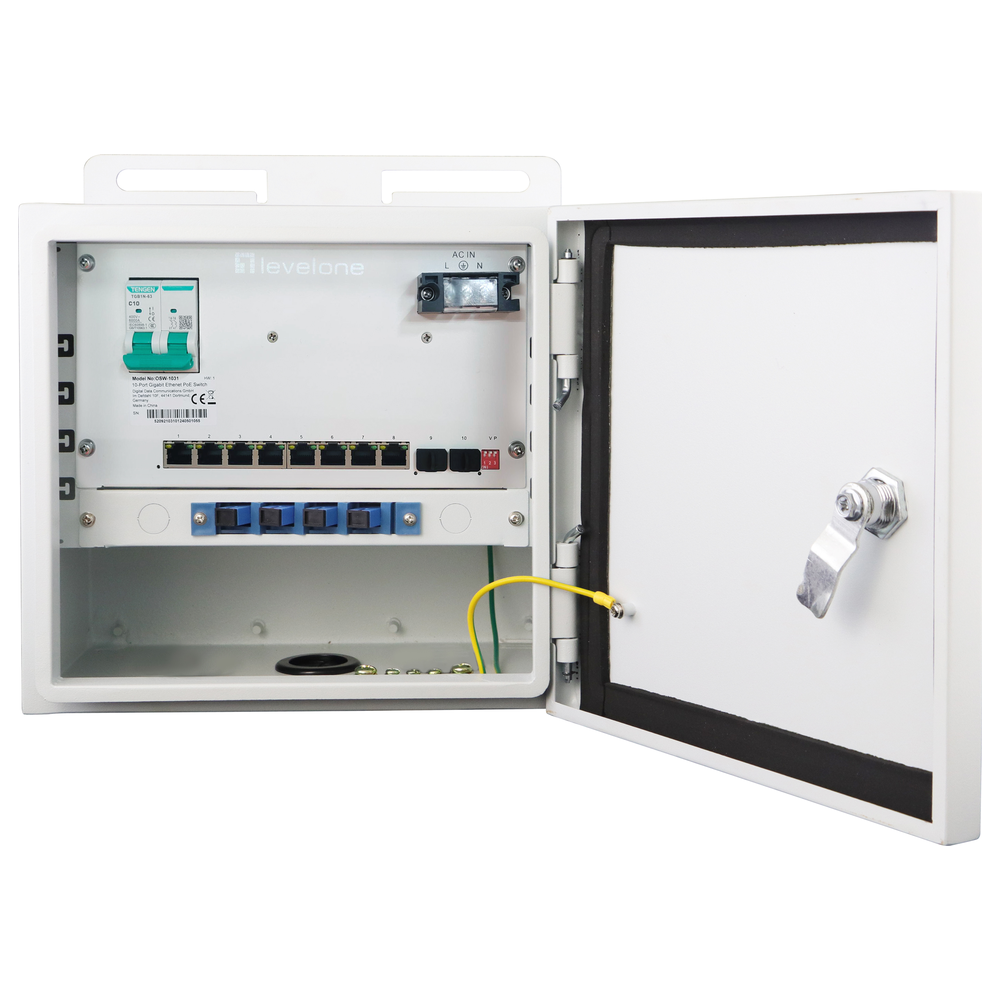

Bring Gigabit data and PoE connectivity to outdoor camera or access-point installations using the IP55 weatherproof enclosure. Two SFP uplinks provide fibre connection options, while the integrated industrial power supply and supplied pole-mount ring support deployment close to connected equipment.
The eight IEEE 802.3af/at outputs share 115W, with up to 30W per port; total device demand must remain within that budget. Compatible SFP modules are selected separately. In VLAN isolation mode, ports 1–8 communicate through the uplinks and flow control is disabled. Correct enclosure sealing and suitable installation practices are required to maintain weather protection.
Use the included accessories listed above when planning installation; any external power supply or optical module not listed as included must be sourced separately. Choose this model when its documented port speeds, power requirements and operating environment match the intended installation.
Complete your network connections
Match cable performance to the installation and check the exact switch interfaces before choosing accessories.
