Specifications
| Brand | Level One |
|---|---|
| Brand headquarters | Germany |
| Model | GEP-2821 |
| Product type | 28-Port Gigabit PoE Unmanaged Switch |
| Port configuration | 24 × 10/100/1000Mbps RJ45 PoE+ ports, 2 × 10/100/1000Mbps RJ45 uplink ports and 2 × 1000Mbps SFP slots |
| Concurrent network ports | 28 |
| Switching capacity | 56Gbps |
| PoE | 24 PoE outputs; IEEE 802.3af/at; 390W total budget; up to 30W per port, subject to the shared budget |
| MAC address table | 8K entries |
| Management | Unmanaged; plug-and-play operation |
| Ethernet functions | Auto-negotiation, auto-MDI/MDIX and IEEE 802.3x flow control |
| Port isolation | DIP-switch VLAN mode isolates PoE ports 1–24 from one another while retaining uplink access |
| Power supply | AC100-240V, 50/60Hz |
| Dimensions (W x D x H) | 442 x 285 x 44 mm |
| Operating temperature | -10°C ~ 50°C |
| Operating humidity | 0% RH ~ 90% RH |
| Storage temperature | -40°C ~ 85°C |
| Mounting | 19″ rack mount, Desk mount |
| Included accessories | GEP-2821; Quick Installation Guide; Power Cord; 19″ Rack Mount Kit |
| Cooling | Fan-cooled |
| Product weight | 4kg (net product weight) |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Connect more equipment with 28 concurrent network ports and 56Gbps switching capacity for busy workgroups.
- Connect to fibre backbones through dedicated SFP slots while keeping the documented port speeds and transceiver compatibility in view.
- Power compatible cameras, access points and IP phones over Ethernet using a 390W shared PoE budget; size the connected load to stay within port and total limits.
- Set up quickly with automatic speed negotiation and automatic cable-pair detection, reducing manual configuration at the access layer.
- Deploy in a ventilated network cabinet or equipment area using the documented mounting arrangement.
Product Information

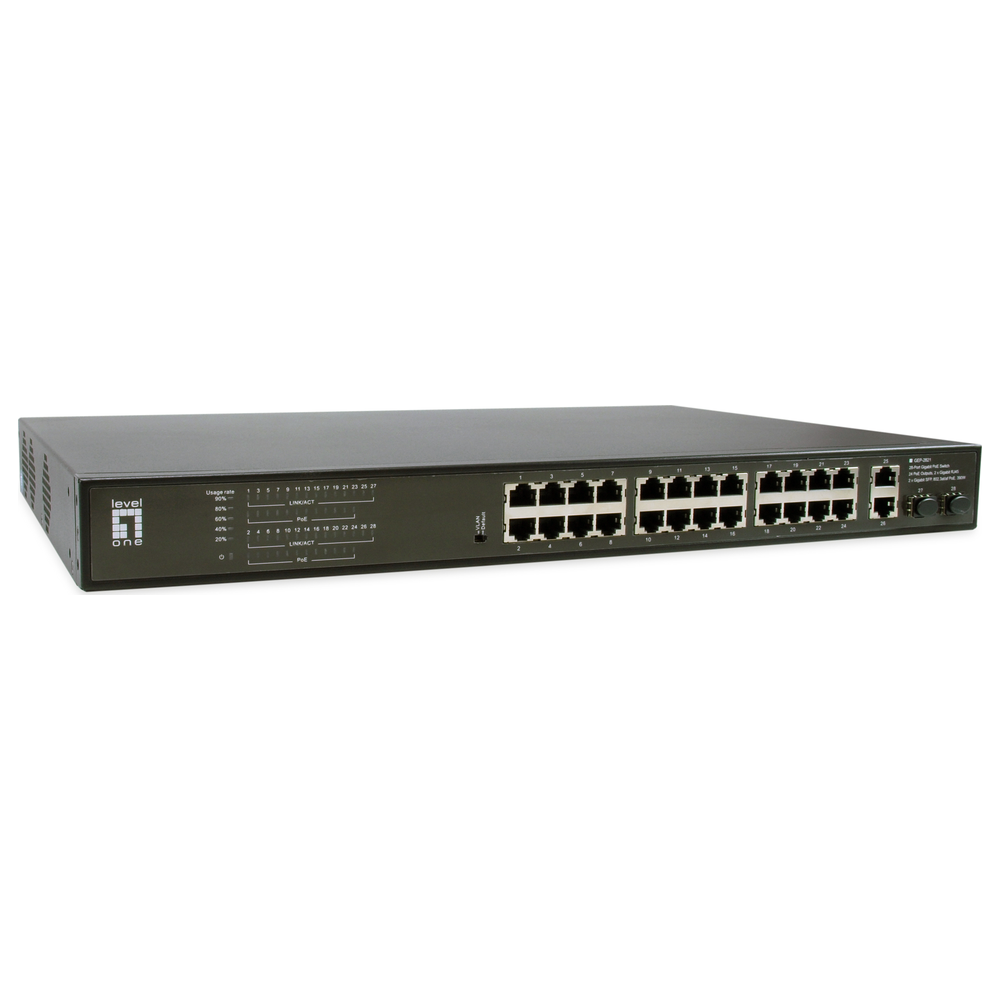

The Level One (Germany) 28-Port Gigabit PoE Unmanaged Switch with 2 SFP Slots – GEP-2821 brings IP surveillance, wireless access points and business telephony together on a single Gigabit switching platform. Its 28-port configuration gives installers a clear basis for planning endpoint connections and fibre uplinks. Its unmanaged design is suited to installations that need dependable wired connectivity with minimal setup.
Auto-negotiation, auto-MDI/MDIX, IEEE 802.3x flow control and front-panel status indicators plus selectable port isolation are supported. Automatic Ethernet negotiation helps connect devices running at different supported link speeds. Select optical modules that match the documented slot speed, fibre type, distance and far-end equipment. Transceivers and fibre cables are optional and are not listed as supplied accessories.
The 390W PoE budget is shared across all powered ports; the per-port maximum does not mean every port can supply that maximum simultaneously. Check each powered device’s standard and maximum demand before installation. Leave ventilation clearance around the chassis and install it in an appropriately ventilated location. Use the documented power input, mounting method and operating environment. The supplied items are listed in the specifications; additional cabling, optical modules and other accessories should be selected separately for the installation.
