Specifications
| Brand | Level One |
|---|---|
| Brand headquarters | Germany |
| Model | GEP-0523 |
| Product type | 5-Port Gigabit PoE Unmanaged Switch |
| Port configuration | 4 × 10/100/1000Mbps RJ45 PoE+ ports, 1 × 10/100/1000Mbps RJ45 uplink port |
| Concurrent network ports | 5 |
| Switching capacity | 10Gbps |
| PoE | 4 PoE outputs; IEEE 802.3af/at; 60W total budget; up to 30W per port, subject to the shared budget |
| MAC address table | 8K entries |
| Jumbo frames | 9KB |
| Management | Unmanaged; plug-and-play operation |
| Ethernet functions | Auto-negotiation, auto-MDI/MDIX and IEEE 802.3x flow control |
| Power input | 52VDC @ 1.25A 65W |
| Dimensions (W x D x H) | 96 x 30 x 111 mm |
| Operating temperature | -10°C ~ 50°C |
| Operating humidity | 5% RH ~ 90% RH |
| Storage temperature | -20°C ~ 75°C |
| Storage humidity | 5% RH ~ 90% RH |
| Mounting | Desk mount |
| Included accessories | GEP-0523; Quick Installation Guide; Power adapter with power cord |
| Cooling | Fanless |
| Product weight | 0.35kg (net product weight) |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Connect more equipment with 5 concurrent network ports and 10Gbps switching capacity for busy workgroups.
- Power compatible cameras, access points and IP phones over Ethernet using a 60W shared PoE budget; size the connected load to stay within port and total limits.
- Set up quickly with automatic speed negotiation and automatic cable-pair detection, reducing manual configuration at the access layer.
- Keep workspaces quiet with a fanless design.
- Check link and power status at the front panel to make routine connection checks faster.
Product Information

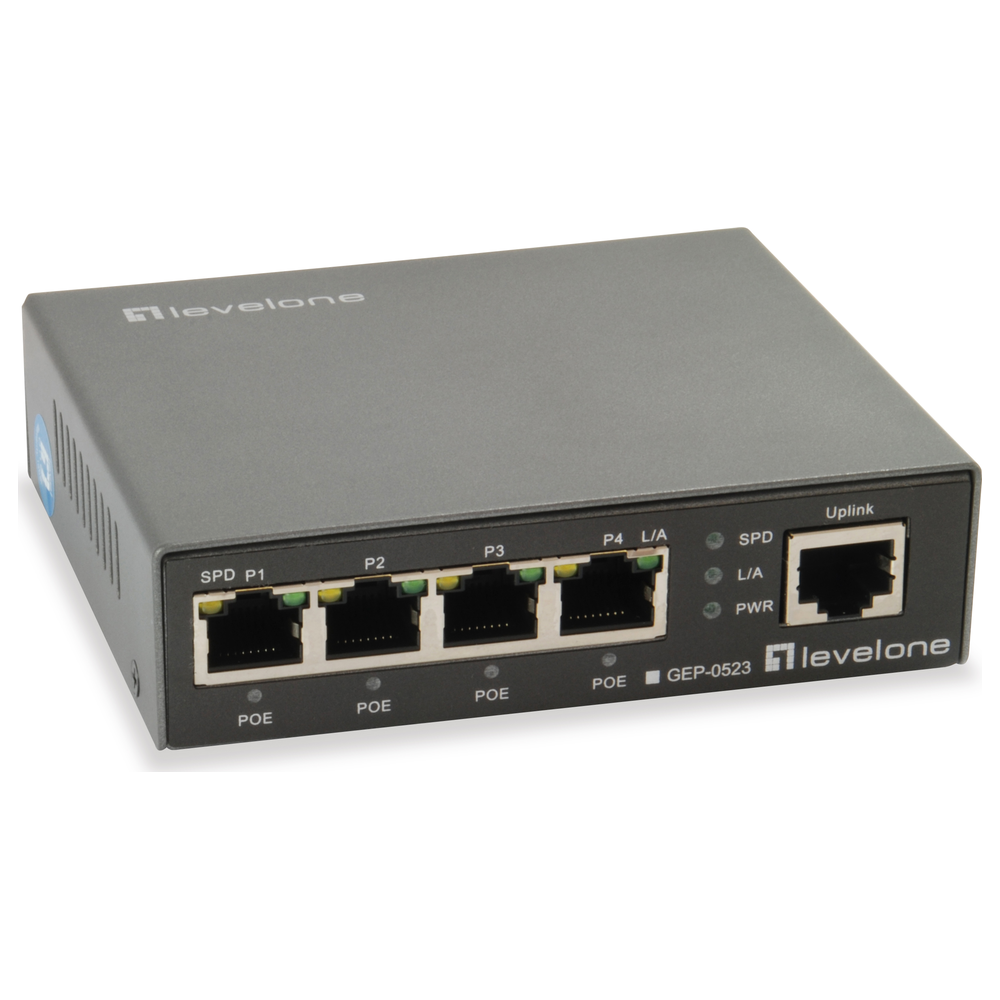

The Level One (Germany) 5-Port Gigabit PoE Unmanaged Switch – GEP-0523 brings IP surveillance, wireless access points and business telephony together on a single Gigabit switching platform. Its 5-port configuration gives installers a clear basis for planning endpoint connections. Its unmanaged design is suited to installations that need dependable wired connectivity with minimal setup.
Auto-negotiation, auto-MDI/MDIX, IEEE 802.3x flow control and front-panel status indicators are supported. Automatic Ethernet negotiation helps connect devices running at different supported link speeds.
The 60W PoE budget is shared across all powered ports; the per-port maximum does not mean every port can supply that maximum simultaneously. Check each powered device’s standard and maximum demand before installation. Fanless cooling suits quiet spaces, but ventilation openings must remain clear. Use the documented power input, mounting method and operating environment. The supplied items are listed in the specifications; additional cabling, optical modules and other accessories should be selected separately for the installation.
