Specifications
| Brand / headquarters | Level One / Germany |
|---|---|
| Model | IFS-0501 |

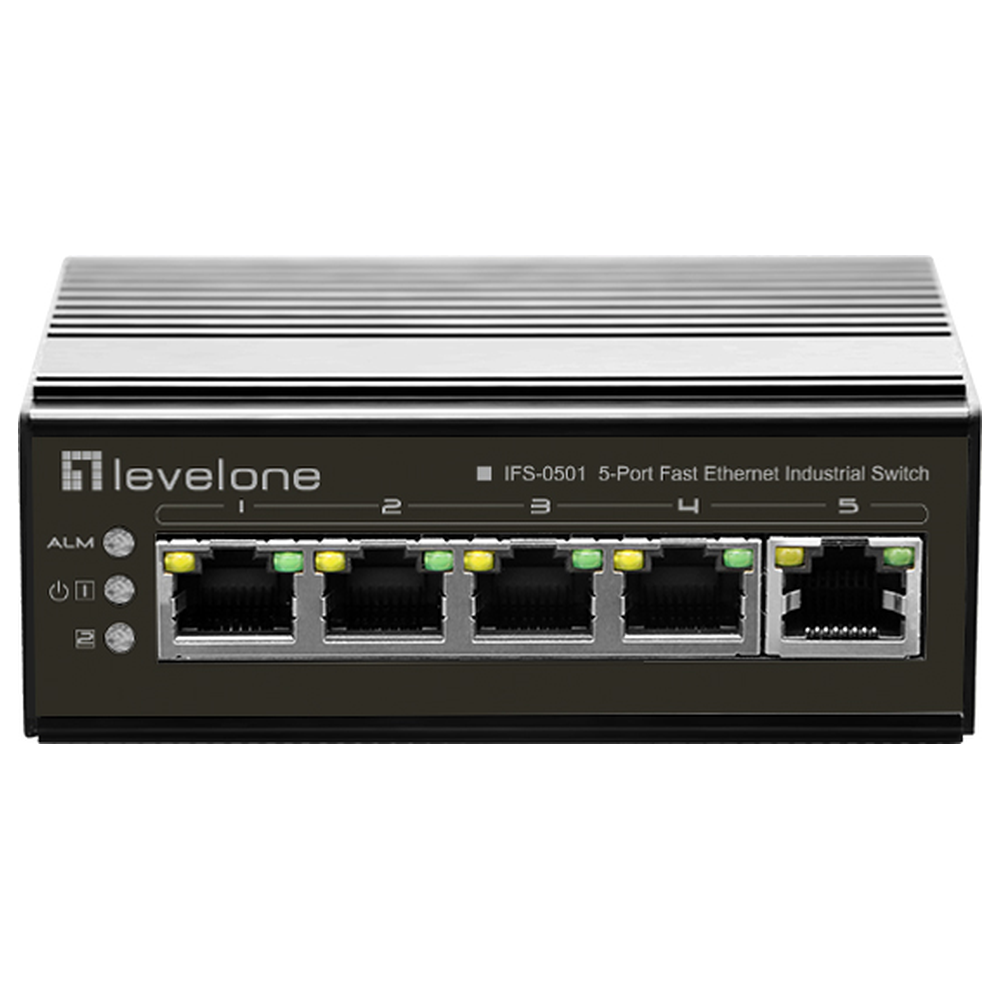

| Product type | 5-Port Industrial Fast Ethernet Unmanaged Switch |
| Ports | 5 × 10/100Mbps RJ45 ports |
| Performance | 1Gbps switching capacity |
| Management | Unmanaged |
| PoE supported | No |
| Net product weight | 0.35 kg |
| Power consumption | <5W |
| Color | Black |
| Fanless | Yes |
| Grade | Industrial |
| Indicators | Power /Lin Act |
| MAC address table | 8K |
| Mount | DIN rail mount |
| Power input | VDC 12-60 |
| Power supply included | No |
| Operating humidity | 0% RH ~ 95% RH |
| Operating temperature | -40°C ~ 75°C |
| Storage humidity | 0% RH ~ 95% RH |
| Storage temperature | -40°C ~ 80°C |
| Included accessories | Power Terminal Block, Quick Installation Guide, Din-rail Mount Kit |
| EAN | 4015867224229 |
| Electrical protection | 6kV surge; 6kV contact / 8kV air ESD |
| Alarm | Relay alarm for power loss and network failure |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Connect with confidence: 5 × 10/100Mbps RJ45 ports provide the verified interfaces for this model.
- Support daily network traffic with 1Gbps switching capacity.
- Connect devices without configuring a management interface.
- Keep equipment areas quiet with a fanless design.
- Install where needed using din rail mount.
Product Information
Extend wired connectivity to control cabinets, factory equipment or other industrial installations using 5 Fast Ethernet ports. The compact DIN-rail format and wide operating temperature range support deployment where ordinary office switches may be unsuitable.
Use a suitable external 12–60V DC power supply, which is sold separately. This switch does not supply PoE, so connected devices require their own power. A relay alarm supports power-loss and network-fault notification.
Use the included accessories listed above when planning installation; any external power supply or optical module not listed as included must be sourced separately. Choose this model when its documented port speeds, power requirements and operating environment match the intended installation.
