Specifications
| Brand / headquarters | Level One / Germany |
|---|---|

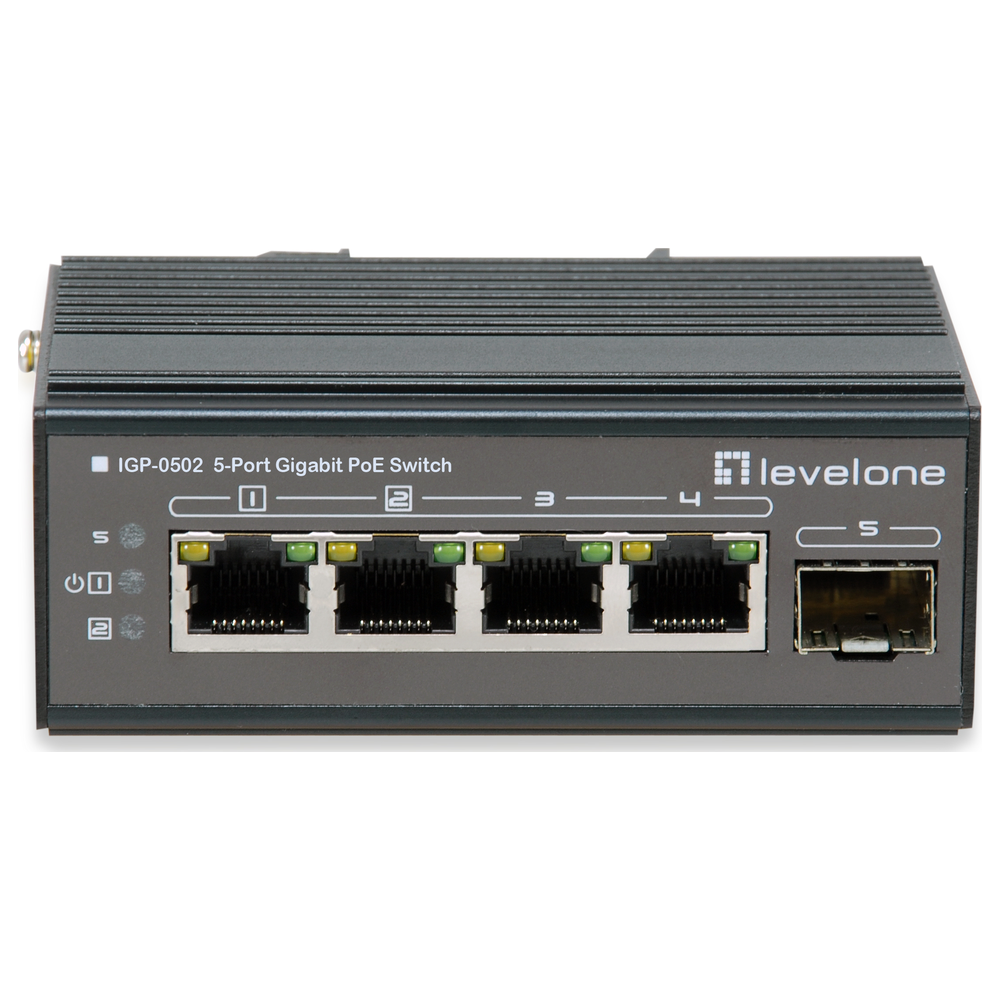

| Model | IGP-0502 |
| Product type | 5-Port Industrial Gigabit Unmanaged PoE+ Switch with SFP Uplink |
| Ports | 4 × 10/100/1000Mbps PoE RJ45 ports and 1 × Gigabit SFP slot |
| Performance | 10Gbps switching capacity |
| Management | Unmanaged |
| PoE supported | Yes |
| Net product weight | 0.35 kg |
| Power Redundancy | Dual Power Input |
| Power consumption | <5W (switch only; PoE device demand is additional) |
| Color | Black |
| Dimensions (W × D × H) | 65 x 36 x 101 mm |
| Fanless | Yes |
| Grade | Industrial |
| Enclosure rating | IP40 |
| Indicators | Power, Link/Act |
| Jumbo frames | 9 KB |
| MAC address table | 8K |
| Mount | DIN rail mount |
| Power input | Redundant Dual DC 48V-57V |
| Power supply | VDC 48~57V, (Power supply unit is to be ordered separately) |
| Power supply included | No |
| Operating humidity | 10% RH ~ 90% RH |
| Operating temperature | -40°C ~ 75°C |
| Storage humidity | 5% RH ~ 95% RH |
| Storage temperature | -40°C ~ 85°C |
| Included accessories | IGP-0502 Quick Installation Guide |
| EAN | 4015867228173 |
| PoE output | 4 powered RJ45 ports; 120W shared budget; IEEE 802.3af/at; up to 30W per port |
| Electrical protection | 6kV surge; 6kV contact / 8kV air ESD |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Connect with confidence: 4 × 10/100/1000Mbps PoE RJ45 ports and 1 × Gigabit SFP slot provide the verified interfaces for this model.
- Support daily network traffic with 10Gbps switching capacity.
- Power compatible devices using the documented shared PoE budget of 120W.
- Deploy without a software configuration step using unmanaged switching.
- Choose practical installation options: DIN rail mount.
Product Information
Connect industrial Ethernet devices at Gigabit speeds while using the SFP uplink for a suitable fibre connection. The fanless IP40 enclosure and DIN-rail mounting suit protected industrial cabinets, and redundant DC inputs provide power-source flexibility.
A suitable 48–57V DC power supply is required and sold separately. Size the supply for the switch and the combined connected-device load within the shared 120W PoE budget. Select a compatible Gigabit SFP transceiver separately; fibre reach depends on the chosen module and cable.
Use the included accessories listed above when planning installation; any external power supply or optical module not listed as included must be sourced separately. Choose this model when its documented port speeds, power requirements and operating environment match the intended installation.
Complete your network connections
Match cable performance to the installation and check the exact switch interfaces before choosing accessories.
