Specifications
| Brand | Level One |
|---|---|
| Brand headquarters | Germany |
| Model | GTP-5271 |
| Product type | 52-Port Gigabit PoE L3 Lite Managed Switch |
| Port configuration | 48 × 10/100/1000Mbps RJ45 PoE+ ports and 4 × 1/2.5/10Gbps SFP+ slots |
| Concurrent network ports | 52 |
| Switching capacity | 336Gbps |
| PoE | 48 PoE outputs; IEEE 802.3af/at; 400W total budget; up to 30W per port, subject to the shared budget |
| MAC address table | 16 K entries |
| Jumbo frames | 10KB |
| Packet buffer | 12 Mbits |
| VLAN | IEEE 802.1Q, MAC-based, protocol-based and IP-based VLAN; Q-in-Q |
| QoS | Traffic classification, rate limiting, SP/WRR scheduling |
| Multicast | IGMP v1/v2/v3 Snooping |
| Link aggregation | IEEE 802.3ad LACP |
| Network resilience | STP, RSTP, MSTP and G.8032 ERPS |
| Routing | IPv4/IPv6 static routing |
| Management | Web, SNMP v1/v2c/v3, SSH, Telnet and IPv6 management; LLDP, RMON, NTP and Syslog |
| Diagnostics | Ping, traceroute, temperature monitoring and optical transceiver DDM |
| Security | ACLs, IEEE 802.1X, RADIUS, port security, IP source guard and ARP filtering |
| Flash memory | 512 MB |
| RAM size | 256 MB |
| Power supply | 100-240 VAC, 50-60 Hz |
| Power consumption | 440W (full loading PoE on) |
| Acoustic noise (dB) | 45 |
| Dimensions (W x D x H) | 440 x 300 x 44 mm |
| Operating temperature | 0°C ~ 50°C |
| Operating humidity | 10% RH ~ 90% RH |
| Storage temperature | -40°C ~ 75°C |
| Storage humidity | 5% RH ~ 90% RH |
| Mounting | 19″ rack mount, Desk mount |
| Included accessories | GTP-5271; Console Cable; Power Cord; 19″ Rack Mount Kit; Quick Installation Guide; Declaration of Conformity |
| Cooling | Fan-cooled |
| Product weight | 4.2kg (net product weight) |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Connect more equipment with 52 concurrent network ports and 336Gbps switching capacity for busy workgroups.
- Connect to fibre backbones through dedicated SFP+ slots while keeping the documented port speeds and transceiver compatibility in view.
- Power compatible cameras, access points and IP phones over Ethernet using a 400W shared PoE budget; size the connected load to stay within port and total limits.
- Control traffic with VLAN, QoS, IGMP v1/v2/v3 Snooping, link aggregation, STP/RSTP/MSTP, ACLs and IPv4/IPv6 static routing to suit your office or surveillance network.
- Deploy in a ventilated network cabinet or equipment area using the documented mounting arrangement.
Product Information

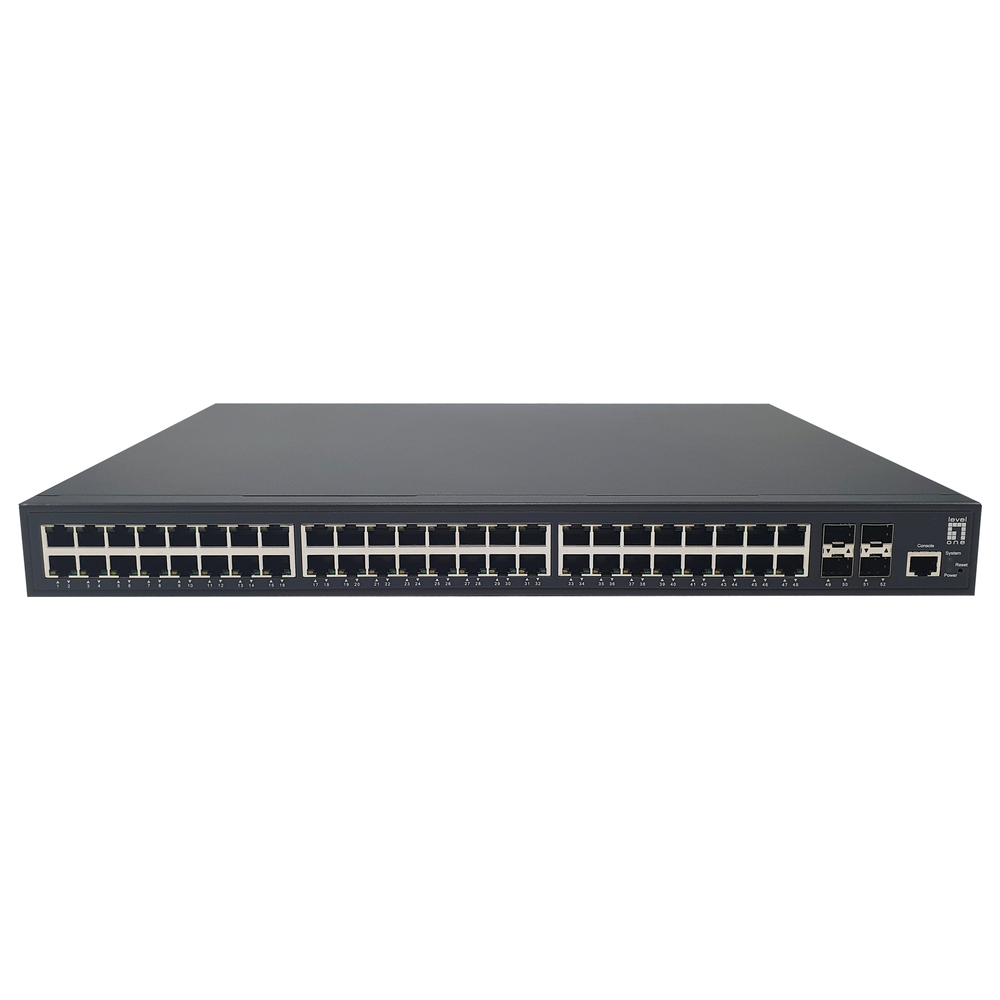

The Level One (Germany) 52-Port Gigabit PoE L3 Lite Managed Switch with 4 10G SFP+ Uplinks – GTP-5271 brings IP surveillance, wireless access points and business telephony together on a single Gigabit switching platform. Its 52-port configuration gives installers a clear basis for planning endpoint connections and fibre uplinks. The management features let administrators organise traffic and monitor the network as it grows.
VLAN, QoS, IGMP v1/v2/v3 Snooping, link aggregation, STP/RSTP/MSTP, ACLs and IPv4/IPv6 static routing are supported. VLANs can separate network traffic and QoS can prioritise time-sensitive services when correctly configured. Select optical modules that match the documented slot speed, fibre type, distance and far-end equipment. Transceivers and fibre cables are optional and are not listed as supplied accessories.
The 400W PoE budget is shared across all powered ports; the per-port maximum does not mean every port can supply that maximum simultaneously. Check each powered device’s standard and maximum demand before installation. Leave ventilation clearance around the chassis and install it in an appropriately ventilated location. Use the documented power input, mounting method and operating environment. The supplied items are listed in the specifications; additional cabling, optical modules and other accessories should be selected separately for the installation.
Complete your network connections
Match cable performance to the installation and check the exact switch interfaces before choosing accessories.
