Specifications
| Specification | Details |
|---|---|
| Brand | Level One |
| Model | GEU-0821 |
| Product Type | Gigabit Ethernet Network Switch |
| Switch Type | Unmanaged |
| Total Ethernet Ports | 8 |
| Port Type | RJ45 |
| Ethernet Speed | 10/100/1000Mbps |
| Data Rate | Up to 1Gbps per Port |
| Switching Capacity / Backplane | 16Gbps |
| Jumbo Frame | Up to 9KB |
| MAC Address Table | 8K Entries |
| MAC Learning | Automatic |
| MAC Aging | Automatic |
| Switching Method | Store-and-Forward |
| Auto-Negotiation | Yes |
| Auto-MDI/MDIX | Yes |
| VLAN Isolation | Yes |
| VLAN Control | DIP Switch On / Off |
| Energy Saving | IEEE 802.3az Energy Efficient Ethernet |
| PoE Support | No |
| Manageable | No |
| Fanless | Yes |
| LED Indicators | Power, Link / Activity |
| Mounting | Desktop / Wall Mount |
| Power Input | 5V DC, 1.0A |
| Power Supply | External Power Adapter |
| Power Consumption | Approx. 3.5W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% RH to 90% RH |
| Storage Humidity | 5% RH to 90% RH |
| Dimensions (W × D × H) | 160.9 × 71.6 × 26.3mm |
| Product Weight | Approx. 0.12kg |
| Colour | Black |
| EAN / GTIN | 4015867228319 |
Key Features
- 8 × 10/100/1000Mbps Gigabit Ethernet RJ45 Ports
- 16Gbps Switching Capacity
- Gigabit Wire-Speed Switching
- 9K Jumbo Frame Support
- 8K MAC Address Table
- Automatic MAC Address Learning
- Automatic MAC Address Aging
- VLAN Isolation Mode
- VLAN isolation controlled through a convenient DIP switch
- Auto-Negotiation on all ports
- Auto-MDI/MDIX on all Ethernet ports
- Store-and-Forward Switching Architecture
- Non-Blocking Switching Fabric
- Full-Duplex Gigabit Operation
- IEEE 802.3az Energy Efficient Ethernet
- Fanless Design for silent operation
- Unmanaged Plug-and-Play Operation
- Desktop or Wall-Mount Installation
- Compact Design
- Low Power Consumption
- Non-PoE Network Switch
Network Standards
- IEEE 802.3 – 10BASE-T Ethernet
- IEEE 802.3u – 100BASE-TX Fast Ethernet
- IEEE 802.3ab – 1000BASE-T Gigabit Ethernet
- IEEE 802.3az – Energy Efficient Ethernet
Ideal For
The Level One GEU-0821 is suitable for:
- Home networks
- Small offices
- SOHO environments
- Business networks
- Desktop computers
- Network printers
- NAS storage systems
- Servers
- Routers
- Wireless access points
- CCTV and NVR network connectivity
- Smart TVs and media players
- Gaming systems
- IoT network segmentation
- Guest network applications
- General Gigabit network expansion
Package Contents

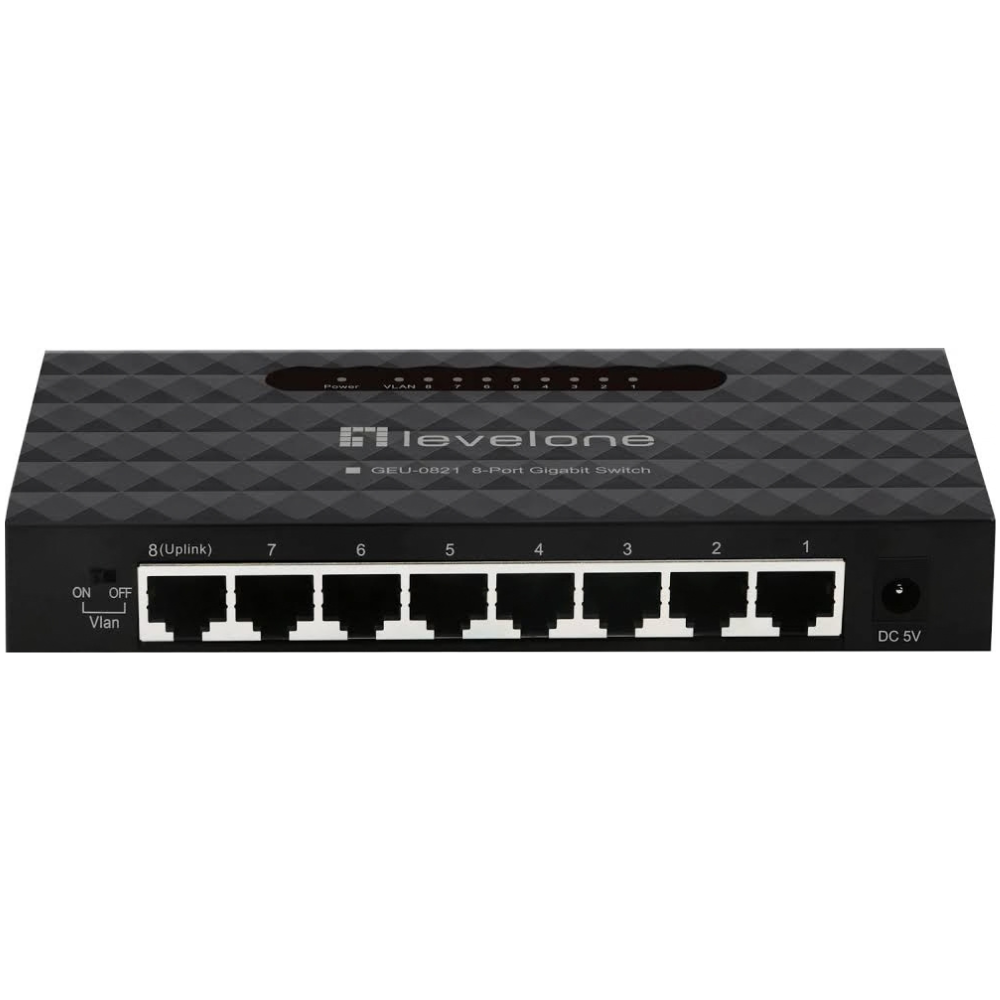

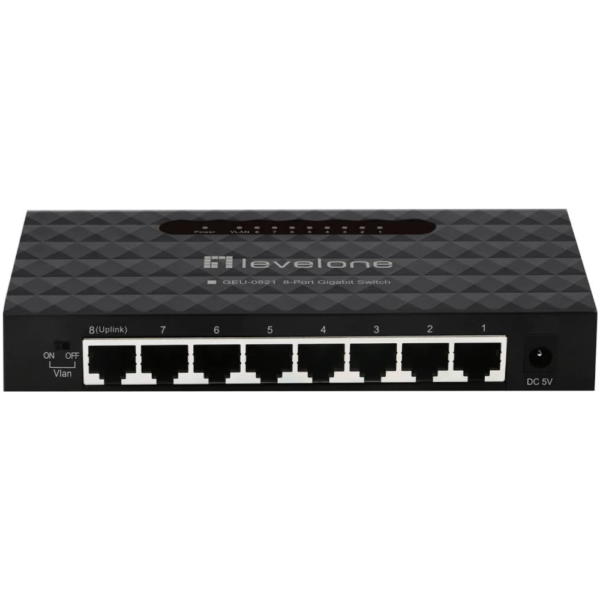

- 1 × Level One GEU-0821 8-Port Gigabit Switch
- 1 × External Power Adapter
- 1 × Quick Installation Guide
- 1 × Declaration of Conformity
Complete your network connections
Match cable performance to the installation and check the exact switch interfaces before choosing accessories.
