Specifications
| Brand / headquarters | Level One / Germany |
|---|---|
| Model | IGS-2106 |

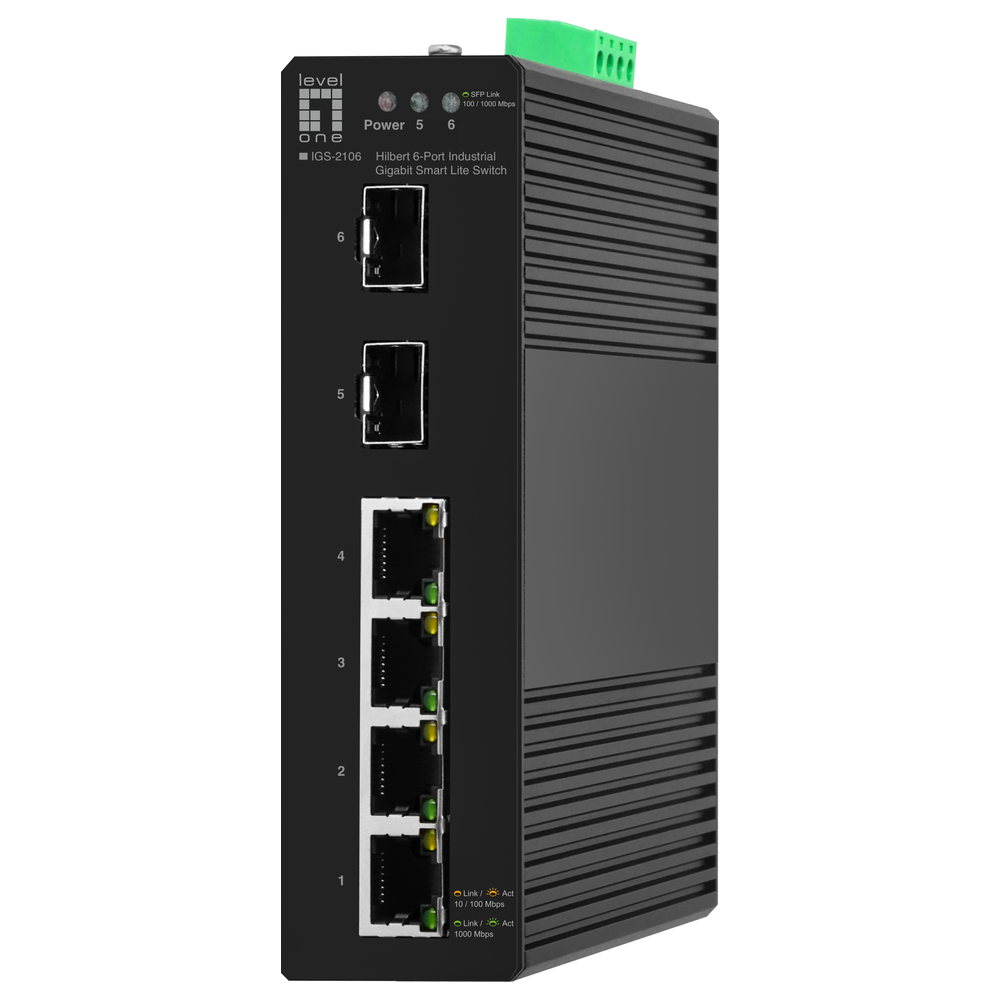

| Product type | Hilbert 6-Port Industrial Gigabit Smart Lite Managed Switch with 2 SFP Slots |
| Ports | 4 × 10/100/1000Mbps RJ45 ports and 2 × 100/1000Mbps SFP slots |
| Performance | 12Gbps switching capacity |
| Management | Web-managed Smart Lite |
| PoE supported | No |
| Net product weight | 0.45 kg |
| Power Redundancy | Dual Power Input |
| Power consumption | 6 W |
| Color | Black |
| Dimensions (W × D × H) | 136 x 108 x 38.5 mm |
| Fanless | Yes |
| Grade | Industrial |
| Enclosure rating | IP30 |
| Flash memory size | 2 MB |
| Packet forwarding rate | 8.928 Mpps |
| Indicators | Power, Link/Act |
| Jumbo frames | 9 KB |
| MAC address table | 2 K |
| Mount | DIN rail mount |
| Packet buffer | 1.5 Mbits |
| Power input | Redundant Dual DC 12V/24V/48V |
| Power supply | VDC 12~57V |
| Power supply included | No |
| Operating humidity | 10% RH ~ 90% RH |
| Operating temperature | -40°C ~ 75°C |
| Storage humidity | 5% RH ~ 95% RH |
| Storage temperature | -40°C ~ 85°C |
| Included accessories | ● IGS-2106 ● Power Terminal Block ● Din-rail Mount Kit ● Quick Installation Guide ● Declaration of Conformity |
| EAN | 4015867236161 |
| VLAN | Up to 32 VLANs from 4096 IDs; MTU, port-based and IEEE 802.1Q VLAN |
| QoS | Port / IEEE 802.1p / DSCP priority; 4 priority queues; rate limiting; storm control |
| Layer 2 functions | IGMP Snooping; static link aggregation; port mirroring; cable test; STP/RSTP |
| Management interface | Web GUI; LevelOne IP Locator |
| Electrical protection | 4kV surge; 6kV contact / 8kV air ESD |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Connect with confidence: 4 × 10/100/1000Mbps RJ45 ports and 2 × 100/1000Mbps SFP slots provide the verified interfaces for this model.
- Support daily network traffic with 12Gbps switching capacity.
- Separate and prioritise traffic using VLAN, four-queue QoS and rate limiting.
- Simplify maintenance with a web interface, port mirroring and cable testing.
- Install in demanding environments with DIN-rail mounting and −40°C to 75°C operation.
Product Information
Build a manageable Gigabit network in an industrial enclosure, with traffic separation and prioritisation available through a web interface. VLAN and QoS controls help organise device groups and important traffic, while cable testing and port mirroring support troubleshooting. The fanless DIN-rail design operates from −40°C to 75°C.
This non-PoE switch requires an external 12–57V DC supply, sold separately, and supports redundant DC inputs. Connected equipment needs its own power. Choose compatible 100/1000Mbps SFP modules separately to match the fibre network.
Use the included accessories listed above when planning installation; any external power supply or optical module not listed as included must be sourced separately. Choose this model when its documented port speeds, power requirements and operating environment match the intended installation.
