Specifications
| Brand | Level One |
|---|---|
| Brand headquarters | Germany |
| Model | GEP-2651 |
| Product type | 26-Port Gigabit PoE Web Smart Managed Switch |
| Port configuration | 24 × 10/100/1000Mbps RJ45 PoE+ ports and 2 × 1000Mbps RJ45/SFP combo ports |
| Concurrent network ports | 26 |
| Switching capacity | 52Gbps |
| PoE | 24 PoE outputs; IEEE 802.3af/at; 185W total budget; up to 30W per port, subject to the shared budget |
| Combo port operation | Each RJ45/SFP pair shares one logical port; use copper or fibre for that port, not both simultaneously |
| Series | TURING |
| MAC address table | 8 K entries |
| Jumbo frames | 9KB |
| VLAN | Up to 256 VLANs and 4096 VLAN IDs; port-based, IEEE 802.1Q and MAC-based VLAN; Q-in-Q |
| QoS | IEEE 802.1p CoS and DSCP traffic prioritisation |
| Multicast | IGMP v1/v2/v3 Snooping, querier and proxy |
| Link aggregation | IEEE 802.3ad LACP |
| Routing | Static routing |
| Network resilience | STP, RSTP and MSTP |
| Diagnostics and management | DMS device discovery and monitoring; web management; port mirroring |
| IP support | IPv4/IPv6 dual stack |
| Flash memory | 32 MB |
| RAM size | 128 MB |
| Power supply | 100-240 VAC, 50-60 Hz |
| Dimensions (W x D x H) | 442 x 211 x 44 mm |
| Operating temperature | 0°C ~ 45°C |
| Operating humidity | 10% RH ~ 90% RH |
| Storage temperature | -20°C ~ 70°C |
| Storage humidity | 10% RH ~ 90% RH |
| Mounting | 19″ rack mount, Desk mount |
| Included accessories | GEP-2651 Power Cord 19″ Rack Mount Kit Quick Installation Guide Resource CD (User Manual, QIG) |
| Cooling | Fan-cooled |
| Product weight | 3.1kg (net product weight) |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Connect more equipment with 26 concurrent network ports and 52Gbps switching capacity for busy workgroups.
- Choose copper or fibre uplinks through shared combo ports while keeping the documented port speeds and transceiver compatibility in view.
- Power compatible cameras, access points and IP phones over Ethernet using a 185W shared PoE budget; size the connected load to stay within port and total limits.
- Control traffic with VLAN, QoS, IGMP v1/v2/v3 Snooping, static routing, link aggregation and Device Management System (DMS) to suit your office or surveillance network.
- Deploy in a ventilated network cabinet or equipment area using the documented mounting arrangement.
Product Information

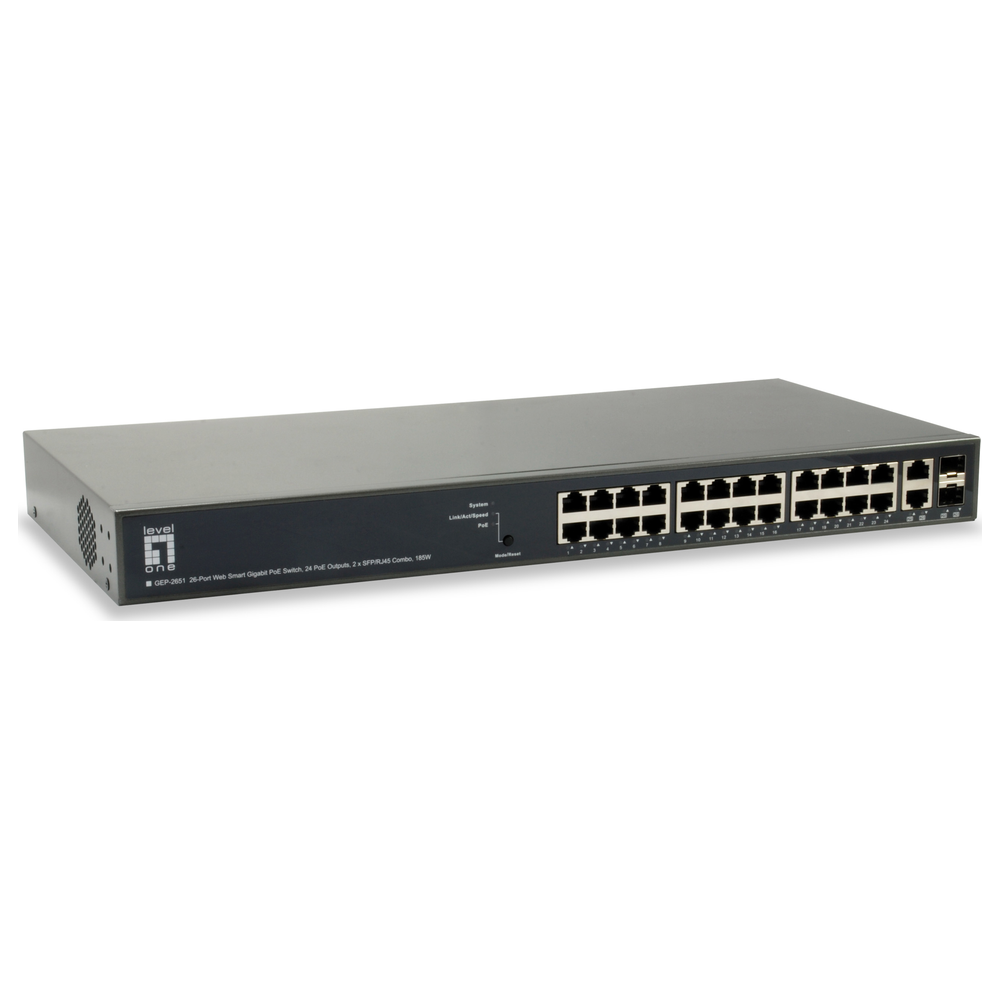

The Level One (Germany) Turing 26-Port Gigabit PoE Web Smart Managed Switch with 2 SFP/RJ45 Combo Ports – GEP-2651 brings IP surveillance, wireless access points and business telephony together on a single Gigabit switching platform. Its 26-port configuration gives installers a clear basis for planning endpoint connections and fibre uplinks. The management features let administrators organise traffic and monitor the network as it grows.
VLAN, QoS, IGMP v1/v2/v3 Snooping, static routing, link aggregation and Device Management System (DMS) are supported. VLANs can separate network traffic and QoS can prioritise time-sensitive services when correctly configured. The combo uplinks share their copper and optical connections; the two connectors in each pair do not add extra concurrent ports. Select optical modules that match the documented slot speed, fibre type, distance and far-end equipment. Transceivers and fibre cables are optional and are not listed as supplied accessories.
The 185W PoE budget is shared across all powered ports; the per-port maximum does not mean every port can supply that maximum simultaneously. Check each powered device’s standard and maximum demand before installation. Leave ventilation clearance around the chassis and install it in an appropriately ventilated location. Use the documented power input, mounting method and operating environment. The supplied items are listed in the specifications; additional cabling, optical modules and other accessories should be selected separately for the installation.
Complete your network connections
Match cable performance to the installation and check the exact switch interfaces before choosing accessories.
