Specifications
| Brand headquarters / origin | PLANET / Taiwan |
|---|---|
| Model | IGS-1020PTF |
| Copper Ports | 8 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| PoE Injector Ports | 8 ports with 802.3at PoE+ injector function (Ports 1 to 8) |
| SFP Slots | 2 1000BASE-SX/LX/BX SFP interfaces (Ports 9 to 10) Compatible with 100BASE-FX SFP |
| Connector | Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
| DIP Switch | Standard/Extend mode (Extend mode for Ports 5 to 8 only) |
| Power Requirements | 48~54V DC, 7A (max.) |
| Power Consumption | Max. 5.6 watts/19BTU@54V DC input (System) Max. 7.28 watts/24BTU@54V DC input (Ethernet Full Loading) Max. 265.1 watts/904BTU@54V DC input (Ethernet + PoE Full Loading) |
| Dimensions (W x D x H) | 66 x 107 x 152 mm |
| Weight | 837g |
| Enclosure | IP30 metal case |
| Installation | DIN-rail/ wall-mount/side wall-mount |
| ESD Protection | 6KV |
| LED Indicators | 3 x LED for System and Power: Green : DC Power 1 Green : DC Power 2 Red : Power Fault Alarm 8 x LED for PoE Copper Port (Ports 1 to 8): Green : LNK/ACT (10/100/1000Mbps) Amber : PoE-in-Use 2 x LED for 100/1000X Fiber Port (Ports 9 to 10): Green : LNK/ACT (100/1000Mbps) Amber : 1000Mbps 4 x LED for PoE Usage Amber : 60W, 120W, 180W and 240W |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 20Gbps |
| Throughput (packet per second) | 14.8Mpps@64bytes |
| Address Table | 8K entries |
| Buffer Memory | 4M bits on-chip buffer memory |
| Jumbo Frame | 9Kbytes |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| Power Pin Assignment | 1/2 (+), 3/6 (-) |
| PoE Power Output | Per port 48~54V DC. Max. 30 watts |
| PoE Power Budget (max.) | 240W maximum |
| Max. Number of Class 3 PDs@25W | 8 |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3at Power over Ethernet Plus IEEE 802.3af Power over Ethernet |
| Temperature | Operating: -40~75 degrees C Storage: -40~85 degrees C |
| Humidity | Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing) |
| Extend mode | Ports 5–8 only; up to 250m at 10Mbps |
| Management | Unmanaged |
| PoE | IEEE 802.3at PoE+ output |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Connect eight compatible powered Gigabit devices.
- Use two dual-speed SFP slots for optical uplinks.
- Plan loads within 30W per port and 240W total PoE.
- Select extended operation for ports 5–8 when distance matters.
- Mount in industrial cabinets across a −40–75°C range.
Product Information

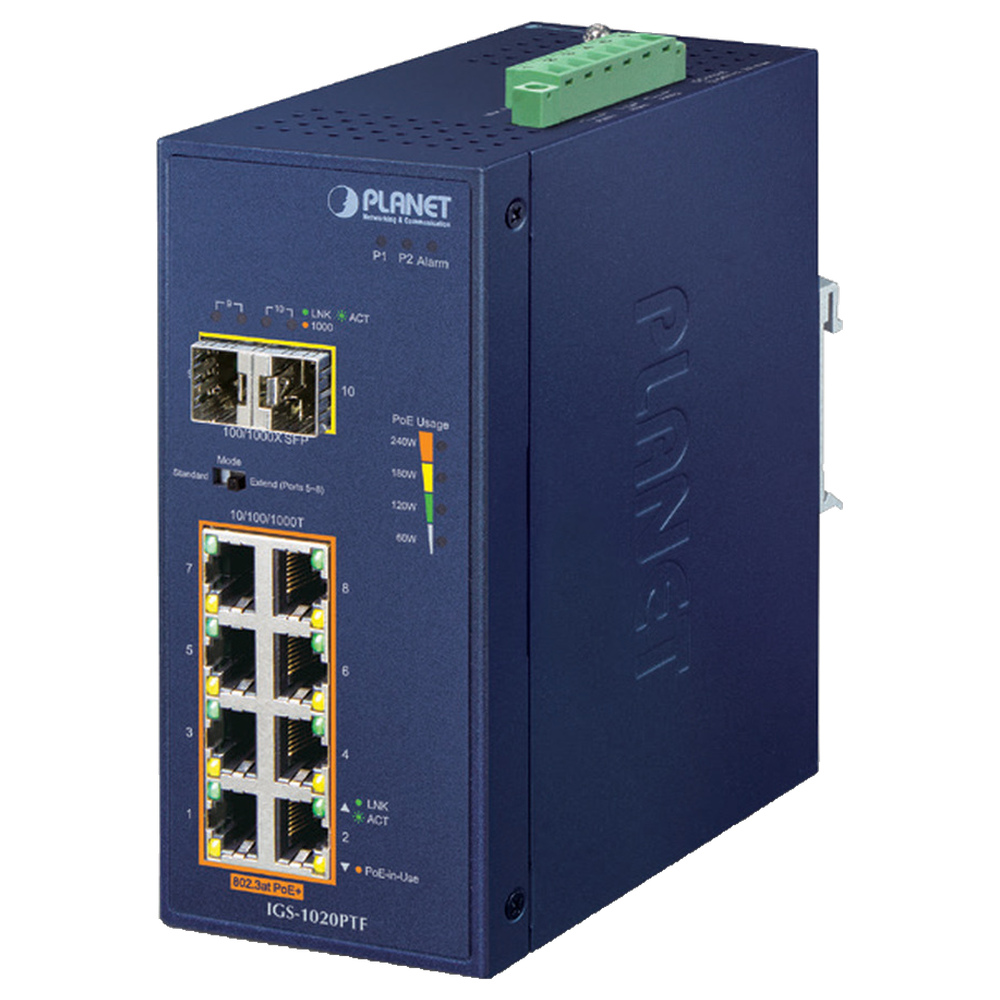

IGS-1020PTF hardware version 2 combines eight PoE+ access ports with two fiber uplinks. A suitable 48–54V DC supply supports a maximum 240W total PoE budget, with up to 30W at each PSE port. Actual endpoint power is subject to negotiation and cable loss. This model does not have the low-voltage booster of a different variant.
The DIP switch selects Standard or Extend mode. Extended operation applies only to ports 5–8 and supports up to 250m at 10Mbps, trading speed for reach. The switch is unmanaged, so it needs no software configuration for ordinary forwarding. Choose supported SFP optics and a suitably rated external power supply separately.
Complete your network connections
Match cable performance to the installation and check the exact switch interfaces before choosing accessories.
