Specifications
| Brand headquarters / origin | PLANET / Taiwan |
|---|---|
| Model | IGS-624HPT |
| Copper Ports | 4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| PoE Injector Ports | Four ports with 802.3at PoE+ injector function (Ports 1 to 4) |
| SFP Slots (Auto Detection) | Two 100/1000/2500BASE-SX/LX/BX SFP interface (Ports 5 to 6) |
| DIP Switch | Switch (default)/fiber redundant mode |
| Connector | Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
| Power Requirements | 12~54V DC, 7A (max.) Redundant power with reverse polarity protection |
| Alarm | Provides one relay output for power failure Alarm relay current carry ability: 1A @ 24V DC |
| Power Consumption | Max. 7.56 watts/25.77BTU (Ethernet Full Loading) Max. 140 watts/477.4BTU (Ethernet + PoE Full Loading) |
| Dimensions(W x D x H) | 50 x 86.1 x 135 mm |
| Weight | 635g |
| Enclosure | IP40 metal case |
| Installation | DIN-rail kit and wall-mount kit |
| ESD Protection | 6KV |
| LED | System: Power 1 ( Green ) Power 2 ( Green ) Fault Alarm ( Red ) Per 10/100/1000T RJ45 PoE+ Port (Port 1~Port 4) LNK/ACT ( Green ) PoE-in-Use ( Amber ) Per SFP Interface: (Port 5~Port 6) 1000 LNK/ACT ( Green ) 100/2500 LNK/ACT ( Amber ) PoE Usage: 30W, 60W, 90W, 120W ( Amber ) |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 18Gbps |
| Throughput (packet per second) | 13.39Mpps@64bytes |
| Address Table | 4K entries |
| Buffer Memory | 1M bits on-chip buffer memory |
| Jumbo Frame | 12.2Kbytes |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Output | IEEE 802.3af Standard Per port 48V~51V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard Per port 51V~54V DC (depending on the power supply), max. 36 watts |
| PoE Power Budget (max.) | 60W@12V DC input 90W@24V DC input 120W@48V-54 DC input |
| Max. Number of Class 4 PDs | 4 |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.3at Power over Ethernet Plus PSE IEEE 802.3af Power over Ethernet Plus IEEE 802.1p Class of Service |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing) |
| Management | Unmanaged |
| PoE | IEEE 802.3at PoE+ output |
| Store warranty | 3 YEARS WARRANTY |
| Supplied accessories | User’s manual sheet, DIN-rail kit, wall-mounting kit, 4 RJ45 dust caps and 2 SFP dust caps. |
Key Features
- Connect and power four compatible PoE access devices.
- Use fiber uplinks at up to 2.5Gbps with supported modules.
- Select switch or fiber-redundancy mode by DIP switch.
- Support installation supplies across 12–54V DC.
- Monitor power status and total PoE usage locally.
Product Information

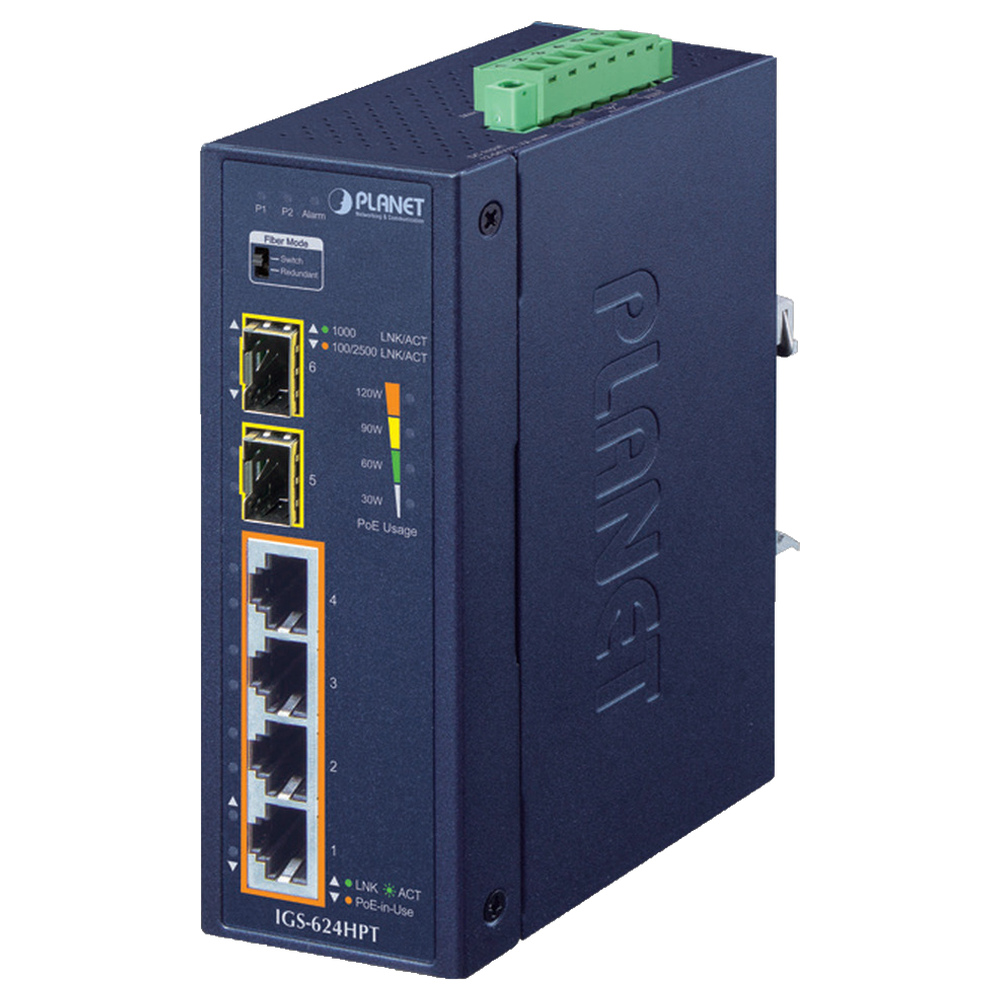

IGS-624HPT combines four Gigabit PoE+ access ports with two multirate fiber slots. It is an unmanaged industrial switch with hardware fiber-redundancy selection. The manufacturer lists up to 36W PSE output per port; connected devices must negotiate a supported IEEE 802.3af/at power class and remain within the total budget.
The available PoE budget depends on the supply: 60W at 12V DC, 90W at 24V DC and 120W at 48–54V DC. Size the external power supply for the switch and all connected loads; the documented maximum full-load consumption is 140W. Select SFP modules separately and protect the IP40 enclosure appropriately for the installation.
Complete your network connections
Match cable performance to the installation and check the exact switch interfaces before choosing accessories.
