Specifications
| Brand headquarters | ATEN — Taiwan |
|---|---|
| Model | CL3700NW |
| Computer Connections — Direct | 1 |
| Computer Connections — Console Selection | Hotkey |
| Connectors — KVM Ports | 1 x HDMI Female; 1 x USB Type B Female |
| Connectors — Firmware Upgrade | 1 x 3.5mm Audio Jack Female (Black) |
| Connectors — Power | 1 x IEC 60320/C14 |
| Connectors — External Console Ports | 1 x HDMI Female; 2 x USB Type A Female |
| Connectors — External Mouse / Peripheral | 1 x USB Type A Female (Front) |
| Switches — Reset | 1 x Semi-recessed Pushbutton |
| Switches — Firmware Upgrade | 1 x Slide Switch |
| Switches — Power | 1 x Rocker Switch |
| Switches — LCD Control | 4 x Pushbutton |
| Switches — LCD Power | 1 x LED Pushbutton |
| LEDs — Power | 1 x KVM Console (Dark Green); 1 x LCD (Orange) |
| LEDs — Lock | 1 x Num Lock (Green); 1 x Caps Lock (Green); 1 x Scroll Lock (Green) |
| LEDs — LED Illumination Light | 1 x LED Illumination Light |
| Panel Spec — LCD Module | 18.5″ TFT-LCD |
| Panel Spec — Resolution | 1920 x 1080 @ 60 Hz |
| Panel Spec — Response time | 20 ms |
| Panel Spec — Viewing Angle | 178° (H), 178° (V) |
| Panel Spec — Pixel Pitch | 0.213 mm x 0.213 mm |
| Panel Spec — Support Color | 16.77M colors |
| Panel Spec — Contrast Ratio | 1000 : 1 |
| Panel Spec — Luminance | 350 cd/m² |
| Input Video Resolution | up to 1920 x 1200 @ 60Hz; 1920 x 1080 @ 60 Hz, DDC2B |
| Emulation — Keyboard / Mouse | USB |
| Maximum Input Power Rating | 100–240 V AC, 50/60 Hz, 1 A |
| Power Consumption | AC110V:23.3W:124BTU/h; AC220V:23.9W:127BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental — Operating Temperature | 0–40°C |
| Environmental — Storage Temperature | -20–60°C |
| Environmental — Humidity | 0–80% RH, Non-condensing |
| Physical Properties — Housing | Metal + Plastic |
| Physical Properties — Rail Type | Single Rail |
| Physical Properties — Weight | 9.10 kg ( 20.04 lb ) |
| Physical Properties — Dimensions (L x W x H) | 48.06 x 47.70 x 4.28 cm ; (18.92 x 18.78 x 1.69 in.) |
| Physical Properties — Body Dimensions(L x W x H) | 44.92 x 43.00 x 4.28 cm |
| Supplied accessories | 1x CL3700 LCD KVM Console with Standard Rack Mount Kit; 1x USB HDMI KVM Cable (HDMI, USB, Audio; 1.8 m/6 ft); 1x Firmware Upgrade Cable; 1x Power Cord; 1x User Instructions |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Use an integrated 18.5-inch full-HD display for local administration.
- Fit a short-depth console into a compatible 1U rack position.
- Operate with the built-in USB keyboard and touchpad.
- Connect an additional compatible external console.
- Connect supported HDMI video equipment.
Product Information

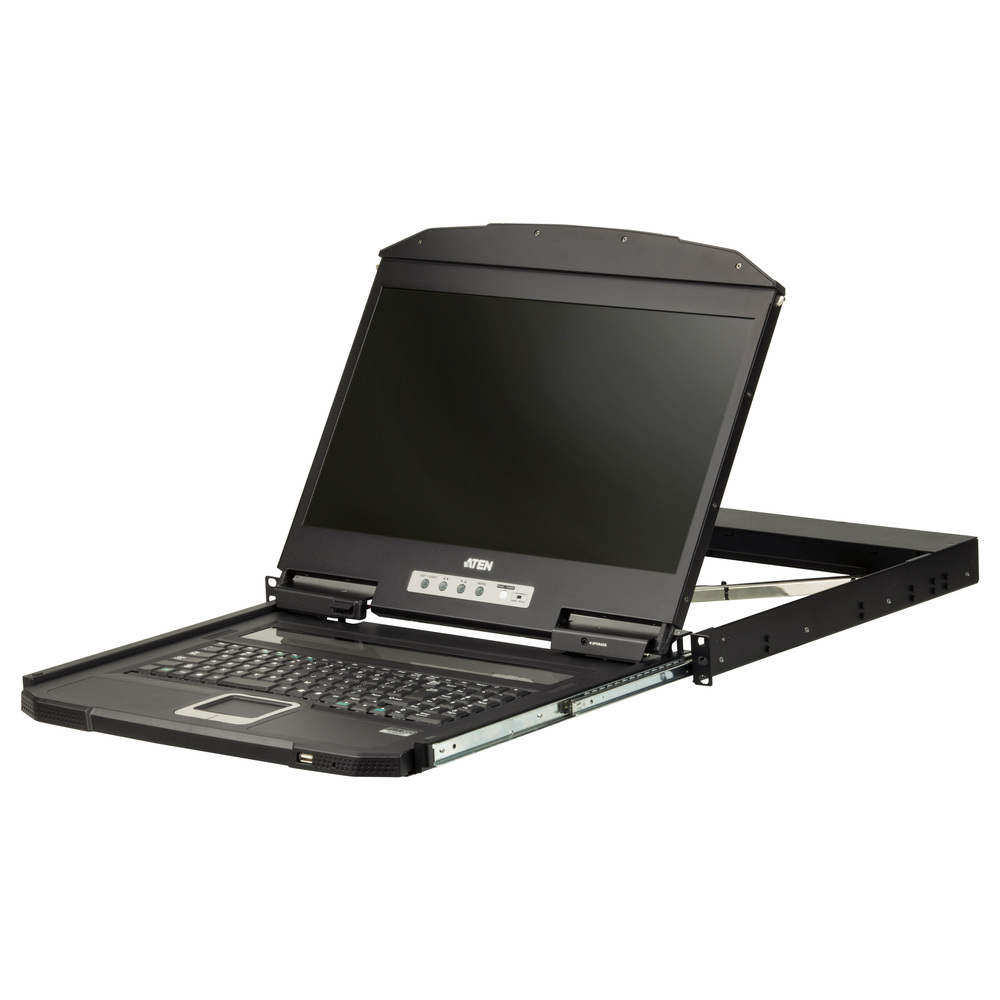

Provide a compact local operating console for a compatible server or KVM switch in a shallow rack. The 18.5-inch widescreen display makes full-HD desktop content practical to view, while the integrated keyboard and touchpad keep the operating controls in the rack. The screen and keyboard slide together in the single rail drawer for convenient storage.
This is a single console rather than a multi-port KVM switch. The panel is 1920 x 1080 even where a higher input timing is accepted. Check rack depth; optional easy-install kits are separate.
Included: 1x CL3700 LCD KVM Console with Standard Rack Mount Kit; 1x USB HDMI KVM Cable (HDMI, USB, Audio; 1.8 m/6 ft); 1x Firmware Upgrade Cable; 1x Power Cord; 1x User Instructions.
