Specifications
| Brand headquarters | ATEN — Taiwan |
|---|---|
| Model | CE750A |
| Connectors — Console Ports | CE750AL: 2 x USB Type A Female (White); 1 x HDB-15 Female (Blue); 1 x Mini Stereo Jack Female (Green); 1 x Mini Stereo Jack Female (Pink); CE750AR: 2 x USB Type A Female (White); 1 x HDB-15 Female (Blue); 1 x Mini Stereo Jack Female (Green); 1 x Mini Stereo Jack Female (Pink) |
| Connectors — KVM Ports | CE750AL: 1 x SPHD-15 Female (Yellow); 1 x Mini Stereo Jack Female (Green); 1 x Mini Stereo Jack Female (Pink); CE750AR: N/A |
| Connectors — RS-232 | CE750AL: 1 x DB-9 Female (Black); CE750AR: 1 x DB-9 Male (Black) |
| Connectors — Power | CE750AL: 1 x DC Jack (Black); CE750AR: 1 x DC Jack (Black) |
| Connectors — Unit To Unit | CE750AL: 1 x RJ-45 Female (Black); CE750AR: 1 x RJ-45 Female (Black) |
| LEDs — Remote | CE750AL: 1 (Green); CE750AR: 1 (Green) |
| LEDs — Link | CE750AL: N/A; CE750AR: 1 (Green) |
| LEDs — Local | CE750AL: 1 (Green); CE750AR: N/A |
| LEDs — Picture Compensation | CE750AL: N/A; CE750AR: 1 (Orange) |
| Pushbuttons — Operating Mode Selection | CE750AL: 1 x Pushbutton; CE750AR: N/A |
| Pushbuttons — Picture Compensation | CE750AL: N/A; CE750AR: 2 x Pushbuttons |
| Emulation — Keyboard / Mouse | CE750AL: USB; CE750AR: USB |
| Video | CE750AL: 1920×1200@60Hz at 30m; 1600×1200@60Hz at 150m; 1280×1024@60Hz at 200m; CE750AR: 1920×1200@60Hz at 30m; 1600×1200@60Hz at 150m; 1280×1024@60Hz at 200m |
| Power Consumption | CE750AL: DC5.3V:2.44W:16BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.; CE750AR: DC5.3V:3.27W:20BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental — Operating Temperature | CE750AL: 0-50˚C; CE750AR: 0-50˚C |
| Environmental — Storage Temperature | CE750AL: -20-60˚C; CE750AR: -20-60˚C |
| Environmental — Humidity | CE750AL: 0-80% RH, Non-condensing; CE750AR: 0-80% RH, Non-condensing |
| Physical Properties — Housing | CE750AL: Metal; CE750AR: Metal |
| Physical Properties — Weight | CE750AL: 0.47 kg ( 1.04 lb ); CE750AR: 0.47 kg ( 1.04 lb ) |
| Physical Properties — Dimensions (L x W x H) | CE750AL: 20.20 x 8.63 x 2.50 cm ; (7.95 x 3.4 x 0.98 in.); CE750AR: 20.20 x 8.51 x 2.50 cm ; (7.95 x 3.35 x 0.98 in.) |

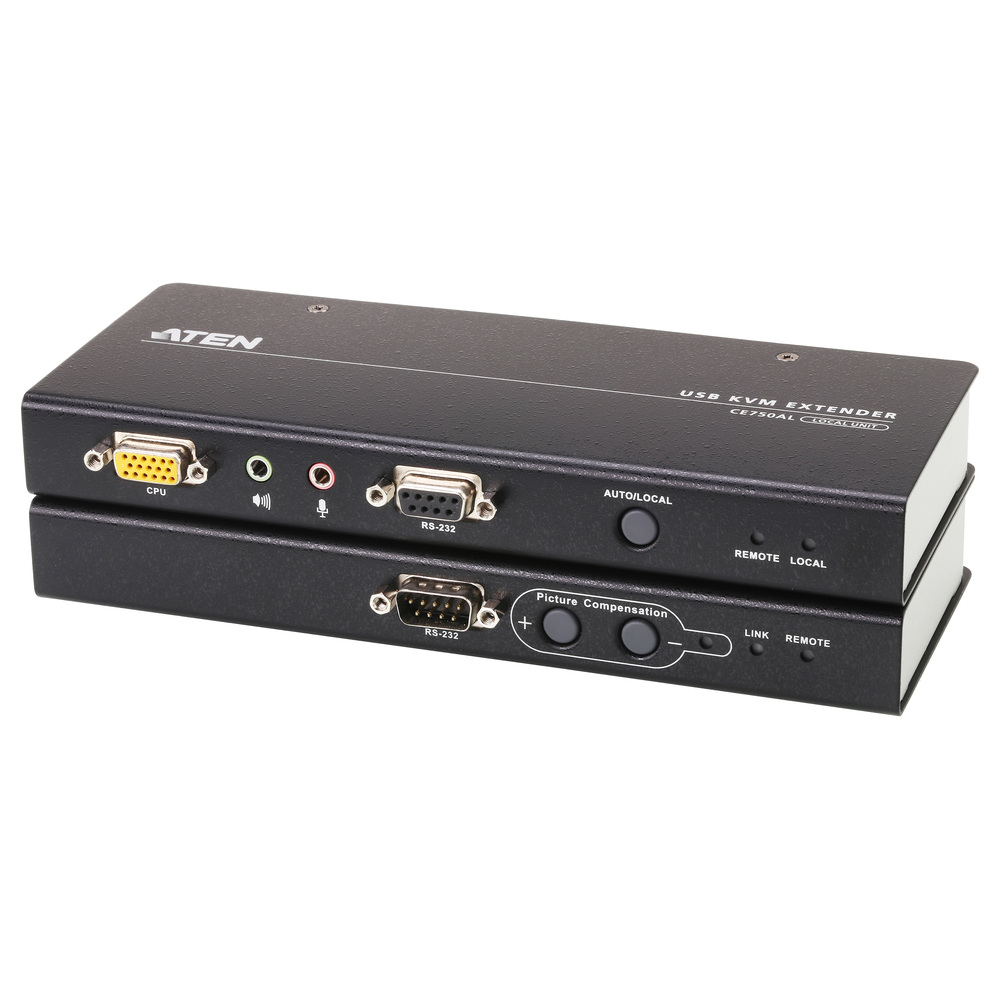

| Supplied accessories | 1x CE750AL USB KVM Extender (Local Unit); 1x CE750AR USB KVM Extender (Remote Unit); 1x Custom KVM Cable (VGA, USB, Audio; 1.8 m); 2x Power Adapters; 1x Mounting Kit; 1x User Instructions |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Place the operator console up to 200 m from the computer.
- Carry supported KVM signals over a single Cat 5e link.
- Use the supplied local and remote units as a matched pair.
- Adjust the installation to the documented video and distance limits.
- Keep the computer in an equipment area while retaining console access.
Product Information
Move a compatible computer console up to 200 m away using the local and remote units with a suitable Cat 5e cable. Keeping the computer in a rack or secure equipment area can free the operator position from equipment noise and clutter. Select the cable route and video mode together, since the supported resolution is tied to the link distance.
Resolution decreases with distance. Widescreen EDID comes from the local display connection or an optional ATEN EDID emulator. USB connections are for keyboard and mouse use. The inter-unit Cat 5e cable is not listed in the supplied package and must be purchased separately. This is a dedicated KVM link, not an Ethernet network connection.
Included: 1x CE750AL USB KVM Extender (Local Unit); 1x CE750AR USB KVM Extender (Remote Unit); 1x Custom KVM Cable (VGA, USB, Audio; 1.8 m); 2x Power Adapters; 1x Mounting Kit; 1x User Instructions.
