Specifications
| Brand headquarters | ATEN — Taiwan |
|---|---|
| Model | CL1000N |
| Computer Connections — Direct | 1 |
| Connectors — KVM Ports | 1 x SPHD Female (Yellow) |
| Connectors — Power | 1 x IEC 60320/C14 |
| Switches — Reset | N/A |
| Switches — Power | N/A |
| Switches — LCD Control | 4 x Pushbutton |
| Switches — LCD Power | 1 x LED Pushbutton |
| LEDs — Power | 1 x KVM Console (Dark Green); 1 x LCD (Orange) |
| LEDs — Lock | 1 x Num Lock (Green); 1 x Caps Lock (Green); 1 x Scroll Lock (Green) |
| LEDs — LED Illumination Light | 1 x LED Illumination Light |
| Panel Spec — LCD Module | 19″ TFT-LCD |
| Panel Spec — Resolution | 1280 x 1024 @ 75 Hz |
| Panel Spec — Response time | 5 ms |
| Panel Spec — Viewing Angle | 170° (H), 160° (V) |
| Panel Spec — Pixel Pitch | 0.294 mm x 0.294 mm |
| Panel Spec — Support Color | 16.7M colors |
| Panel Spec — Contrast Ratio | 1000:1 |
| Panel Spec — Luminance | 250 cd/m² |
| Input Video Resolution | up to 1920 x 1200 @ 60Hz; 1280 x 1024 @ 75 Hz, DDC2B |
| Emulation — Keyboard / Mouse | PS/2, USB(via 2L-520xUP cables) |
| Maximum Input Power Rating | 100-240 VAC; 50-60 Hz; 1A |
| Power Consumption | AC110V:29.2W:137BTU/h; AC220V:29.3W:137BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental — Operating Temperature | 0-50˚C |
| Environmental — Storage Temperature | -20-60˚C |
| Environmental — Humidity | 0-80% RH, Non-condensing |
| Physical Properties — Housing | Metal+Plastic |
| Physical Properties — Rail Type | Single Rail |
| Physical Properties — Weight | 11.06 kg ( 24.36 lb ) |
| Physical Properties — Dimensions (L x W x H) | 48.30 x 58.52 x 4.40 cm ; (19.02 x 23.04 x 1.73 in.) |
| Supplied accessories | 1x CL1000M or CL1000N with Standard Rack Mount Kit; 1x Custom KVM Cable (VGA, USB; 1.8m/6ft); 1x Power Cord; 1x User Instructions |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Keep the monitor, keyboard and touchpad together in one rack drawer.
- Save rack space with the 1U single rail housing.
- View local system output on the integrated 19-inch panel.
- Adjust the screen angle for a comfortable service position.
- Connect to an existing compatible VGA KVM installation.
Product Information

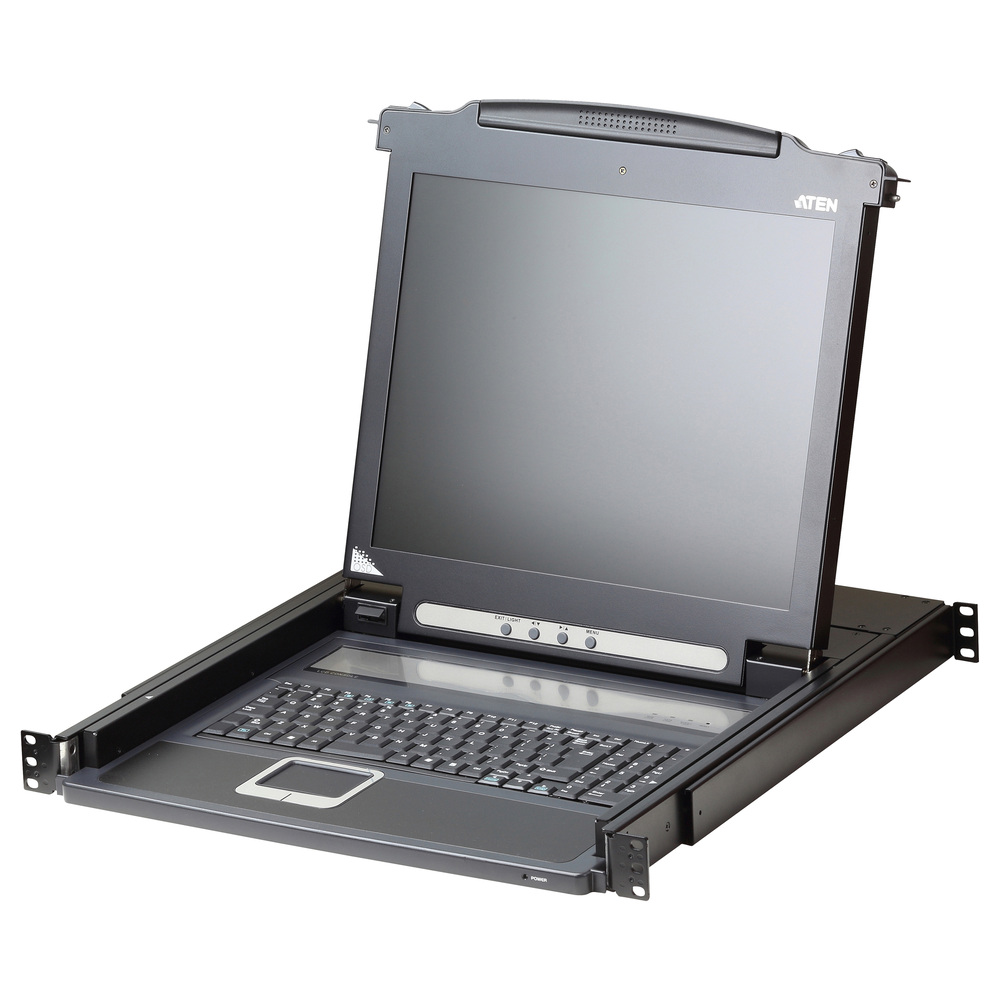

Place a dedicated 19-inch monitor, keyboard and touchpad in a sliding rack drawer for on-site administration. The console can connect to a compatible computer or the console port of a supported KVM switch, giving a compact operating position in a server room or equipment cabinet. Sliding it back after use releases working space in front of the rack.
This is a single console, not a multi-port computer switch. Higher accepted input timings are scaled to the panel resolution. Confirm rack depth and connection compatibility; optional installation kits are separate.
Included: 1x CL1000M or CL1000N with Standard Rack Mount Kit; 1x Custom KVM Cable (VGA, USB; 1.8m/6ft); 1x Power Cord; 1x User Instructions.
