Specifications
| Brand headquarters | ATEN — Taiwan |
|---|---|
| Model | CE920 |
| Connectors — Console Ports | CE920L: N/A; CE920R: 1 x DisplayPort female; 3 x USB Type-A female; microphone and speaker mini-stereo jacks; 1 x RJ-45 Ethernet port functional only on Ethernet-capable variant |
| Connectors — KVM Ports | CE920L: 1 x DisplayPort female; 1 x USB Type-B female; microphone and speaker mini-stereo jacks; 1 x RJ-45 Ethernet port functional only on Ethernet-capable variant; CE920R: N/A |
| Connectors — RS-232 | CE920L: 1 x DB-9 female; CE920R: 1 x DB-9 male |
| Connectors — Power | CE920L: 1 x locking DC jack; CE920R: 1 x locking DC jack |
| Connectors — Unit To Unit | CE920L: 1 x RJ-45 female; CE920R: 1 x RJ-45 female |
| LEDs — Power | CE920L: 1 (green); CE920R: 1 (green) |
| LEDs — Link | CE920L: 1 (orange); CE920R: 1 (orange) |
| LEDs — Video Output | CE920L: N/A; CE920R: 1 (orange) |
| Switches — Long Reach Mode | CE920L: 1 x slide switch; CE920R: 1 x slide switch |
| Switches — Firmware Upgrade | CE920L: 1 x slide switch; CE920R: 1 x slide switch |
| Pushbuttons — Wakeup | CE920L: N/A; CE920R: 1 x pushbutton |
| Video | CE920L: 4096 x 2160 or 3840 x 2160 @ 30Hz, 4:4:4, up to 90 m over Cat 5e or 100 m over Cat 6/6a; 1080p at 100 m in standard mode; CE920R: 4096 x 2160 or 3840 x 2160 @ 30Hz, 4:4:4, up to 90 m over Cat 5e or 100 m over Cat 6/6a; 1080p at 100 m in standard mode |
| Power Consumption | CE920L: DC5V:3.99W:19BTU; CE920R: DC5V:6.74W:47BTU |
| Pushbuttons — Power Measurement Note | Watts indicate typical consumption without external loading; the manufacturer lists the fully loaded heat-output figures in BTU. |
| Environmental — Operating Temperature | CE920L: 0–40°C; CE920R: 0–40°C |
| Environmental — Storage Temperature | CE920L: -20–60°C; CE920R: -20–60°C |
| Environmental — Humidity | CE920L: 0–80% RH, non-condensing; CE920R: 0–80% RH, non-condensing |
| Physical Properties — Housing | CE920L: Metal; CE920R: Metal |
| Physical Properties — Weight | CE920L: 0.63 kg; CE920R: 0.64 kg |
| Physical Properties — Dimensions (L x W x H) | CE920L: 18.20 x 12.19 x 2.87 cm; CE920R: 18.20 x 12.19 x 2.87 cm |
| Physical Properties — Dimensions Note | ATEN expresses the listed dimensions as L x W x H; for some rack products this corresponds to standard W x D x H. |
| Supplied accessories | 1 x CE920L local unit; 1 x CE920R remote unit; 1 x microphone cable; 1 x speaker cable; 1 x USB Type-A to Type-B cable; 1 x DisplayPort cable; 2 x mounting kits; 2 x power adapters; 1 x user instructions |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Extend supported DisplayPort video and console signals over one link.
- Deliver 4K at 30 Hz over up to 100 m with Cat 6/6a.
- Connect keyboard, mouse and compatible USB peripherals at the remote unit.
- Carry stereo audio and RS-232 alongside the console signals.
- Use EDID buffering to support predictable display initialization.

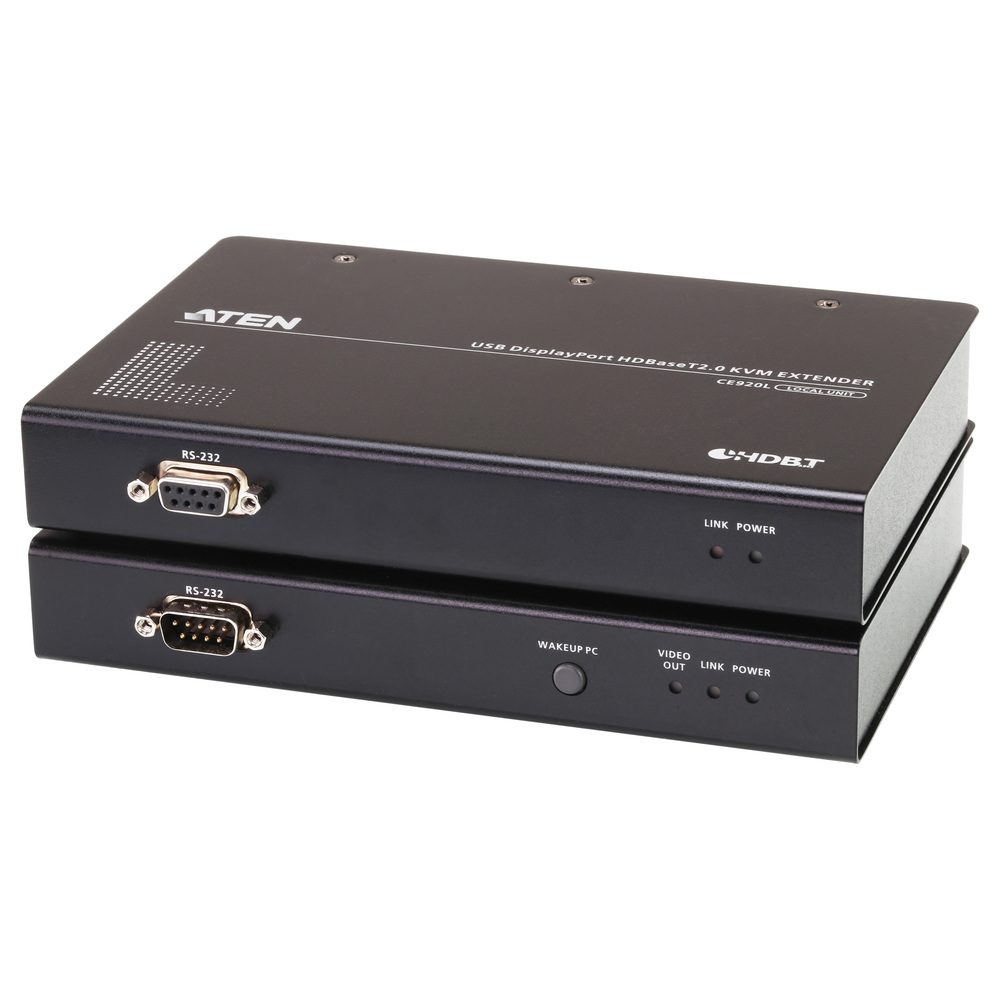

Product Information
Separate a DisplayPort computer from its operating position using a matched local/remote HDBaseT extender pair. Video, supported USB devices, audio and serial control travel over the dedicated cable link. This suits control desks and equipment rooms where the computer needs to remain away from the operator. Long Reach mode supports 1080p over up to 150 m under the documented cabling conditions.
Cat 5e limits the specified 4K link to 90 m. USB is full-speed, not a claim of 480 Mbps transfer. Ethernet support differs between -AT and -ATA variants; confirm the exact supplied suffix. The inter-unit cable is separate.
Included: 1 x CE920L local unit; 1 x CE920R remote unit; 1 x microphone cable; 1 x speaker cable; 1 x USB Type-A to Type-B cable; 1 x DisplayPort cable; 2 x mounting kits; 2 x power adapters; 1 x user instructions.
