Specifications
| Brand headquarters | ATEN — Taiwan |
|---|---|
| Model | CE-100 |
| Connectors — Console Ports | CE100L: N/A; CE100R: 2 x USB Type-A female; 1 x HDB-15 female |
| Connectors — KVM Ports | CE100L: 1 x USB Type-B female; 1 x HDB-15 male; CE100R: N/A |
| Connectors — Power | CE100L: 1 x DC jack; CE100R: 1 x DC jack |
| Connectors — Unit To Unit | CE100L: 1 x RJ-45 female; CE100R: 1 x RJ-45 female |
| Connectors — Switches | CE100L: N/A; CE100R: 1 x knob |
| LEDs — Link | CE100L: 1 (blue); CE100R: 1 (blue) |
| LEDs — Power | CE100L: 1 (green); CE100R: 1 (green) |
| LEDs — Video | CE100L: 1920 x 1200 @ 60Hz at 30 m; 1280 x 1024 @ 60Hz at 100 m; CE100R: 1920 x 1200 @ 60Hz at 30 m; 1280 x 1024 @ 60Hz at 100 m |
| LEDs — Power Consumption | CE100L: DC5V:0.68W:7BTU/h; CE100R: DC5V:0.99W:9BTU/h |
| LEDs — Power Measurement Note | Watts indicate typical consumption without external loading; BTU/h indicates fully loaded consumption. |
| Environmental — Operating Temperature | CE100L: 0–50°C; CE100R: 0–50°C |
| Environmental — Storage Temperature | CE100L: -20–60°C; CE100R: -20–60°C |
| Environmental — Humidity | CE100L: 0–80% RH, non-condensing; CE100R: 0–80% RH, non-condensing |
| Physical Properties — Housing | CE100L: Metal; CE100R: Metal |
| Physical Properties — Weight | CE100L: 0.17 kg; CE100R: 0.17 kg |
| Physical Properties — Dimensions (L x W x H) | CE100L: 9.10 x 5.74 x 2.40 cm; CE100R: 9.10 x 5.74 x 2.40 cm |
| Supplied accessories | 1 x CE100L local unit; 1 x CE100R remote unit; 1 x VGA/USB KVM cable, 1.5 m; 2 x grounding wires; 1 x remote-unit power adapter; 1 x mounting kit; 1 x user guide |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Place the operator console up to 100 m from the computer.
- Carry supported KVM signals over a single Cat 5e link.
- Use the supplied local and remote units as a matched pair.
- Adjust the installation to the documented video and distance limits.
- Keep the computer in an equipment area while retaining console access.
Product Information

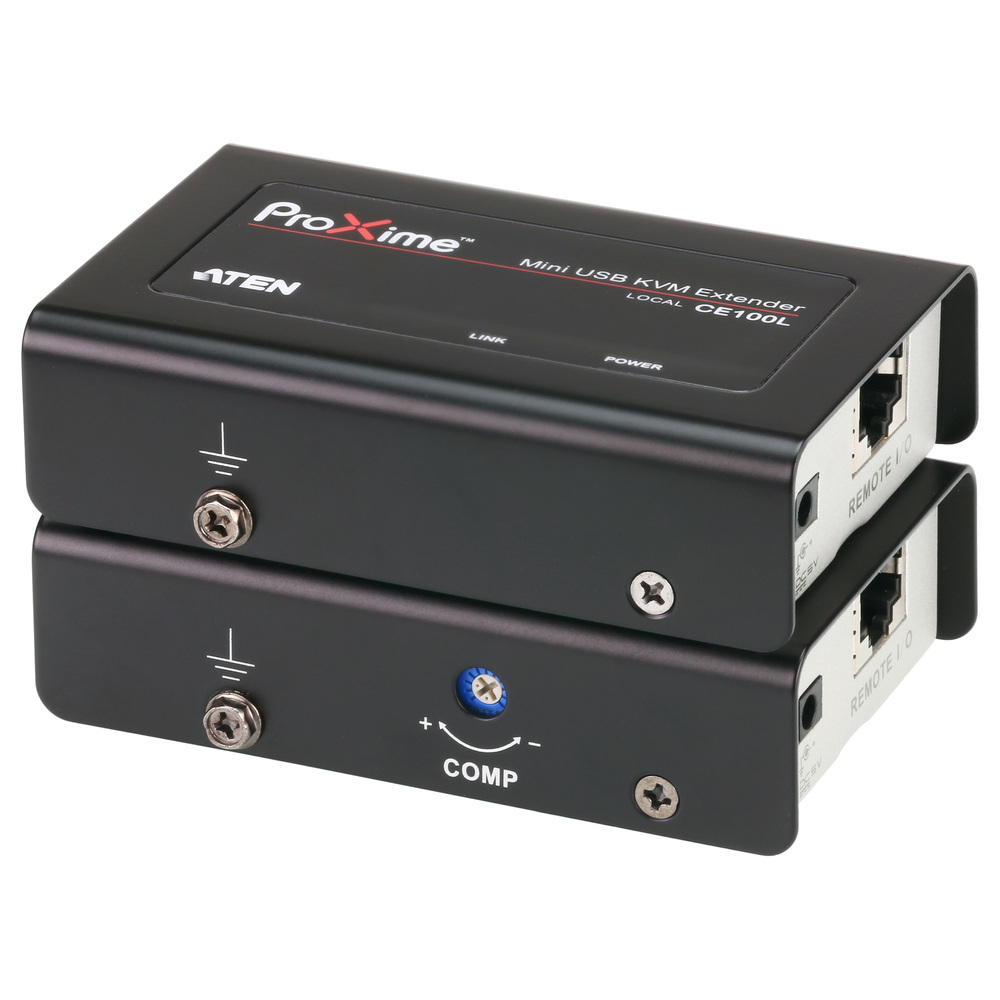

Move a compatible computer console up to 100 m away using the local and remote units with a suitable Cat 5e cable. Keeping the computer in a rack or secure equipment area can free the operator position from equipment noise and clutter. Select the cable route and video mode together, since the supported resolution is tied to the link distance.
The local unit uses USB bus power and the remote unit uses the supplied adapter. This pair provides a remote console; it is not a multi-computer switch. The inter-unit Cat 5e cable is not listed in the supplied package and must be purchased separately. This is a dedicated KVM link, not an Ethernet network connection.
Included: 1 x CE100L local unit; 1 x CE100R remote unit; 1 x VGA/USB KVM cable, 1.5 m; 2 x grounding wires; 1 x remote-unit power adapter; 1 x mounting kit; 1 x user guide.
