Specifications
| Specification | Details |
|---|---|
| Brand | Huawei |
| Brand Origin | China |
| Product Series | eKitEngine S110 Series |
| Model | S110-24LP2SR |
| Part Number | 98012198 |
| Product Type | Gigabit PoE+ Unmanaged Ethernet Switch |
| Management Type | Unmanaged |
| RJ45 Ports | 24 × 10/100/1000BASE-T |
| PoE Ports | 24 × Gigabit PoE+ |
| SFP Ports | 2 × GE SFP |
| Total Physical Network Ports | 26 |
| PoE Support | Yes – PoE+ |
| Maximum PoE Budget | 124 W |
| Switching Capacity | 52 Gbit/s |
| Packet Forwarding Rate | 38.69 Mpps |
| Chassis Material | Metal |
| Power Supply | Built-in AC |
| Input Voltage Range | 90–300 V AC, 47–63 Hz |
| Static Power Consumption | 13 W |
| Typical Power Consumption | 24 W |
| Maximum Power Consumption Without PoE | 24 W |
| Maximum Power Consumption at Full PoE Load | 165 W |
| PoE Portion at Full Load | 124 W |
| Cooling System | Fanless / Natural Heat Dissipation |
| Dimensions (H × W × D) | 43.6 × 442 × 260 mm |
| Maximum Depth Including Protruding Parts | 267 mm |
| Weight | Approx. 3.2 kg |
| Installation | Rack Mount / Desktop / Wall Mount |
| Operating Temperature | 0°C to 40°C at 0–1800 m altitude |
| Operating Humidity | 5%–95% RH, Non-Condensing |
| Power Surge Protection | ±6 kV Differential Mode / ±6 kV Common Mode |
The electrical, physical, environmental, and PoE specifications above are based on Huawei’s current specification page for the S110-24LP2SR.
24-Port Gigabit PoE+ Connectivity

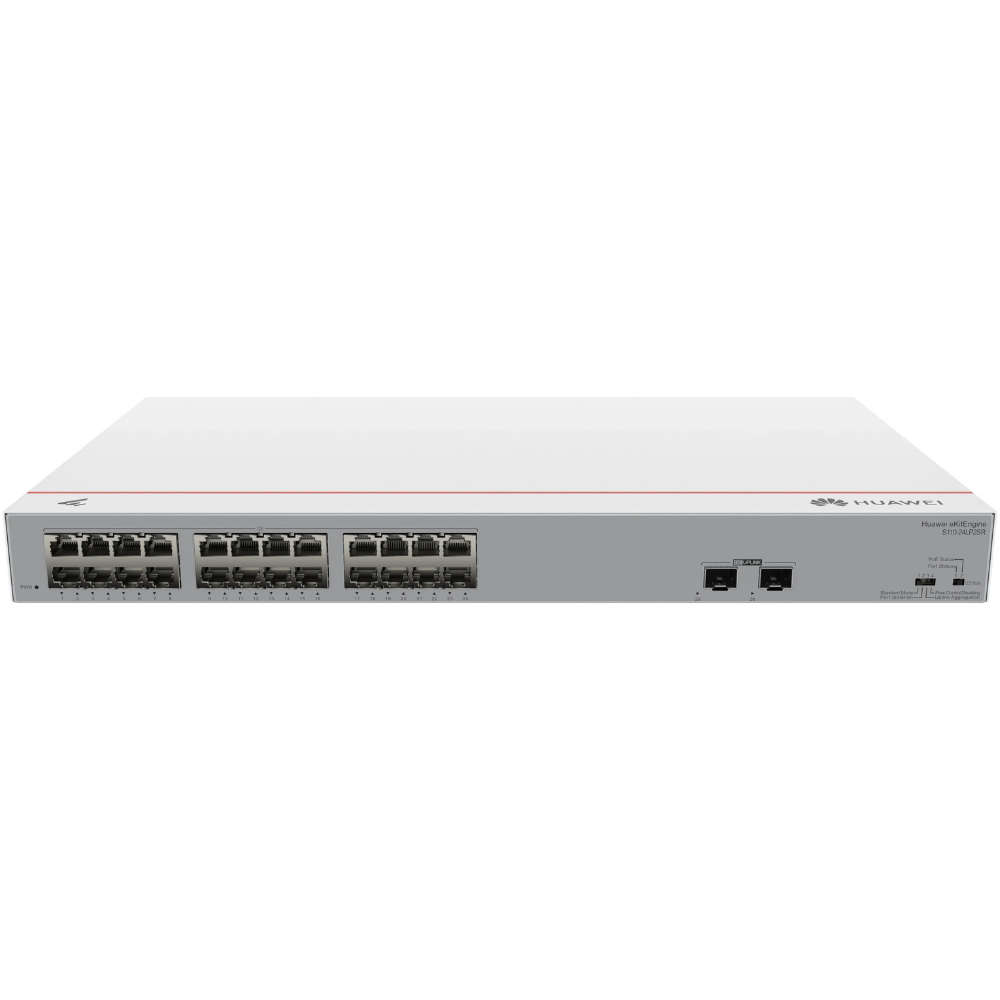

The Huawei S110-24LP2SR provides 24 Gigabit Ethernet ports with PoE+ support, allowing compatible devices to receive both network data and electrical power through a single Ethernet cable.
This makes the switch particularly suitable for connecting:
- IP CCTV Cameras
- Wireless Access Points
- VoIP Phones
- PoE Network Devices
- Desktop Computers
- Network Video Recorders
- Network Storage Devices
- Business Network Equipment
Using PoE+ can simplify installations by reducing the need for separate electrical power connections close to each compatible powered device.
124W PoE Power Budget
The S110-24LP2SR provides a maximum PoE power budget of 124 W across its PoE-capable Ethernet ports.
The actual number of PoE devices that can be powered simultaneously depends on the power requirement of each connected device.
For example, lower-power IP cameras may allow more devices to operate within the available PoE budget than high-power wireless access points or other PoE+ equipment.
Dual GE SFP Fiber Uplink Ports
The switch includes 2 × GE SFP ports for optical network uplinks.
These SFP interfaces are suitable for:
- Connecting network switches between floors
- Fiber connections between network cabinets
- Commercial building network backbones
- Long-distance LAN extensions
- Connecting access switches to central network infrastructure
- Fiber-based CCTV network backbones
Compatible SFP transceiver modules should be selected according to the required fiber type, wavelength, connector, and transmission distance.
High-Speed Gigabit Performance
With a 52 Gbit/s switching capacity and 38.69 Mpps packet forwarding rate, the S110-24LP2SR is designed to efficiently handle traffic from multiple simultaneously connected Gigabit devices.
This makes it suitable for applications such as video surveillance traffic, office data transfer, wireless networking, internet access, file sharing, and general commercial networking.
Plug-and-Play Unmanaged Operation
The Huawei eKitEngine S110-24LP2SR is an unmanaged switch, making it suitable for installations where straightforward deployment is required.
It does not require the extensive configuration associated with fully managed enterprise switches, making it particularly convenient for CCTV, office, retail, and small-to-medium business networks.
Fanless Quiet Operation
Huawei specifies natural heat dissipation for the S110-24LP2SR, meaning the switch operates without relying on an internal cooling fan.
The fanless design helps provide quiet operation and reduces mechanical components, making it suitable for offices, retail locations, classrooms, and other noise-sensitive environments.
Built-In AC Power Supply
The S110-24LP2SR includes a built-in AC power supply supporting an input range of 90–300 V AC at 47–63 Hz.
At full PoE load, Huawei specifies maximum total power consumption of 165 W, of which up to 124 W is available for PoE devices. Without PoE load, maximum switch power consumption is approximately 24 W.
Flexible Installation
The switch supports:
- 19-inch Rack Mounting
- Desktop Installation
- Wall Mounting
Its metal chassis measures approximately 43.6 × 442 × 260 mm, with a weight of approximately 3.2 kg excluding packaging.
Suitable Applications
The Huawei eKitEngine S110-24LP2SR is ideal for:
- CCTV and IP Surveillance Networks
- Business Offices
- Commercial Buildings
- Retail Stores
- Schools and Educational Institutions
- Hotels
- Wireless Access Point Networks
- VoIP Networks
- Small and Medium-Sized Businesses
- Multi-Floor Network Infrastructure
- Fiber-Backbone Networks
- Network Cabinet Installations
Important Note
The Huawei eKitEngine S110-24LP2SR is a PoE+ unmanaged switch with a total maximum PoE budget of 124 W. The available PoE budget is shared among connected powered devices, so the total power requirement of all connected PoE equipment should be calculated before deployment.
