Specifications
| Brand | Level One |
|---|---|
| Brand headquarters | Germany |
| Model | GEP-1051 |
| Product type | 10-Port Gigabit PoE Web Smart Managed Switch |
| Port configuration | 8 × 10/100/1000Mbps RJ45 PoE+ ports and 2 × 100/1000Mbps SFP slots |
| Concurrent network ports | 10 |
| Switching capacity | 20Gbps |
| PoE | 8 PoE outputs; IEEE 802.3af/at; 70W total budget; up to 30W per port, subject to the shared budget |
| MAC address table | 8K entries |
| Jumbo frames | 10KB |
| Packet buffer | 4.1 Mbits |
| VLAN | IEEE 802.1Q VLAN |
| QoS | Eight priority queues, rate limiting, SPQ/WRR/hybrid scheduling, port-based priority and IPv4/IPv6 DSCP |
| Link aggregation | IEEE 802.3ad LACP |
| Network resilience | STP, RSTP, MSTP and loopback detection |
| Multicast | IGMP v2/v3 Snooping, filtering, querier and immediate leave; MLD Snooping |
| Management | Web, SNMP and IPv6 management; Telnet and Syslog |
| Diagnostics | IPv6 ping and traceroute |
| Flash memory | 16 MB |
| RAM size | 128 MB |
| Power supply | AC power |
| Power consumption | 80W |
| Acoustic noise (dB) | 0 dB (A) |
| Dimensions (W x D x H) | 294 x 180 x 44 mm |
| Operating temperature | 0°C ~ 45°C |
| Operating humidity | 0% RH ~ 90% RH |
| Storage temperature | -40°C ~ 70°C |
| Storage humidity | 10% RH ~ 90% RH |
| Mounting | 19″ rack mount |
| Included accessories | GEP-1051; Power Cord; 19″ Rack Mount Kit; Resource CD (User Manual, QIG); Quick Installation Guide |
| Cooling | Fanless |
| Product weight | 2kg (net product weight) |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Connect more equipment with 10 concurrent network ports and 20Gbps switching capacity for busy workgroups.
- Connect to fibre backbones through dedicated SFP slots while keeping the documented port speeds and transceiver compatibility in view.
- Power compatible cameras, access points and IP phones over Ethernet using a 70W shared PoE budget; size the connected load to stay within port and total limits.
- Control traffic with VLAN, eight-queue QoS, LACP, STP/RSTP/MSTP, IGMP/MLD Snooping and IPv4/IPv6 management to suit your office or surveillance network.
- Keep workspaces quiet with a fanless design.
Product Information

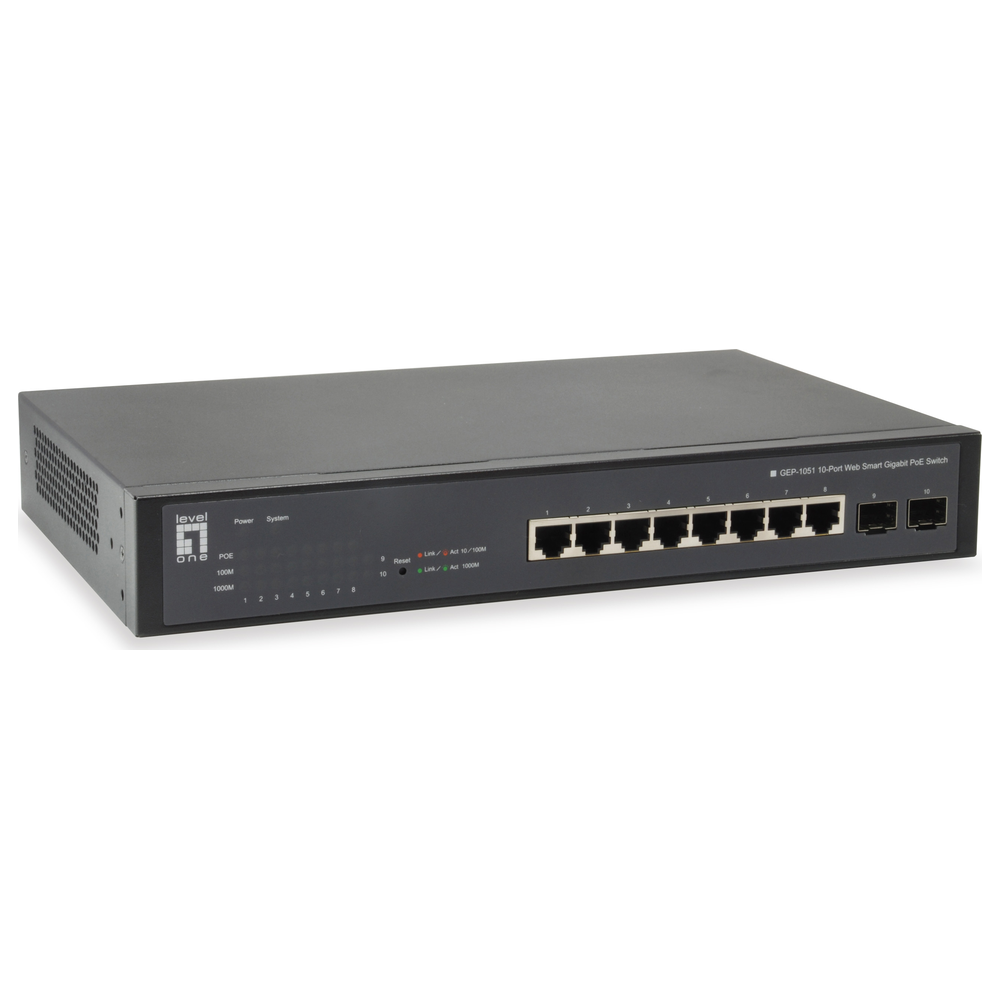

The Level One (Germany) 10-Port Gigabit PoE Web Smart Managed Switch with 2 SFP Slots – GEP-1051 brings IP surveillance, wireless access points and business telephony together on a single Gigabit switching platform. Its 10-port configuration gives installers a clear basis for planning endpoint connections and fibre uplinks. The management features let administrators organise traffic and monitor the network as it grows.
VLAN, eight-queue QoS, LACP, STP/RSTP/MSTP, IGMP/MLD Snooping and IPv4/IPv6 management are supported. VLANs can separate network traffic and QoS can prioritise time-sensitive services when correctly configured. Select optical modules that match the documented slot speed, fibre type, distance and far-end equipment. Transceivers and fibre cables are optional and are not listed as supplied accessories.
The 70W PoE budget is shared across all powered ports; the per-port maximum does not mean every port can supply that maximum simultaneously. Check each powered device’s standard and maximum demand before installation. Fanless cooling suits quiet spaces, but ventilation openings must remain clear. Use the documented power input, mounting method and operating environment. The supplied items are listed in the specifications; additional cabling, optical modules and other accessories should be selected separately for the installation.
Complete your network connections
Match cable performance to the installation and check the exact switch interfaces before choosing accessories.
