Specifications
| Brand | Level One |
|---|---|
| Brand headquarters | Germany |
| Model | GEP-2841 |
| Product type | 28-Port Gigabit PoE Web Smart Managed Switch |
| Port configuration | 24 × 10/100/1000Mbps RJ45 PoE+ ports, 2 × 10/100/1000Mbps RJ45 uplink ports and 2 × 1000Mbps SFP slots |
| Concurrent network ports | 28 |
| Switching capacity | 56Gbps |
| PoE | 24 outputs; IEEE 802.3af/at/bt; 375W shared budget; ports 1–2 up to 90W; remaining PoE ports up to 30W |
| MAC address table | 8 K entries |
| Jumbo frames | 9KB |
| VLAN | Static and port-based VLAN; port isolation |
| QoS | Port-based priority, DSCP remapping, queue selection and packet scheduling |
| Multicast | IGMP enable/disable control |
| Link aggregation | Trunk group configuration |
| Diagnostics | Port statistics, port mirroring, loop detection/prevention |
| Management | Web HTTP, configuration import/export, software upgrade and PoE port management |
| Security | Static MAC controls, storm control and DHCP control |
| Flash memory | 8 MB |
| RAM size | 256 K |
| Power supply | 100-240VAC, 50-60Hz, 4.8A |
| Power consumption | 25W (without PoE); 400W (full loading PoE on) |
| Dimensions (W x D x H) | 440 x 220 x 45 mm |
| Operating temperature | -10°C ~ 65°C |
| Operating humidity | 5% RH ~ 90% RH |
| Storage temperature | -40°C ~ 75°C |
| Storage humidity | 5% RH ~ 95% RH |
| Mounting | 19″ rack mount, Desk mount |
| Included accessories | GEP-2841; Power Cord; 19″ Rack Mount Kit; Quick Installation Guide; Declaration of Conformity |
| Cooling | Fan-cooled |
| Product weight | 2.712kg (net product weight) |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Connect more equipment with 28 concurrent network ports and 56Gbps switching capacity for busy workgroups.
- Connect to fibre backbones through dedicated SFP slots while keeping the documented port speeds and transceiver compatibility in view.
- Power compatible cameras, access points and IP phones over Ethernet using a 375W shared PoE budget; size the connected load to stay within port and total limits.
- Control traffic with VLAN, QoS, IGMP control, trunk groups, port mirroring, bandwidth control, loop detection and PoE port management to suit your office or surveillance network.
- Deploy in a ventilated network cabinet or equipment area using the documented mounting arrangement.
Product Information

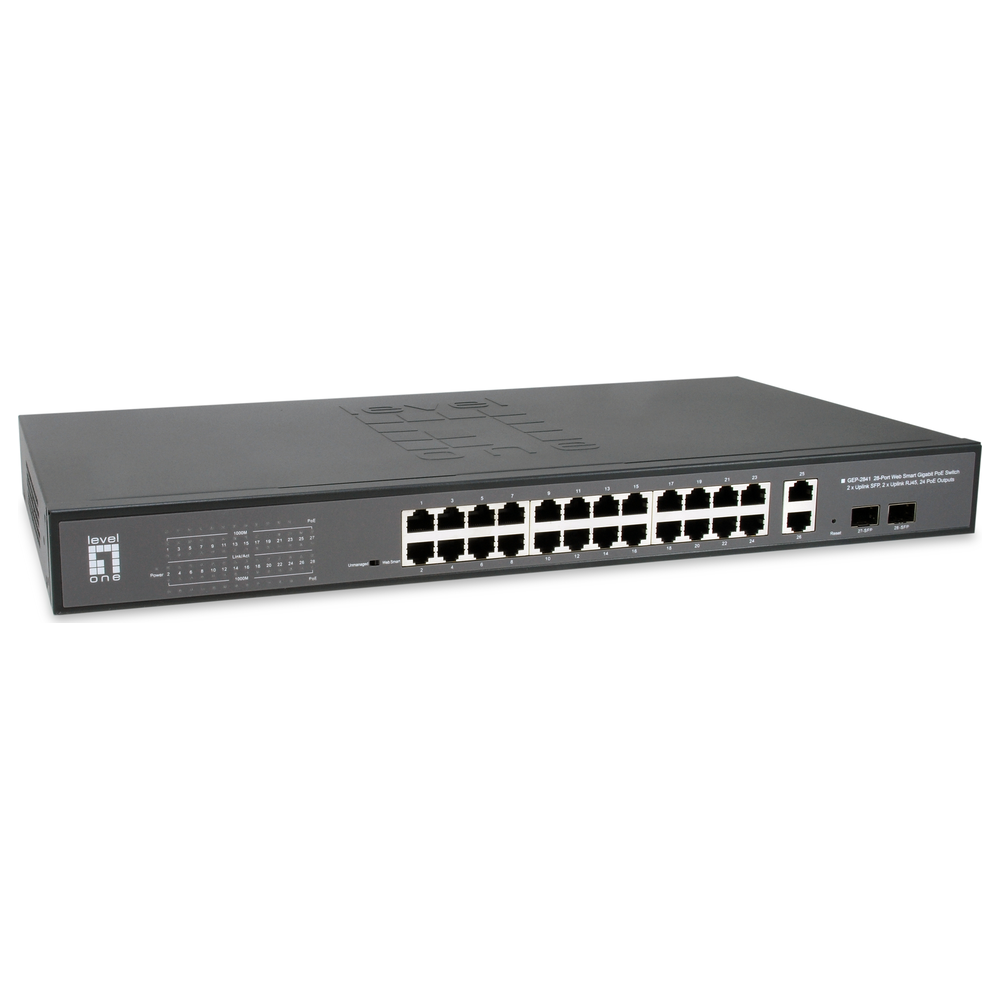

The Level One (Germany) 28-Port Gigabit PoE Web Smart Managed Switch with 2 SFP Slots – GEP-2841 brings IP surveillance, wireless access points and business telephony together on a single Gigabit switching platform. Its 28-port configuration gives installers a clear basis for planning endpoint connections and fibre uplinks. The management features let administrators organise traffic and monitor the network as it grows.
VLAN, QoS, IGMP control, trunk groups, port mirroring, bandwidth control, loop detection and PoE port management are supported. VLANs can separate network traffic and QoS can prioritise time-sensitive services when correctly configured. Select optical modules that match the documented slot speed, fibre type, distance and far-end equipment. Transceivers and fibre cables are optional and are not listed as supplied accessories.
The 375W PoE budget is shared across all powered ports; the per-port maximum does not mean every port can supply that maximum simultaneously. Check each powered device’s standard and maximum demand before installation. Leave ventilation clearance around the chassis and install it in an appropriately ventilated location. Use the documented power input, mounting method and operating environment. The supplied items are listed in the specifications; additional cabling, optical modules and other accessories should be selected separately for the installation.
Complete your network connections
Match cable performance to the installation and check the exact switch interfaces before choosing accessories.
