Specifications
| Brand | Level One |
|---|---|
| Brand headquarters | Germany |
| Model | GES-2108P |
| Product type | 8-Port Gigabit PoE Smart Lite Managed Switch |
| Port configuration | 8 × 10/100/1000Mbps RJ45 PoE+ ports |
| Concurrent network ports | 8 |
| Switching capacity | 16Gbps |
| PoE | 8 PoE outputs; IEEE 802.3af/at; 112.8W total budget; up to 30W per port, subject to the shared budget |
| Series | HILBERT |
| MAC address table | 4 K entries |
| Jumbo frames | 9KB |
| Packet buffer | 1.5 Mbits |
| Packet forwarding rate | 11.904 Mpps |
| VLAN | Up to 32 VLANs from 4096 VLAN IDs; MTU, port-based and IEEE 802.1Q VLAN |
| QoS | Port-based, IEEE 802.1p and DSCP priorities; four priority queues; rate limiting |
| Multicast | IGMP Snooping |
| Link aggregation | Static link aggregation |
| Diagnostics and protection | Port mirroring, cable testing, storm control |
| Management | Web GUI; LevelOne IP Locator |
| Flash memory | 2 MB |
| Power supply | 54 VDC, 2.2A 118.8W |
| Power consumption | 120W (full loading/PoE on) |
| Acoustic noise (dB) | 0 dB (A) |
| Dimensions (W x D x H) | 160 x 95 x 29 mm |
| Operating temperature | 0°C ~ 45°C |
| Operating humidity | 10% RH ~ 90% RH |
| Storage temperature | -40°C ~ 70°C |
| Storage humidity | 5% RH ~ 95% RH |
| Mounting | Desk mount |
| Included accessories | GES-2108P; Power adapter with power cord; Quick Installation Guide ; Declaration of Conformity |
| Cooling | Fanless |
| Product weight | 0.4kg (net product weight) |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Connect more equipment with 8 concurrent network ports and 16Gbps switching capacity for busy workgroups.
- Power compatible cameras, access points and IP phones over Ethernet using a 112.8W shared PoE budget; size the connected load to stay within port and total limits.
- Keep everyday configuration straightforward with web-managed VLANs, QoS and diagnostic tools.
- Keep workspaces quiet with a fanless design.
- Check link and power status at the front panel to make routine connection checks faster.
Product Information

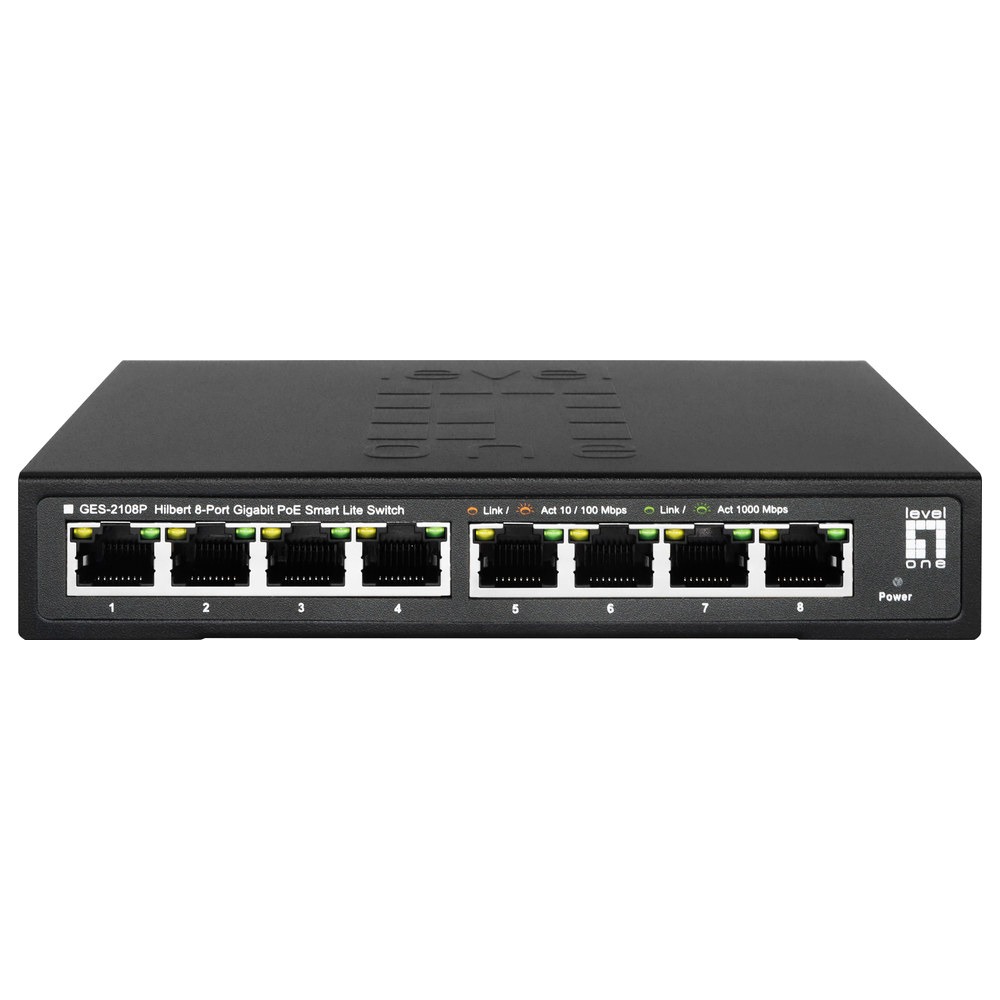

The Level One (Germany) Hilbert 8-Port Gigabit PoE Smart Lite Managed Switch – GES-2108P brings IP surveillance, wireless access points and business telephony together on a single Gigabit switching platform. Its 8-port configuration gives installers a clear basis for planning endpoint connections. The management features let administrators organise traffic and monitor the network as it grows.
VLAN, QoS, IGMP Snooping, static link aggregation, port mirroring, cable testing and storm control are supported. VLANs can separate network traffic and QoS can prioritise time-sensitive services when correctly configured.
The 112.8W PoE budget is shared across all powered ports; the per-port maximum does not mean every port can supply that maximum simultaneously. Check each powered device’s standard and maximum demand before installation. Fanless cooling suits quiet spaces, but ventilation openings must remain clear. Use the documented power input, mounting method and operating environment. The supplied items are listed in the specifications; additional cabling, optical modules and other accessories should be selected separately for the installation.
Complete your network connections
Match cable performance to the installation and check the exact switch interfaces before choosing accessories.
